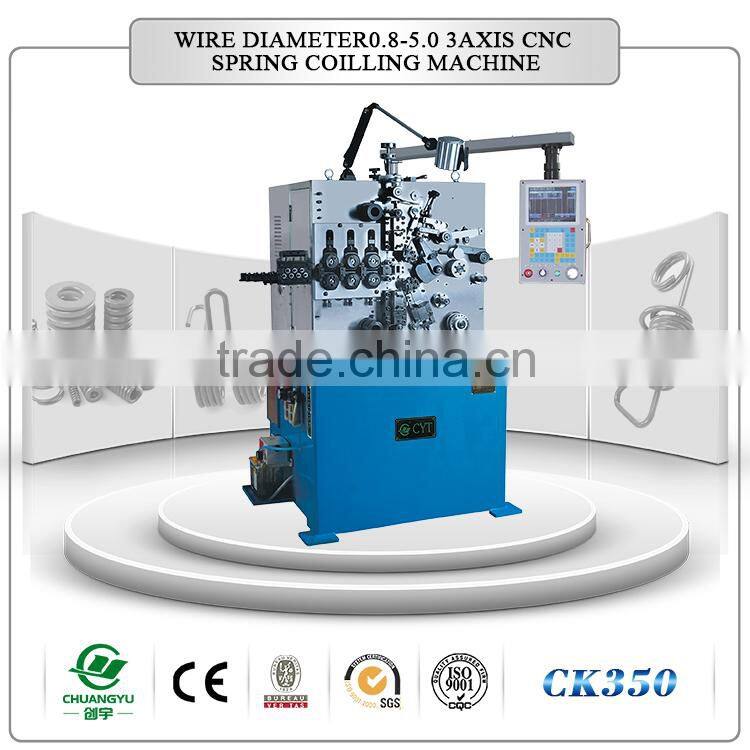

Chuangyu Automatic Mattress Spring Machine
Negotiable
/ Set
1 Set(Min. Order)
- NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Imported Motor Automatic Coil Spring Making Machine With Low Price and High Quality
-
CE Certified New Design Automatic Automatic Spring Machine Price
-
High Precision Automatic Cnc Spring Machine
-
CE Certified CNC Control Multifunction Automatic Spring Coiling Machine
-
High Speed Automatic Coil Machines for Making Springs
-
CE Certified CNC Automatic Wire Spring Coiling Machine for Make Many Kinds Springs
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chuangyu | |
| Model Number | CK350 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mattress spring machine1) Wire Diameter 0.8-5.0
2) 3 Axis
3) Dimensions 1800mm*1500mm*1850mm
| Model | CK350 |
| Wire Diameter(mm) | Φ0.8-Φ5.0 |
| Outside diameter(mm) | MaxΦ70 |
| Production Rate(pcs/min) | ≤200 |
| Feeding length(mm) | ±0.01±9999.99 |
| Wire Feed Speed | 0-127m/min |
| Cam Setting Value | ±0.1°-359.9° |
| Wire Feed Servo Motor | 5.5KW |
| Cam Servo Motor | 5.5KW |
| Pitch Servo Motor | 1.5KW |
| Power AC | 380V±10%.AC.V50HZ |
| Dimensions(L×W×H)(mm) | 1800×1500×1850 |
| Machine Weight | 1600KG |
+
| |
|
Zhejiang Shengzhou ChuangYu Machinery Co.,Ltd. covers an area of 68000 square meters, has 380 employee, and own development research center. The produce has the feature of "fast debugging, precise and accurate, stable and reliable, easy operation".
The machine is enjoyed by Tianjin JL Railway Transport Equipment Ltd., South Huiton Co.,Ltd., China Jianzhong Nuclear Fuel Co., Ltd., Inner Mongolia First Machinery Group Corporation and so on. Combined with social new technology, new material and new equipment constantly emerging, product update and specification extension, making the CNC spring machinery for higher precision, more complex spring and higher automation degree.
| Packaging | In plywood case or according to your request |
| Shipment | Within 4 weeks after receving your deposit |
- Can you send me some spring samples for checking?
- Sure. Before you place the order, samples can be sent to you for checking. What's more, overseas installation and the consequent training is available.
- What payment is acceptable?
- Your payment can be made via L/C,D/A,D/P,T/T,Western Union, Paypal. If you have other preference, please negotiate.
