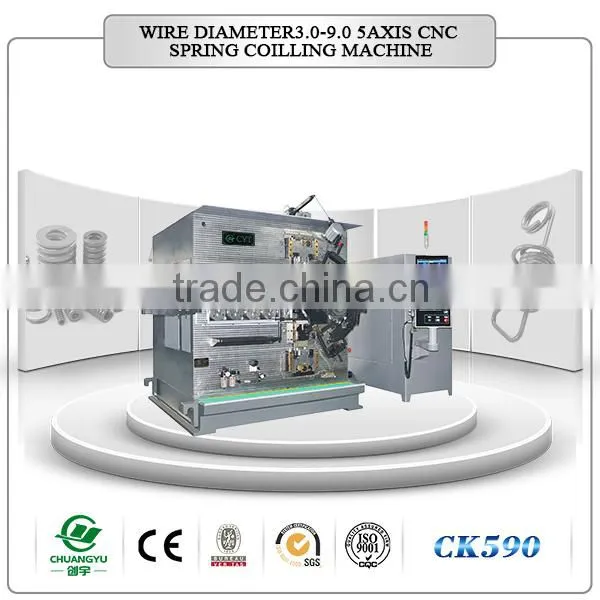

High speed Automatic coil machines for making springs
- 10 Set / Sets per Month
- NINGBO
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Chuangyu | Model Number: | CK590 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Model | CK590 |
Wire Diameter(mm) | Φ3.0-Φ9.0 |
Outside diameter(mm) | MaxΦ120 |
Production Rate(pcs/min) | ≤120 |
Feeding length(mm) | Limitless |
Wire Feed Speed | 70-140m/min |
Left or Right Winding Rate | 3 |
Wire Feed Cam | 5 |
Wire Feed Axis | 30KW |
Diameter Axis | 7KW |
Pitch Axis | 3.8KW |
Upper cutting Axis | 11KW |
Lower cutting Axis | 11KW |
Servo Motor | 62.8KW |
Dimensions(L×W×H)(mm) | 2218×1850×2300 |
Machine Weight | 7500KG |
+
Zhejiang Shengzhou ChuangYu Machinery Co.,Ltd. covers an area of 68000 square meters, has 380 employee, and own development research center. The produce has the feature of "fast debugging, precise and accurate, stable and reliable, easy operation".
The machine is enjoyed by Tianjin JL Railway Transport Equipment Ltd., South Huiton Co.,Ltd., China Jianzhong Nuclear Fuel Co., Ltd., Inner Mongolia First Machinery Group Corporation and so on. Combined with social new technology, new material and new equipment constantly emerging, product update and specification extension, making the CNC spring machinery for higher precision, more complex spring and higher automation degree.
Packaging | In plywood case or according to your request |
Shipment | Within 4 weeks after receving your deposit |
- Can you send me some spring samples for checking?
- Sure. Before you place the order, samples can be sent to you for checking. What's more, overseas installation and the consequent training is available.
- What payment is acceptable?
- Your payment can be made via L/C,D/A,D/P,T/T,Western Union, Paypal. If you have other preference, please negotiate.
