Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > SINOSUN MP Series Industrial Planetary Concrete Mixer

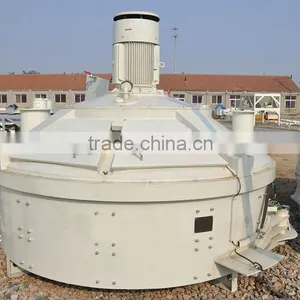

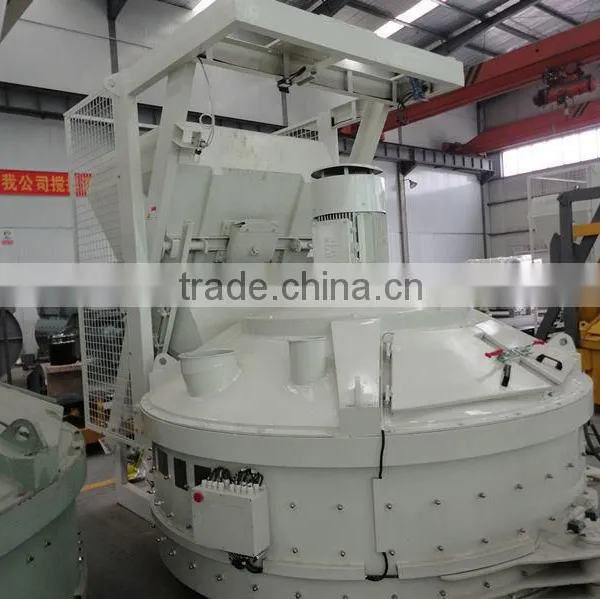

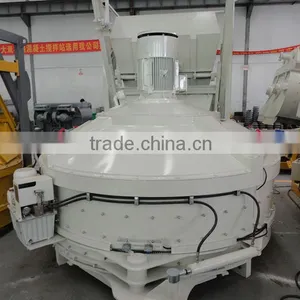

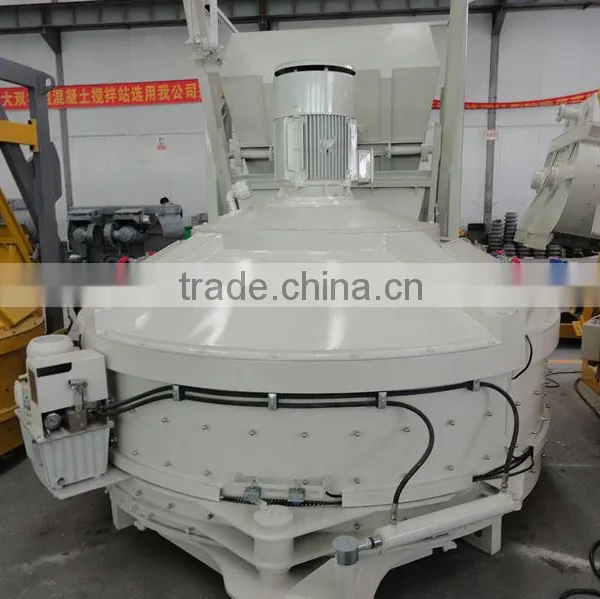

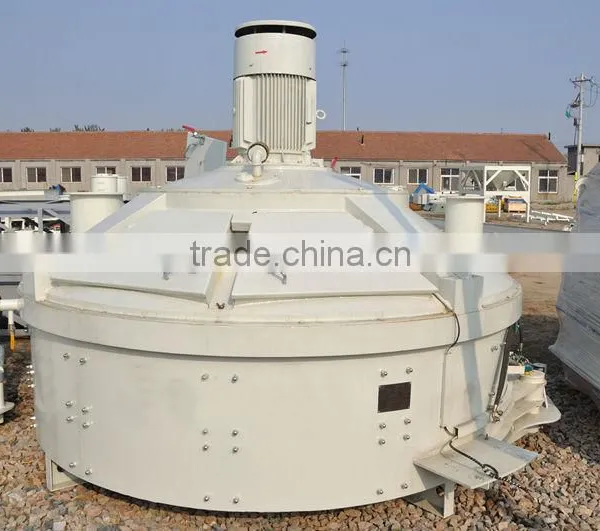

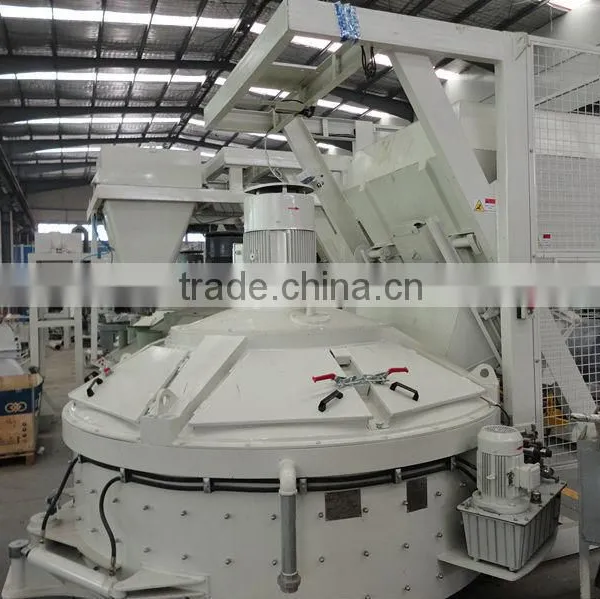

SINOSUN MP Series Industrial Planetary Concrete Mixer

Name: SINOSUN MP Series Industrial Planetary Concrete Mixer
Brand: SINOSUN
SKU: 103258371
Availability: InStock

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-1

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-2

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-3

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-4

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-5

SINOSUN MP Series Industrial Planetary Concrete Mixer thumbnail-6

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-1

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-2

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-3

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-4

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-5

SINOSUN MP Series Industrial Planetary Concrete Mixer photo-6

US$ 6,340 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Power Type:

Electric

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou SINOSUN Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Power Type Electric

Place of Origin Henan, China

Brand Name SINOSUN

Model Number MP250-MP3000

Power(W) 11-110kw

Dimension(L*W*H) Accoring to Model

Weight 1200kg-11000kg

Certification CE, ISO, GOST

Warranty 15 months since delivery

After-sales Service Provided Engineers available to service machinery overseas

SINOSUN MP Series Industrial Planetary Concrete Mixer

I. Models Of SINOSUN Industrial Planetary Concrete Mixer :

Item	Model
Item	MP250	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Output Capacity (L)	250	330	500	750	1000	1500	2000	2500	3000
Input Capacity (L)	375	500	750	1125	1500	2250	3000	3750	4500
Input Capacity (kg)	600	800	1200	1800	2400	3600	4800	6000	7200
Mixing Power (kw)	11	15	18.5	30	37	55	75	90	110
Discharging Power (kw)	2.2	2.2	2.2	2.2	3	3	4	4	4
Planet/Paddle	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Side Scraper	1	1	1	1	1	1	1	1	1
Bottom Scraper	____	____	____	1	1	1	2	2	2
Weight (kg)	1200	1700	2000	3500	6000	7000	8500	10500	11000

II. Application Of SINOSUN MP Series Industrial Planetary Concrete Mixer :

It is widely used to produce common commercial concrete, precast concrete and high-performance concrete. It can be used to build road, bridge, dam and etc.

III. Introduction Of SINOSUN MP Planetary Concrete Mixer :


Motion Track The revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with different grain size and weight. The movement of the material inside the trough is smooth and continuous. As shown in the picture, the blades track covers the while bottom of the trough after a cycle.	Gearing System The power transmission is realized by a hard surface gearbox which is designed specially by our company (This technique has been patented). Fluid clutch is installed between the motor and the gearbox (This item is optional). The Fluid clutch can ensure the mixer startup smoothly and it can keep the mixer start up normally even in the full load condition. The driving force provided by gearbox drives the mixing arms to do not only a revolution but also a rotation, and drives the scraping arms have a revolution. By this drive mode, the mixing action not only has a rotation but also has a revolution, the more complex of the motion track, the more turbulent the mixing is, and then the mixer works more effectively, its mixing more homogeneous.

Security Device of the Maintaining Door According to the market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.	Discharging Device According to different demands of customers, the discharging door can be opened by hydraulic, pneumatic. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.

Mixing Device Driven by the fearing system, the blades fixed on mixing arms and the scrapers on scraping arms crush and overturn the material to complete the compelling mixing.	Maintaining Door According to different demands of customers, there could be three maintaining doors at most. When maintaining, all of them can be opened. Thus it is convenient to maintain. There is also special sealing structure to protect the environment.

Water Spray Pipe The special designed sprayer is installed on the water pipe. The spraying water cloud can cover more area and also make the mixing more homogeneous.	Observing Port There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power.

Spare Parts Spare parts can be supplied at any time.	The Skip Hopper Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.

Temperature and Moisture Sensor To ensure concrete and prefabricated parts quality, sensors of temperature and moisture made in Bikotronic of German can be selected.	Weighing System According to different requirements we can add aggregate weigher, cement weigher and water weigher.

Dust Collecting Device The dustcolecting device is working together with the mixer in order to protect the working condition.	Control System The control system can automatically control the process of dosing, mixing, and discharging.
