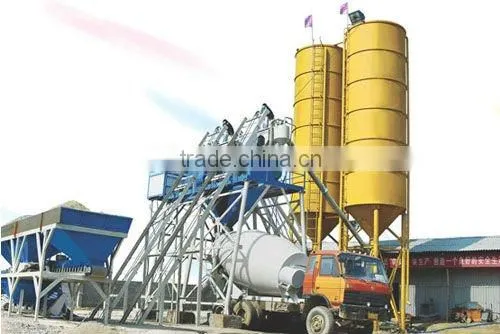

Help CenterHZS-50 StationaryConcrete Mixing Plant
Related Products
-
HZS120 Stationary Concrete Mixing PlantUS$ 220,000 - 260,000MOQ: 1 Set -
HZS-60 Stationary Concrete Batching PlantUS$ 120,000 - 130,000MOQ: 1 Set
-
HZS-60 Stationary Concrete Mixing PlantUS$ 120,000 - 130,000MOQ: 1 Set
-
HZS-50 Stationary Concrete/Cement Mixing PlantUS$ 70,000 - 82,000MOQ: 1 Set
-
HZS-25 Stationary Concrete Mixing PlantUS$ 30,000 - 45,000MOQ: 1 Set
|
HZS50 Technical parameters of HZS50concrete mixing plant | |
Theory productivity |
50m3/h 50m3/h |
Mainframe model |
JS1000 JS1000 |
Normal volume of mainframe |
1000L 1000L |
The maximum particle size of mixing aggregate |
80mm 80mm |
Power of mixing motor |
2×18.5kw 2×18.5kw |
Upgrade machines power of aggregate hopper |
18.5kw 18.5kw |
Aggregate batching system |
PL1600 PL1600 |
Volume of aggregate soil |
3×6m3 3×6m3 |
Batching capacity of aggregate |
1600L 1600L |
Kinds of aggregate |
3 3 |
Volume and number of powder silo |
50t/100t 50t/100tchoice according to request of user |
Powder screw conveyor |
40t/h 40t/hchoice according to request of user |
|
G Metering range and accuracy of aggregate G |
3000±2kg 3000±2kg |
|
W Metering range and accuracy of water W |
400±1kg 400±1kg |
|
C Weighing range and accuracy of cement C |
500±1kg 500±1kg |
|
F Weighing range and accuracy of fly ash F |
200±1kg 200±1kgchoice according to request of user |
|
A Weighing range and accuracy of admixture A |
50±1kg 50±1kg |
Cycle |
75S 75S |
Discharge height |
3800mm 3800mm |
|
Power of whole machine Power of the whole machine |
76kw About 76kw (not contain screw conveyor) |
Weight of the whole machine |
32t About 17T(not contain screw conveyor and power soil) |
External dimension (L*W*H) |
According to the model of disposition and layout |
