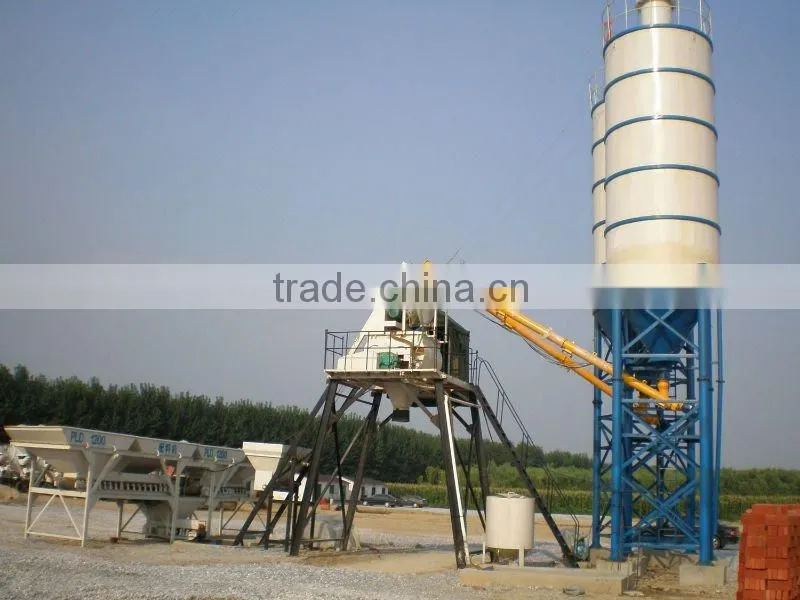

Help CenterHZS-25 Stationary Concrete Mixing Plant
Related Products
-
Planetary/vertical Mixer Stainless Too GoodUS$ 6,340 - 50,000MOQ: 1 Set -
Our Concrete Mixer Can Match With Germany'sUS$ 6,000 - 50,000MOQ: 1 Set
-
Good News! Planetary Cement Mixer BlenderUS$ 6,340 - 50,000MOQ: 1 Set
-
Do You Want to Make Money? YZHS35 Ready-mix Concrete/cement Plant(35m3/h)US$ 110,000 - 120,000MOQ: 1 Set
-
Good Choose MixerUS$ 6,000 - 50,000MOQ: 1 Set
Specifications
Capacity: 25 m3/hMixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 60 KW
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS500
Volume: 800L
Capacity: 500L
Mixing blade: 2×7 pcs
Mixing Speed: 35 r/min
Mixer Motor:18.5 kw
Weight: 3700kg
Dimensions: 3030×2300×2680mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher: PLD800
Volume: 2×2 m3
Capacity: 48m3/h
Power: 3×3 kw
Weight: 2300 kg
Dimension: 6400×1600×3000mm
2.2 Lifting hopper: 1 unit
Speed: 0.28 m/s
Power of Motor: 5.5 kw
3. CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo: 2units
Capacity: 50t×2=100t
Silo Diameter: Φ2800
3.2 Cement Screw Feeder: 2units
Diameter: Φ219mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Motor Power: 3kw
Butterfly Valve: Φ150 mm
Capacity: 50m3/h
6. AIR SYSTEM
Air Compressor: 1unit
Power: 5.5 kw
Pressure: 0.7 Mpa
Air flew: 0.67 m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing: 1unit
Weighing Capacity: 1500kg
Precision: ±1%
7.2 Cement Weighing: 1unit
Weighing Capacity: 300kg
Precision: ±1%
7.3 Water Weighing: 1unit
Weighing Capacity: 150kg
Precision: ±1%
7.4 Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation
Main electrical components: SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable .
