QTF3-20 semi-auto color paving brick making machine
1. Features and advantages of QTF3-20 semi-auto brick making machine
QTF3-20 semi-auto brick making machine is designed according to the market condition and customer's feedback. It has high productivity, high quality and strong durability. It is suitable to produce many kinds of high intensity and environment-friendly brick, interlocking block, colored paving block, grass-planting brick, hollow block, porous block, standard brick, insulation block and so on. The blocks made by QTF 3-20 have high compression strength, standard dimension, with beautiful appearance.
QTF3-20semi-auto brick making machine is specially made for producing colored paving block, grass-planting block, slope protection brick and so on. It adopts hydraulic drive, non-contact approach switch monitoring, double layers (raw material and color material), and automatically working. It combines mechanic, electricity, hydraulic and high frequency vibration technology together. The main electrical components and hydraulic components are all imported or adopt Chinese famous brand. It has the features of compressing during vibrating, controlling both the height and density, high exciting force, compact structure, easy operation, convenient maintenance, reliable working, etc. Being equipped with one belt and a common mixer, it can make bricks. It is an ideal environmental construction equipment.
2. Capacity of QTF3-20 semi-auto brick making machine
Type |
Sample |
Size |
pcs/mould |
pcs/hour |
pcs/day |
Hollow block |
|
390*190*190mm |
3 |
540 |
4320 |
Standard brick |
|
240*115*53 mm |
20 |
3600 |
28800 |
Porous block |
|
240*115*90 mm |
10 |
1800 |
14400 |
Holland block |
|
200*100*60mm |
12 |
2160 |
17280 |
3. A simple blocking making line of QTF3-20 brick making machine
QTF3-20 Block Production Line | ||
No. |
Components |
Quantity |
1 |
QTF3-20 Main Machine |
1 set |
2 |
Hydraulic Station |
1 set |
3 |
Mechanical Control Joysticks |
1 set |
4 |
Electric Box |
1 set |
5 |
Pallet Feeder |
1 set |
6 |
Concrete Material Feeder |
1 set |
7 |
Color Material Feeder |
1 set |
8 |
Green Block Conveyor |
1 set |
9 |
350 Pan Mixer ( for concrete material ) |
1 set |
10 |
B500x6m Belt Conveyor ( for concrete material ) |
1 set |
11 |
350 Pan Mixer ( for color material ) |
1 set |
12 |
Mould |
1 set |
13 |
Stacker |
1 set |

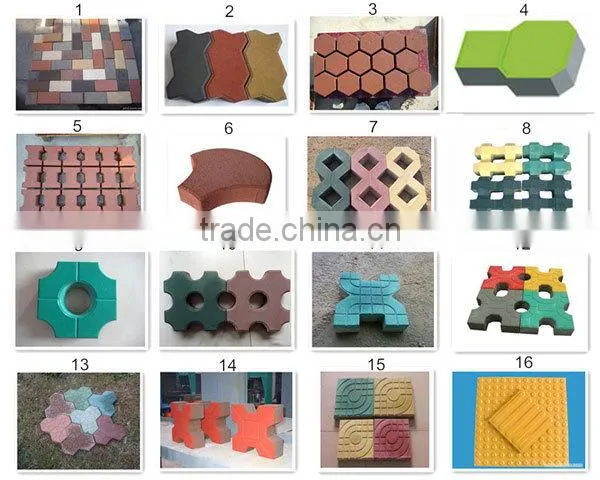

4. Blocks made by our brick making machine
5. Other models of our brick making machine
6. Foreign customers came to visit our company
7. Machines sent to the customer
....
