Specifications
Biaxial and Multiaxial Fabrics: consist of two or more layers fiberglass at different orientations with mats stitched on fabrics
1. Products Specifications
Biaxial and Multiaxial Fabric
Style |
Mass (g/m2) |
Mass (oz/yd2) |
Roll length (m) |
Width (cm) |
Roll Weight (kg) |
Resin Compatibility |
EB450(0/90) |
450 |
13.3 |
87 |
127 |
50 |
UP or Epoxy Resin |
EB600(0/90) |
600 |
17.7 |
65 |
127 |
50 |
UP or Epoxy Resin |
EB900(0/90) |
900 |
26.6 |
35 |
127 |
50 |
UP or Epoxy Resin |
EU400(45/-45) |
400 |
11.8 |
98 |
127 |
50 |
UP or Epoxy Resin |
EU800(45/-45) |
800 |
23.6 |
49 |
127 |
50 |
UP or Epoxy Resin |
ETW750(45/-45/90) |
750 |
22.1 |
52 |
127 |
50 |
UP or Epoxy Resin |
ETW1200(45/-45/90) |
1200 |
35.4 |
33 |
127 |
50 |
UP or Epoxy Resin |
ETL800(0/45/-45) |
800 |
23.6 |
49 |
127 |
50 |
UP or Epoxy Resin |
ETL1200(0/45/-45) |
1200 |
35.4 |
33 |
127 |
50 |
UP or Epoxy Resin |
EMU900(0/45/-45/90) |
900 |
26.5 |
44 |
127 |
50 |
UP or Epoxy Resin |
EMU1200(0/45/-45/90) |
1200 |
35.4 |
33 |
127 |
50 |
UP or Epoxy Resin |

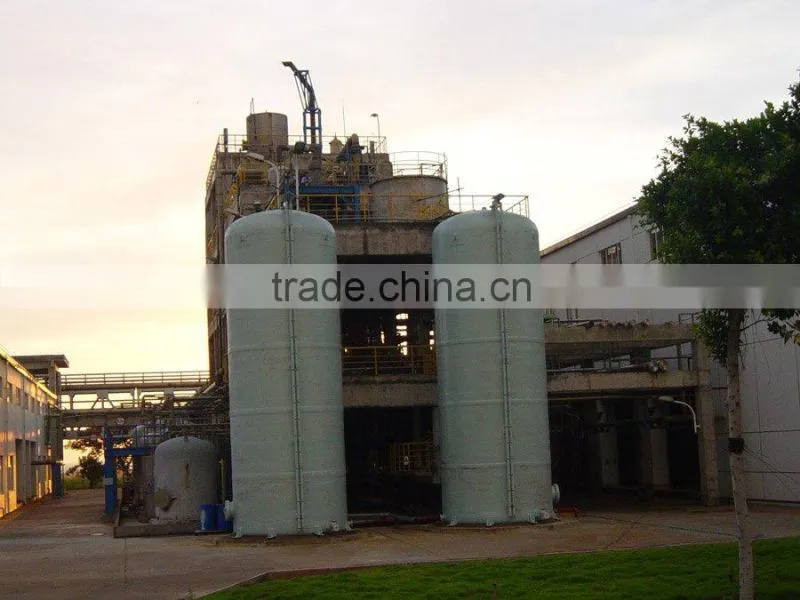

Used in: boats, wind power, basic facilities, sports apparatus, as well as the general industries,
the fabrics also can be stitched with mats according to clients' requirements.
2. Applications
