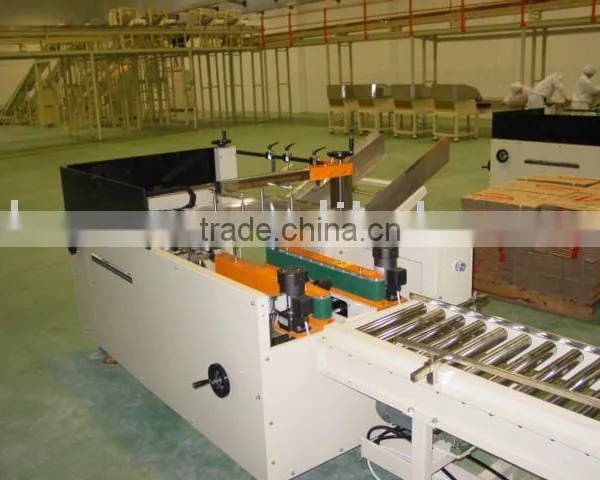

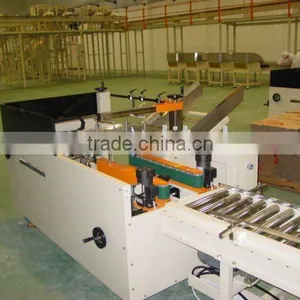

This case erector is used to erect the case,box and carton automatically, and it is normally combined with your packaging lines.Case Erector Model No MW-T1 (Adhesive Tape)
The MICpack Case Erector is an easy-to-use, highly-reliable and ergonomically
friendly case erector that is capable of erecting and sealing cases with pressure-sensitive tape at speeds up to 15 cases per minute.
Features:
1. Low-level, ergonomically
friendly vertical magazine also enables easy loading of case blanks and allows for a reserve stack
of cases to be waiting in the machine to ensure reliability and continuous production.
2. By using timed top and bottom flights and an adjustable compression mandrel in the design, with the MW-T1, you are sure to get a square case;
3. In addition to our already innovative and clean design, we have scales and quick-release handles on every MW-T1 to enable fast, “no-tool” changeovers. An easy-to-understand operator panel that will guide the operator through the quick changeover process is also included as standard on every MW-T1 we sell.
4. Imported famous components are equipped.
Specification:
1. Machine size: 1800×1980×1500mm
2. Flexible Carton length: 200-560mm;
3. Flexible Carton width: 180-420mm;
4. Flexible Carton height: 80-430;
5. Power consumption: 0.14Kw;
6. Power supply: 220V, 1Phase, 50/60Hz;
7. Air pressure: 0.5-0.7Mpa;
8. Capacity: 700-800 cartons per hour;
9. Net weight: 700Kg;
