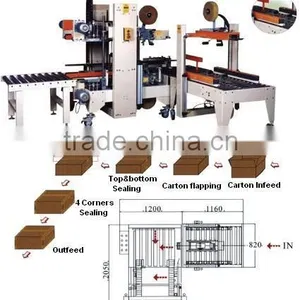

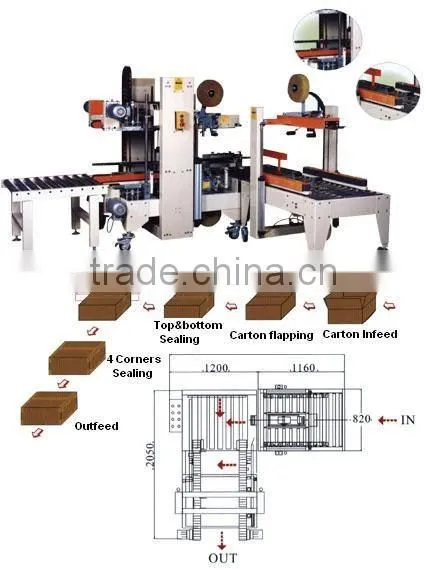

This carton sealer is used to seal carton corners by BOPP tape fuly automatically.H Type Carton Corner Sealer Model No MG-09J
Feature:
1. Easily change the belt;
2. Small space of machine bench for east reaches by extending the hands thus facilitating maintenance;
3. Horizontal method is adopted for tape application, during which the carton box is stopped thus enabling smoothness of adhesion and nice appearance because of no sibe force;
4. Single way lateral movement is adopted and sliding bearing and bearing steel shaft are utilized thus making smooth movement without noise;
5. Automatic ascending and descending for change of width;
6. Equipped with pressure switch, during sealing, pressure can automatically release and side clamp will be open;
7. With upright tape blowing structure, tape will not be too hot for softening and bending and will not be too think for dropping thus resulting poor carton sealing.
Specification:
Model No |
MG-09J |
Carton Size |
L300-600* W200-500 * H180-500(mm) |
Table Height |
Max800 ,Min 650 (mm) |
Sealing Speed |
400Carton/Hour |
Machine Size |
L2000* W1200 *H1500 (mm) |
Power/Air Consumption |
220V/380V , 50/60HZ / 5kg |
Belt Size |
60- 75mm |
Net Weight |
450kg |
