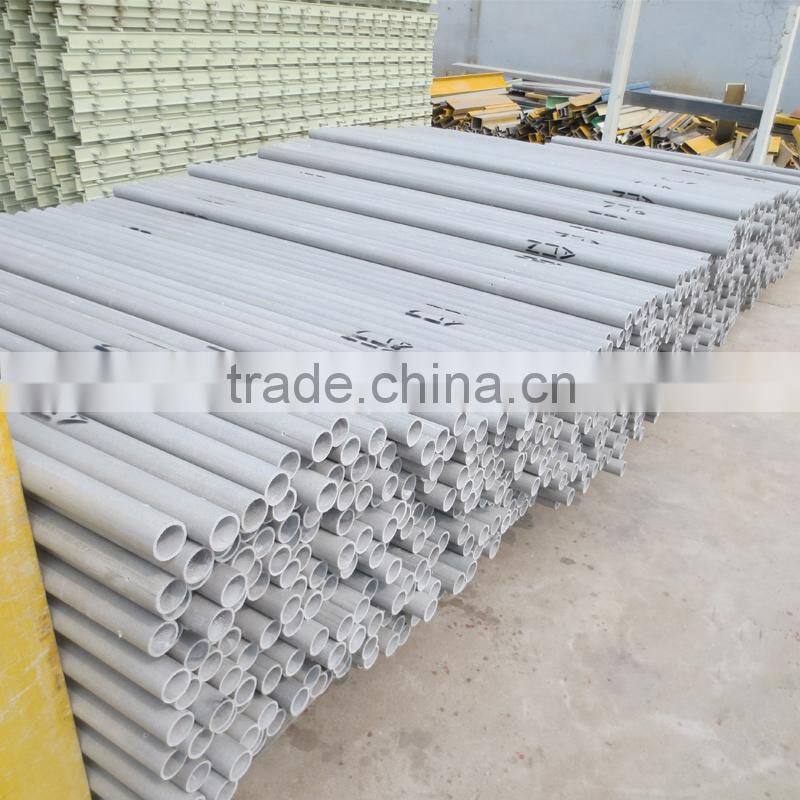

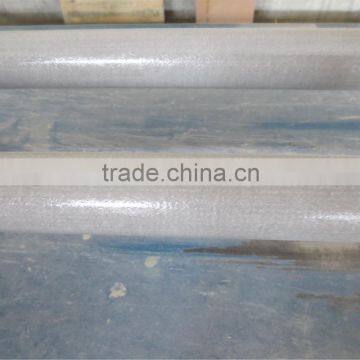

High quality high strength frp pultrusion professional produce
- 4000 Meter / Meters per Month
- All China Ports
- T/T L/C D/P D/A
Product Details
Place of Origin: | Hebei, China | Brand Name: | OPCT | Application: | Construction |
Surface Treatment: | Smooth | Technique: | Pultruded |
Product Description

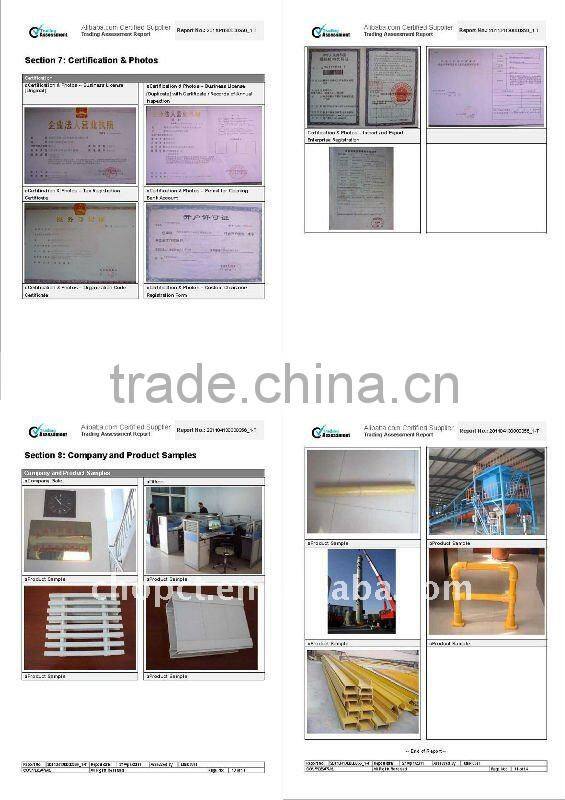

ISO Certificate
Supplier evaluation strength (BV authentication)
Description

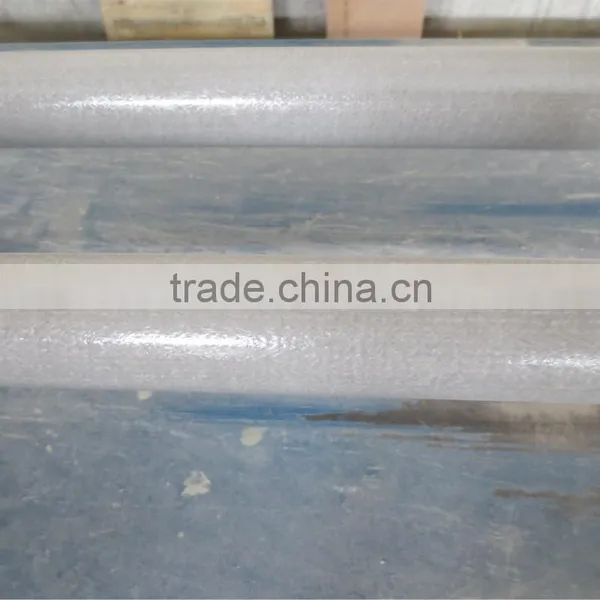

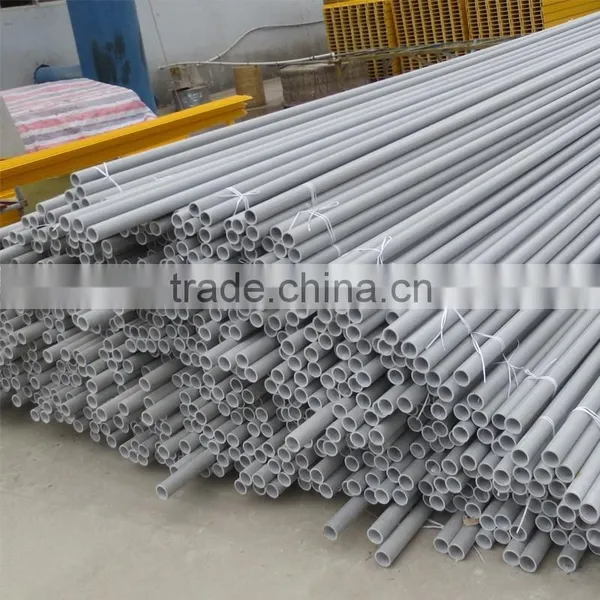

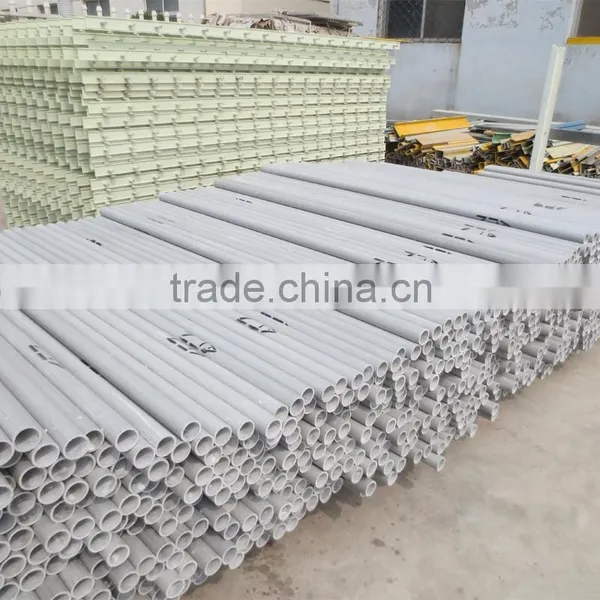

FRP profiles have a lot of kinds, glass fiber reinforced plastic pipe, glass fiber reinforced plastic square tube, glass fiber reinforced plastic rectangular pipe, glass fiber reinforced plastic round bar, FRP flange beam.
The FRP profiles of the basic components for resin and glass fiber (including cloth, felt, etc.), it is a fiber (including glass fiber, carbon fiber, organic fiber and other metal, non-metallic fiber) as the reinforcing material to resin (mainly epoxy resin. Polyester resin, phenolic resin) for glue linker, auxiliary other auxiliary materials (main materials: release agent, curing agent, catalyst, sealing die agent, UV light stabilizer, clean die water, gel coat, etc.) composite and become. It has high temperature resistance, corrosion resistance, high strength, small specific gravity, low moisture absorption, extension small and insulation good and a series of excellent characteristics.
The major characteristic is as follows:
1, weathering resistant, aging resistant, water proof, rodent proof and corrosion preventive.
2, light weight , easy to shipment and easy installation.
3, high tensile strength
The physical property is as follows.
Property | Direction | Unit | Test method | Profiles | Rods |
Tensile Strength | (LW) | MPa | ASTM D638/GB1447-83 | 210-350 | 500-700 |
(CW) | MPa | 30-60 |
| ||
Tensile Modulus | (LW) | GPa | ASTM D638/GB1447-83 | 15-28 | 32-42 |
(CW) | GPa | 5-7 |
| ||
Flexural Strength | (LW) | MPa | ASTM D790/GB1449-83 | 210-390 | 600-900 |
(CW) | MPa | 60-100 |
| ||
Flexural Modulus | (LW) | GPa | ASTM D790/GB1449-83 | 15-24 | 32-42 |
(CW) | GPa | 5-7 |
| ||
Compressive Strength | (LW) | MPa | ASTM D695/GB1448-83 | 220-350 | 400-450 |
(CW) | MPa | 60-100 |
| ||
Compressive Modulus | (LW) | GPa | ASTM D695/GB1448-83 | 16-23 |
|
(CW) | GPa | 5-10 |
| ||
Short beam Shearing Strength | (LW) | MPa | ASTM D2344 | 25-35 |
|
Breaks Shearing Strength | (PF) | MPa | ASTM D732 | 38-50 | 38-55 |
Impact Strength | LW | KJ/mm2 | ASTM D256 | 150-250 |
|
Poisson Ratio | (LW) | mm/mm | ASTM D3039 | 0.3-0.4 |
|
(CW) | mm/mm | 0.15-0.25 |
| ||
Barcol Hardness |
| -- | ASTM D2583 | 40-50 | 50 |
Relative Density |
| -- | ASTM D792 | 1.7-1.9 | 1.85-1.95 |
Coefficient of Thermal expansion | (LW) | 10-6m/m/°C | ASTM D696/GB2572-82 | 4.5-8 | 3.0 |
Breakdown Strength | (PF) | KV/mm | ASTM D149/GB1408-78 | 7-8 |
|
(LW) | KV/mm | 1.4-1.6 |
|
