Hot selling 2015 newest tire recycling pyrolysis machine waste tire pyrolysis to oil machine with CE
Brifely Introduction
Our pyrolysis machine can convert waste plastic, tyre and rubber etc into fuel oil in normal pressure. In general, we can get 1 ton fuel oil with 2.5 tons waste tyre or plastic, the fuel oil can be refined throught the oil distillation machine to the deisel, gasoline, and machine oil. Zero emission, high effiency, our pyrolysis plant not only can resolve the problem of the waste plastic/tyre and pollution, but also can bring substantial benefits for you. We can also supply
• Used Oil Distillation Plant
• Carbon Black Processing Plant
Raw Material
Technical Parameters
| Model | WJ-6 | WJ-8 | WJ-9 |
| Raw Material | Tire, Plastic, Medical Waste | Tire, Plastic, Medical Waste | Tire, Plastic, Medical Waste |
| Struction form | Horizantal Rotation | Horizantal Rotation | Horizantal Rotation |
| 24-hour Disposal Amount | 6 T | 8T | 9T |
| 24-hour Oil Output Ratio | 2.4T | 3.5-4T | 6.5-9T |
| Operation Pressure | Normal Pressure | Normal Pressure | Normal Pressure |
| Rotating Speed of Reactor | 0.4Turn/Min | 0.4Turn/Min | 0.4Turn/Min |
| Power | 24KW | 30KW | 54KW |
| Mode of Cooling | Water Cooling | Water Cooling | Water Cooling |
3D Layout
Advantage features
1.The first in the world to have created the new heating structure that combined the advantages of burning the reactor and heating the main reactor by hot air.
2.The technology of avoiding the reactor of being burnt through by reforming the furnace, which will lengthen the life span of the main reactor for 2 to 3 years which saves quite amount of money for customers to maintain and update the continuous and batch used tire pyrolysis equipment, and reduces the rate of depreciation of WJ-6 tire recycling equipment.
3.The technology of improving the oil output by another 5% with the same machine.
Environmental friendly
1.Totally sealed reacting system, and slag discharging system, which prevent odor and ash releasing out.
2.Extra gas purifing system, remove chemical and impurity then recycle it into furnace for heating, clean and energy recycling.
3.6 generation hot some cleaning system, configured with filtering tank, liquid cleaning chamber, liquid sprayers and chimney, make emission meet EU standard. Please refer the scene picture of our Turkey factory:
Energy saving
1.Latest heating system, combined hot smoke heating and fire directly heating. improve heating effeciency for 20% and save energy for 15-20%.
2.New designed reactor case, with particular thermolith and asbestos cover. Increase life time and make reactor get heated uniformly.
3.Specific reactor case cover, keep kcal from transmited to air in workshop.
Operation security measures:
1.Auto alarm system for over temperature and pressure.
2.Auto pressure releasing system to keep emergency situations into safty.
3-Auto operating control panal keep operator from high risk area.
Main Parts

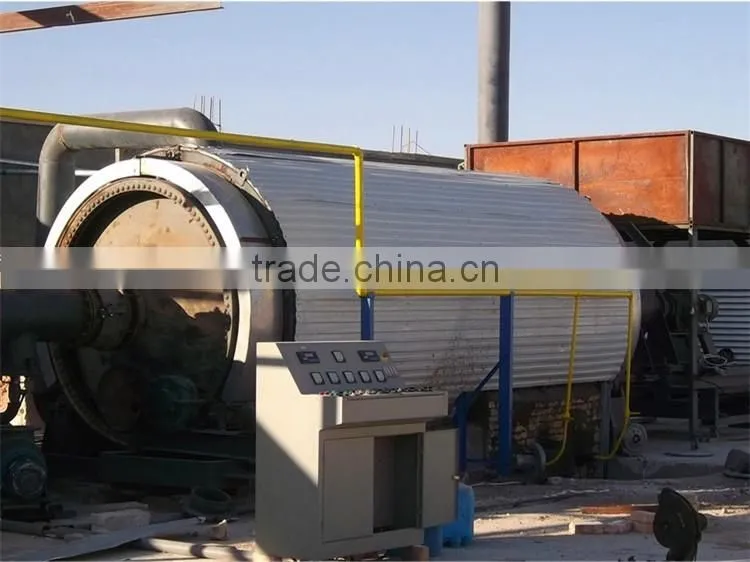

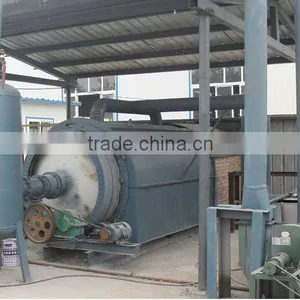

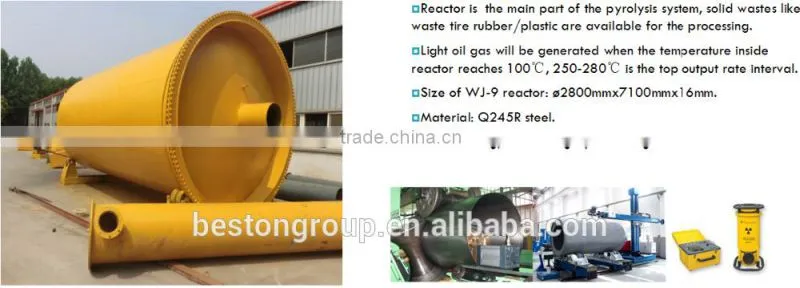

Reactor

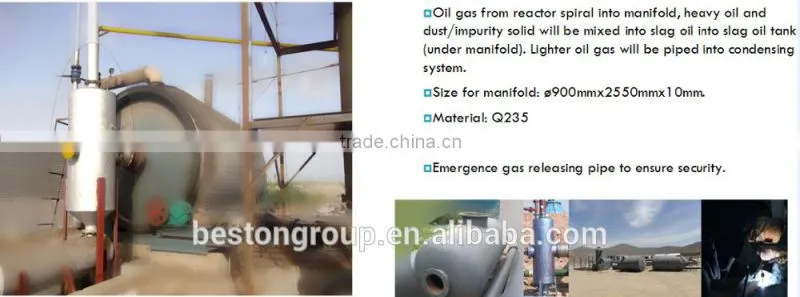

Gas Manifold

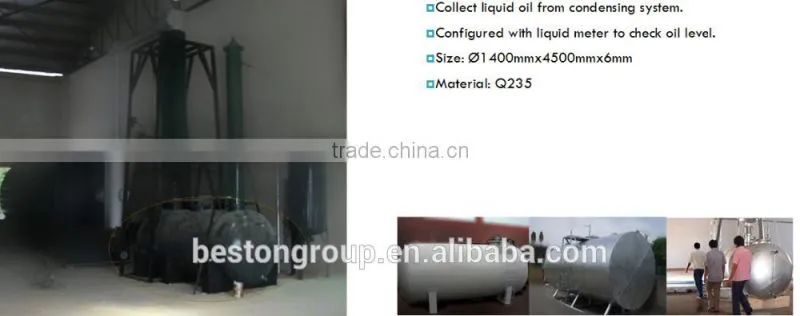

Heavy Oil Tank

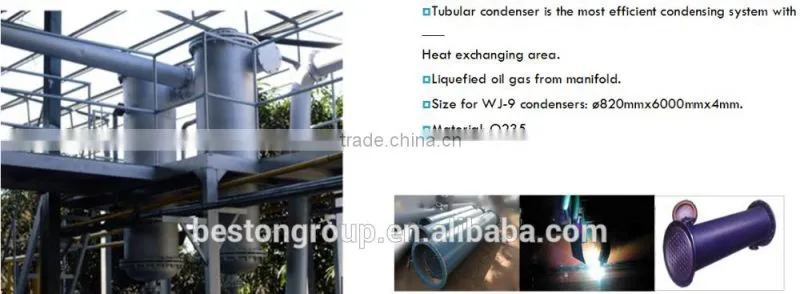

Condensers
Oil Storage Tank

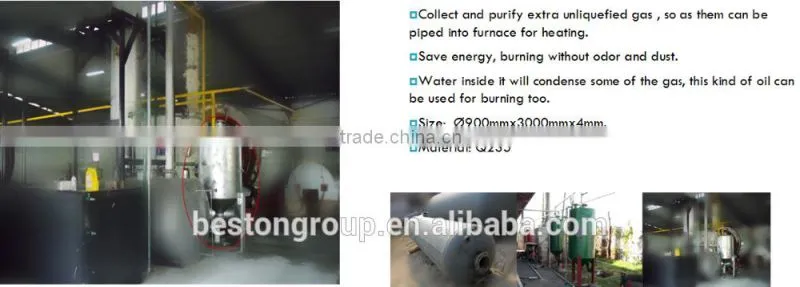

Hydroseal
After Service
- Delivery time- It will be 30 days after we receive the deposit.
- 24 hours online service.
- One year warranty from the date of receiving. The warranty equipment within warranty time, facilities failure is freely repaired or replaced by our company.
- According to users’ needs, after deliver equipment, we can send technical personnel to train operation, maintenance.
- After the expiration, seller provide spare parts at cost price.
- Seller provide free lifetime technical services.
- Whether it is within the warranty period, once receiving a notification service, maintenance personnel to reach the user site in 48 hours.
- Regular visits, listen to users’ comments and suggestions on the service quality and product quality.
With professional services enable customers to maximize the benefits!
We hereby promise:
We will consistently stick on our conception of sincerity, safety, professionalism, top-quality to serve clients and maximize customer's benefit!
In the meantime, our company hammer at perfecting upstanding service, including presale &aftersale service, to save customer's worry.

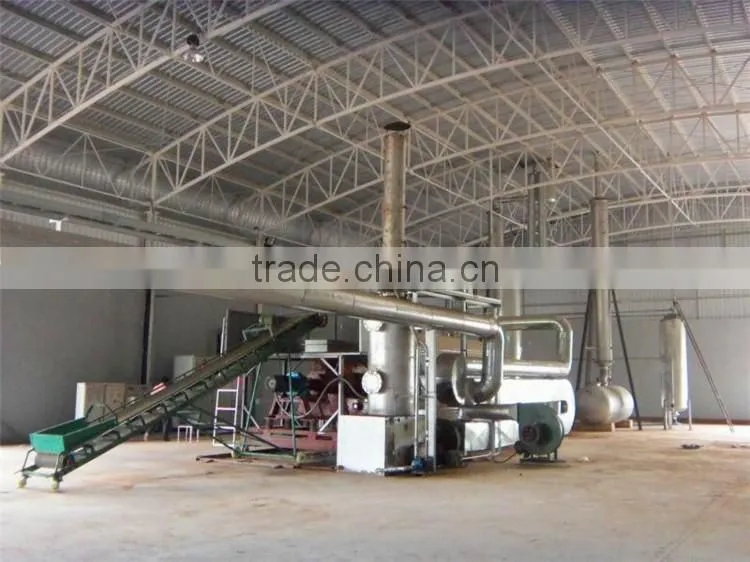

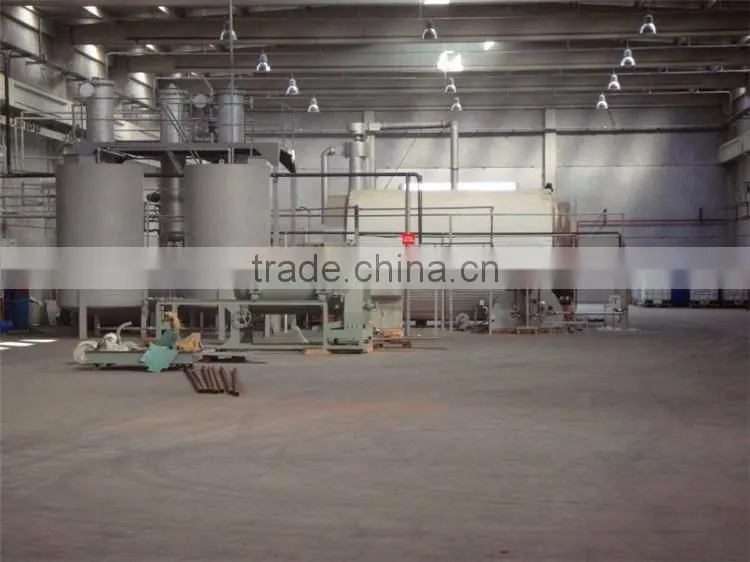

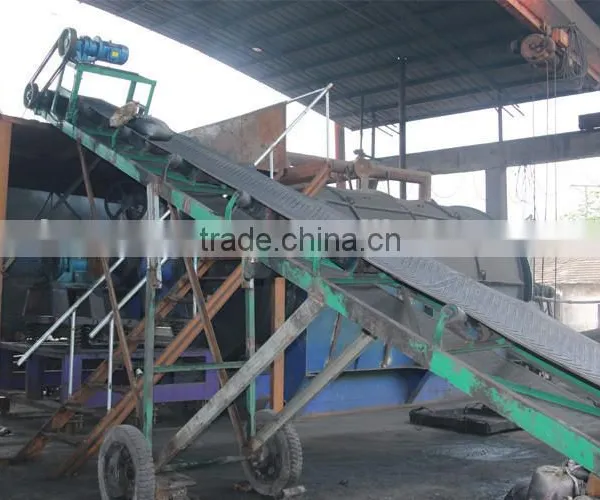

Running plant
Running plant in Canada--2005
Running plant in Jordan-2012
Running plant in Thailand-2010
Running plant in India-2011
Company Profile
We, Beston(Henan) machinery Co.Ltd.,
are one of the professional manufacturers specializing in pyrolysis machine,oil distillation machine and carbon black processing machine. Having been in this field for 15 years, we promise that our products adopts highly advanced technonogy and has the features of increasing oil output 5%, saving energy 30%, protecting the environment and ensuring safety 100%.
you are invited to visit our factory, company and packing station at any time.
1. How many tons per day can your systems process?
For our tire pyrolysis machine, we have 3 standard models.
Batch system: Model WJ-6(6T/D); Model WJ-8(10T/D); Continuous system; Model WJ-9(20T/D);

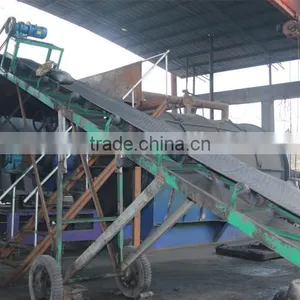

For our continuous waste tire pyrolysis plant is configured with tyre shredder system, auto feeding system, auto carbon&steel discharging system. The plant can be fed material and discharge carbon & steel automatically and sealed, under 350 degree temperature.
*1-. About our 20 tons continuous waste tire pyrolysis plant, it can work continuously with scheduled maintenance(once one or two weeks). So the plant can work 25 days per month.
*2-. The operating details for 20 tons per day: first feeding(5 tons material)→pyrolysis process→second feeding(5 tons material)→pyrolysis process→slag discharging for 2 hours→third feeding(5tons material)→pyrolysis process→the last feeding(5tons material)→slag discharging totally. And for20 tons capacities, about 24 hours will be needed in total.
2. I need to know the Quality of the Fuel Oil and Carbon Black produced. I need chemical test/analysis reports for both.
Enclosed the SGS report of fuel oil and carbon black in the file, pls check.
3. Will it process tires whole or shredded tires only?
Batch system: Model WJ-6(6T/D); Model WJ-8(10T/D); Continuous system; Model WJ-9(20T/D);
For our Manual system, if the diameter of the whole waste tire is under 1.2m, we could process the whole tire directly. While, for our continuous system, beforeprocessing them, we need to using the tire shredder to cut the whole waste tire into piece—30cm-50cm, then using the auto feeding system to send them into the reactor to process.
4. What is the total operational space, including maintenance clearances required per each system?
The smallest occupied area of Model WJ-6(6T/D) or Model WJ-8(10T/D) is 10m*30m*10m(L*W*H), while the smallest occupied area ofModel WJ-9(20T/D) is 10m*40m*10m(L*W*H).
Generally the size of 2000 square meters for the factory is enough. If it is convenient, could you send us the layout of your factory, then based on the layout of your factory, we could design the layour of the whole production line for you.—Comment from our engineer.
