Safety operation waste tire recycling pyrolysis for sale
Our pyrolysis machine can convert waste plastic, tyre and rubber etc into fuel oil in normal pressure. In general, we can get 1 ton fuel oil with 2.5 tons waste tyre or plastic, the fuel oil can be refined throught the oil distillation machine to the diesel, gasoline, and machine oil. Zero emission, high efficiency, our pyrolysis plant not only can resolve the problem of the waste plastic/tyre and pollution, but also can bring substantial benefits for you.
Put the raw material into the reactor, and then heat the burner. The oil gas from reactor will be separated in the manifold. The heavy oil gas will drop down and be stored in the slag oil tank, while the light gas will rise up to the condenser. After cooling, gas turns into liquid and flows to the oil tank. The remained gas that cannot be liquified will enter the hydroseal, and then return to the burner to be burnt after the edulcoration and desulfuration.
WJ-9 waste tire/plastic /rubber pyrolysis plant
with capacity 20T/D,continuous running for 24 hours per day, equipped with safety device(alarm for over temperature and pressure, Auto pressure releasing system, extra gas recycling system, Fire fighting device) and advanced dedusting system(dust chemical removing tank, ceramic ring filtering system and alkali sprayers), which will guarantee safety and no pollution in production.
Specification for 6-20T Pyrolysis Machine | |||
Items |
Contents |
||
Raw material |
Waste tyre ,scrap plastic,waste rubber |
||
Structure form |
vertical | ||
Model |
WJ-6 | WJ-8 | WJ-9 |
Size of reactor |
D2200*L6000mm |
D2800*L6200mm |
D2800*L7100mm |
24-hour capacity |
6T |
8-10T | 16-20T |
Operating pressure |
Constant pressure |
||
Heating material |
Coal, charcoal, fuel gas, fuel oil |
||
Average out-put oil rate |
50%(depends on different raw materials and we can test out-put oil rate for you ) |
||
Material of reactor |
Q245R/Q345R boiler plate |
||
Thickness of reactor |
16mm | ||
Rotate speed of reactor |
0.4-0.8 turn/minute |
||
Mode of cooling |
Water cooling | ||
| Available raw materials of pyrolysis plant | |
| Raw materials | Oil yield rate |
| PE | 95% |
| PP | 90% |
| PS | 90% |
| Plastic cable | 80% |
| Submarine cable | 75% |
| Plastic bag | 50% |
| ABS | 40% |
| Leftovers of parper | Wet 15-20%, dry 60% |
| big tire | 45-50% |
| small tire | 35-40% |
| house garbage | 35-50% |
| rubber cable | 35% |
| sole | 30% |
| PET | NA |

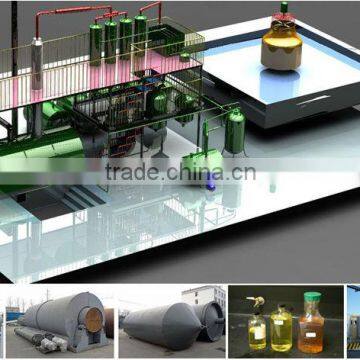

| 3D Drawing |
|
End Products and Usage | |||
NO. |
Name |
Percentage |
Usage |
1 |
Tyre oil |
50% |
• can be sell directly. |
• make diesel and gasoline by use oil distillation machine. | |||
• can be as fuel. | |||
2 |
Carbon black |
30% |
• can be sell directly. |
• make fine carbon by the carbon black grinding equipment. | |||
• make carbon brick by briquetting equipment. | |||
3 |
Steel wire |
12% |
• can be sell directly. |
• make steel bloom by hydraulic press-packing | |||
4 |
Combustible gas |
8% |
• can be as fuel heating the reactor |
• extra gas also be storage as fuel for other heating. | |||
| Main Feature |
|
1. Safety |
|
A. With an auto welding machine for the reactor, it can not only greatly improve working efficiency but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak. B. Professional heating treatment and x-ray detection chamber are especially for welding. C. Professional thermometer, pressure gauge and safety valve. D. It is dangerous to burn exhaust gas (C1 to C4) without any safety measures. In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production.
|
|
2. Environmental Friendly
|
|
A. Well water de-dusting system can avoid black smoke. B. The exhaust gas will be recycled for heating reactor, no gas pollution C. Every junction of the reactor is in good sealing situation with professional sealing material.
|
|
3. Long service Life
|
|
A. Material: Q245R or Q345 Boiler Steel Plate, thickness 16mm. B. Welding: Automatic welding machine with heating treatment and x-ray detection will prolong the service life of reactor to the max.
|
|
4. Energy Saving
|
|
A. Well sealing for heating system, no gas leak and saving fuel. B. The exhaust gas will be recycled for reactor heating. |
|
5. The total production consumption
|
|
A. Power: 120kw/hour in total (but it is not every device start at the same time). B. Cooling circuit water: 100m³/hour in total (the water can be recirculated and the more the water flow, the better the cooling down). C. Fuel for heating:
30——40KG coal for processing one ton raw oil for average. 20——30KG diesel for processing one ton raw oil for average.
D. Space for machine: 3000square meter----3500 square meter (the smallest space). E. Workers or shift: 4 to 6 workers which can be divided by two groups.
|
|
Burner (Furance) Built at client’s place, with fire-resistant bricks and other construction materials. It can also can be attached with oil burners when need to burn fuel oil or gas to heat the system .
|
|

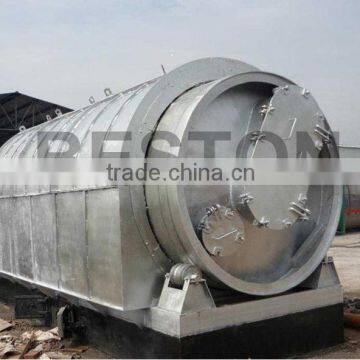

Reactor Size:2200*6000*12mm Steel material:Q245R/Q345R |
|
|
Oil Gas Separator Size: 700x2500x6mm Steel Material: Q254R |
|
Oil Gas Condensers Size: 630x6000x6mm Steel Material: Carbon Steel |
|
|
Oil Storage Tank Size:1400x3000x4mm Steel Material: Carbon Steel Capacity: 5MT |
|
Water Seal Size: 950x1500mmSteel Material: Carbon Steel Purifier and storage tank for extra burning gas, fire and explosion terminator |
|
30 working days for delivery time after first payment.
We Beston (Henan) Machinery Co., Ltd. is a professional manufacturer and supplier of waste tire, rubber, plastic pyrolysis plant(models:WJ-6, WJ-8, WJ-9) , and waste oil , crude oil , used oil. waste engine oil refining or distillation equipment(models:JL-1, JL-2, ZL-1, ZL-2, ZL-3) and carbon black processing maxchine with 15 years experience.
Hope to have the chance to cooperate with you in the near future.
1. Delivery time- It will be 45 working days after we receive the deposit.
2. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your workers. The installation period shall be one month; otherwise, you have to pay extra salary for the technician with the price of USD80.00 per day. And the round tickets and accommodation shall be taken by customer.
3. Guarantee- The guarantee period of machine except spare parts will be one year.The problem caused by wrong operation of workers shall not be responsible by our company.
With professional services enable customers to maximize the benefits!
Running plant in Canada--2005
Running plant in Jordan-2012
......
More informations, please fell free to contact us, we will send you the details as soon as possible.
Our factory also supply distillation machine and carbon black processing machine
Warmly Welcome to visit us !
