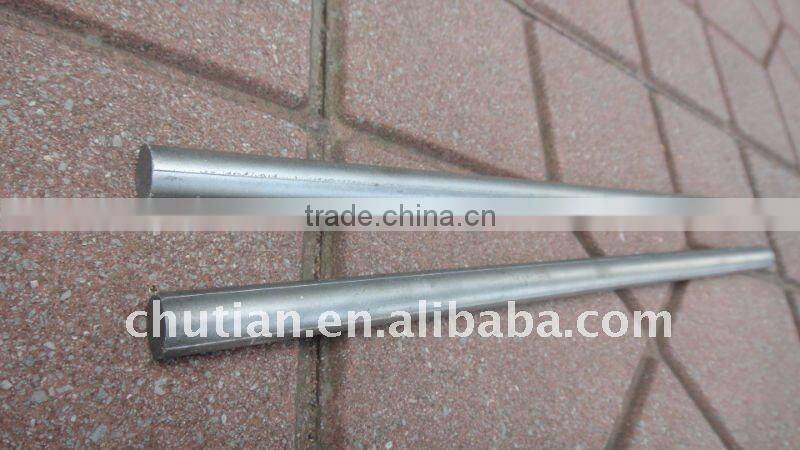

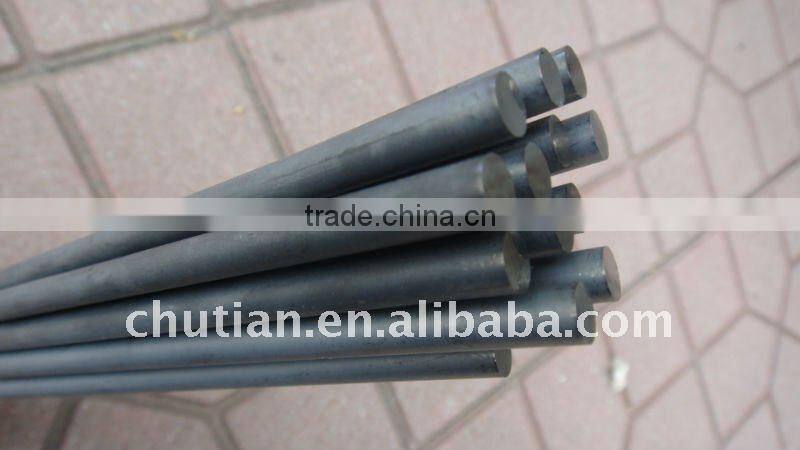

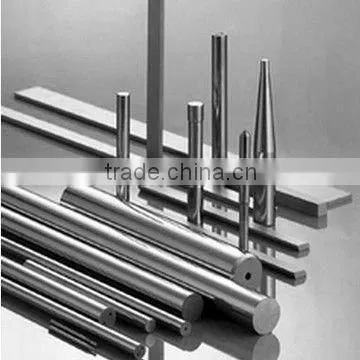

Tungsten carbide rod are widely used in making end-mill tools.
Grade, performance and applications of carbide rod
Grade |
Density g/cm3 |
T.R.S Mpa |
Hardness HRA |
Grain Size µm |
Performance&Application |
|
YG6X |
14.95 |
2600 |
92.0 |
1.0 |
For making all kinds of carbide rotary cutting tools which are used in cast iron, hot resistant alloy steel, non-ferrous metal and nonmetal. At the same time it can be used for wear resistant parts. |
|
YG8 |
14.70 |
2800 |
90.0 |
1.2 |
For making carbide wear resistant parts, rods and molds, meanwhile it can be used for semifinishing and finishing cutting tool at low speed for cast iron, nonferrous metal, nonmetal material. |
|
YL10.2 |
14.50 |
4000 |
92 |
0.6 |
It is suitable for indexable tool with submicro gain size with wide application. Used for processing of stainless steel, hot resistance steel,Cr, Ti, Ni alloy, synthetic material, non metal material , alloy steel even woods. |
Right grade for the processing material, the tool will perform better and be cost saving. Just kindly inform us your requirement, we will provide differernt solution ways for you.
by extrusion and HIP
by mold and vacuum furnace

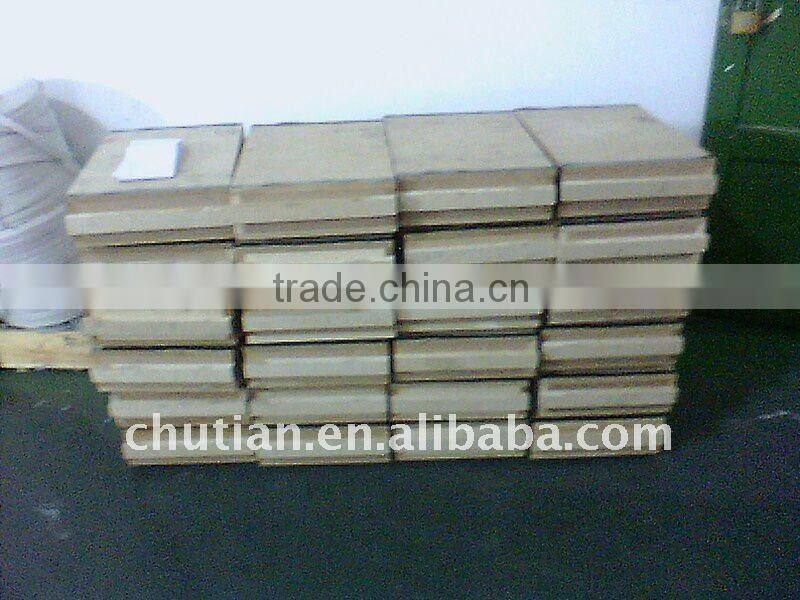

Package: Wraped in craft foam then in box, 25kg/carton
Carton size: 360*250*70 mm or 370*210*140 mm
