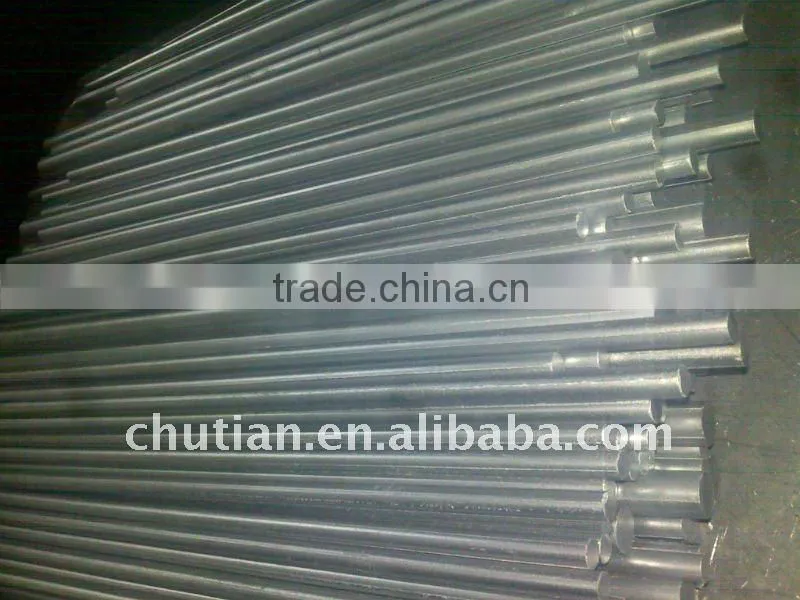

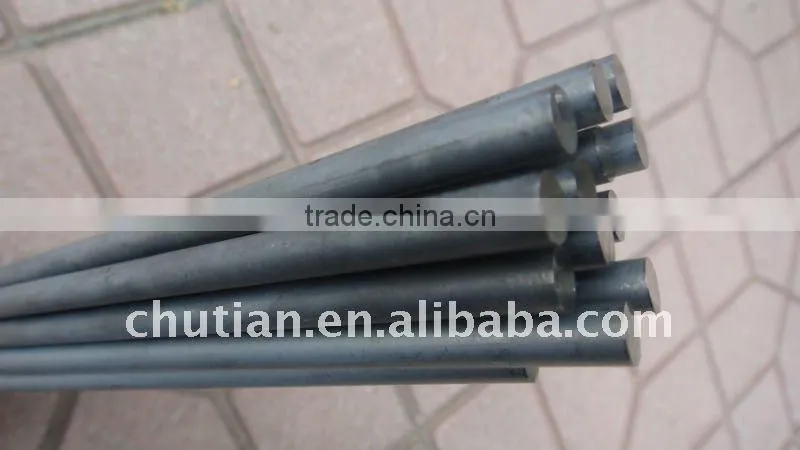

Tungsten carbide rod are widely used in making end-mill tools.
Grade, performance and applications of carbide rod
Grade |
Density g/cm3 |
T.R.S Mpa |
Hardness HRA |
Grain Size µm |
Performance&Application |
Equivalent to ISO |
|
YG6X |
14.95 |
2600 |
92.0 |
1.0 |
For making all kinds of carbide rotary cutting tools which are used in cast iron, hot resistant alloy steel, non-ferrous metal and nonmetal. At the same time it can be used for wear resistant parts. |
K10 |
|
YG8 |
14.70 |
2800 |
90.0 |
1.2 |
For making carbide wear resistant parts, rods and molds, meanwhile it can be used for semifinishing and finishing cutting tool at low speed for cast iron, nonferrous metal, nonmetal material. |
K20-K30 |
|
YL10.2 |
14.50 |
4000 |
92 |
0.6 |
It is suitable for indexable tool with submicro gain size with wide application. Used for processing of stainless steel, hot resistance steel, Cr, Ti, Ni alloy, synthetic material, non metal material , alloy steel even woods. |
K20-K30 |
Right grade for the processing material means good performance and cost saving. Just kindly inform us the application, we will make the right choice for you.
by mold
by extrusion
Package: Wraped in craft foam then in box, 25 kg for each carton.
