3.5" Screen Size and Touch Screen Motorcycle Navigation System

Hardware:

CPU SAMSUNG S3C2416 processor400/533MHz

Screen Display 3.5 inch touch panel, TFT screen, 65536 colors

Resolution 320*240

Memory Flash ROM NAND Flash support 64MB to 8GB

RAM 64M/128M DDR2 SDRAM

GPS Module High Sensitivity Receiver (NXP GNS7560)

Antenna Real built-in antenna (built-in GPS high sensitivity receiver42 channel)

BlueTooth Built in

Audio WMA,WAV

Video AVI, ASF

Photo JPG,TIFF,PNG

Input/Output Touch Panel Resistive type touch panel

Speaker Built–in loud speaker

SD / MMC TF slot, capacity up to 8GB (support TF HC)

USB USB 2.0 Device (Mini Port)

Waterproof YES (IP54)

UUT Drop Test (OK) Place a 3mm thickness fireproofing wood block,Power on the UUT,then drop it

m 80cm height freenessly by front,side and bottom face .NO function problem

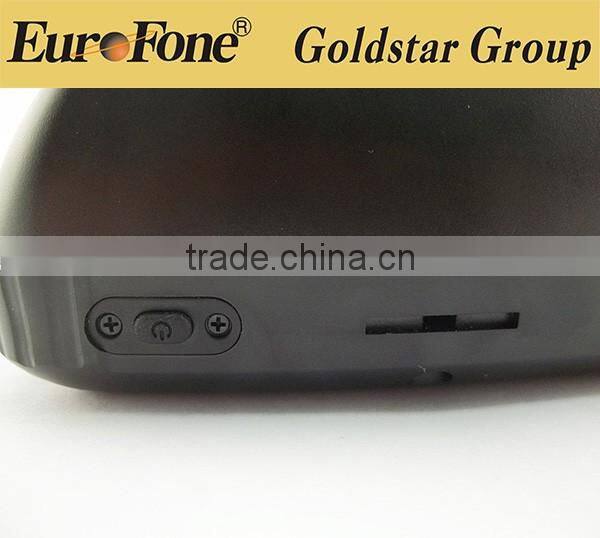

Buttons / Switches Hardware Power ON/OFF Switch and Reset Switch

Battery Type Built-in 3.7V 1150mAh Li battery

Active System continues with backlight setting on middle range & GPS function

on full power mode about 3.0(TBD) hr

Charger Rechargeable battery

Car Charger Output 5V, 1.0A

Certification & Regulation CE,FCC, RoHS

Temperature Operation -10°C to +50°C

Storage -20°C to +70°C

Humidity Operation 45~80%, Non-Condensed

Storage 30~90%, Non-Condensed

Hot start<=5sec (in open place,-130dBm)

Warm start<=38sec (in open place,-130dBm)

Cold start<=45sec (in open place,-130dBm)

Satellite reacquisition time accuracy:100ms

Position accuracy: <5M ( outdoor , -135dBm )

Crystal-Clear 3-D and 2-D Graphics

Physical Dimension: 105X88.7X23mm

Weight: 190g

Key Software

Operating System Microsoft Windows® CE NET5.0 Core version

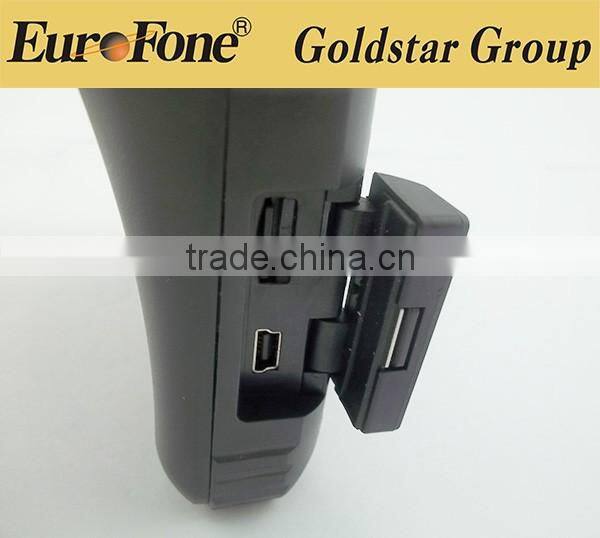

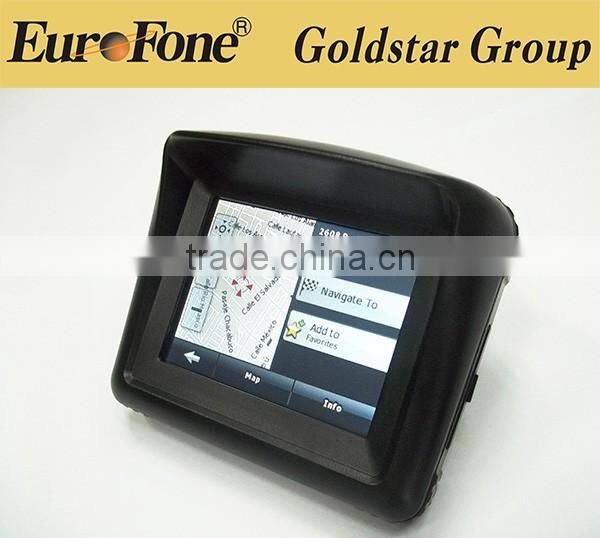

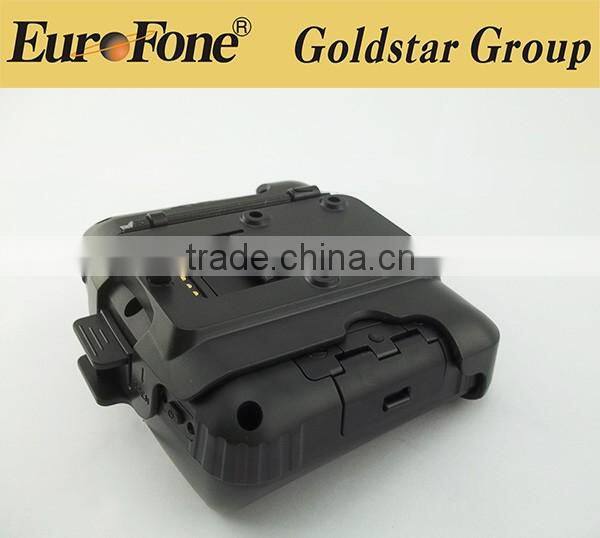

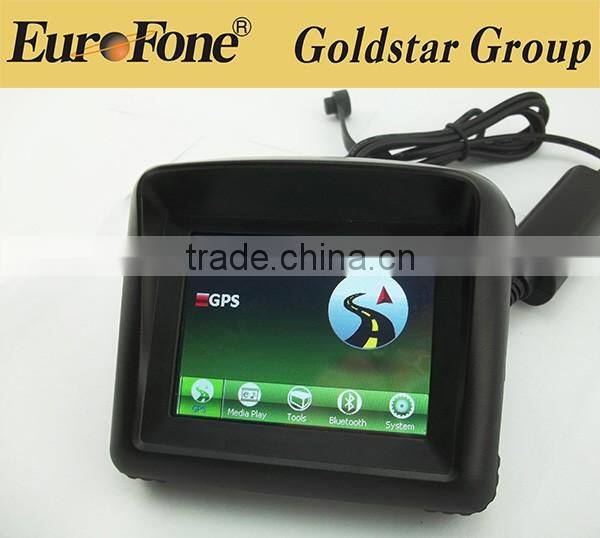

pictures for the GPS

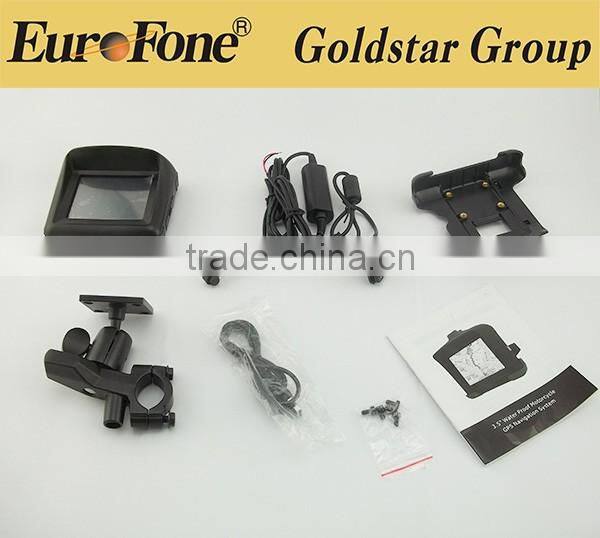

 Accessories:

3.5”Unit * 1pc

Mini USB cable * 1pc

Stylus * 1pc

Device Holder * 1pc

Cradle: * 1pc

Nuts*8pc

Power cable *1pc

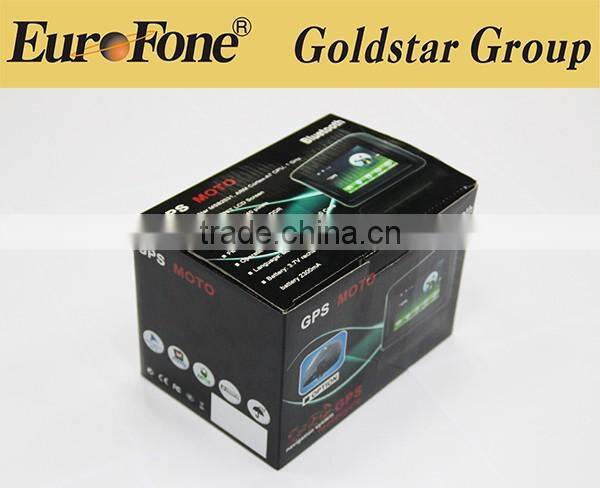

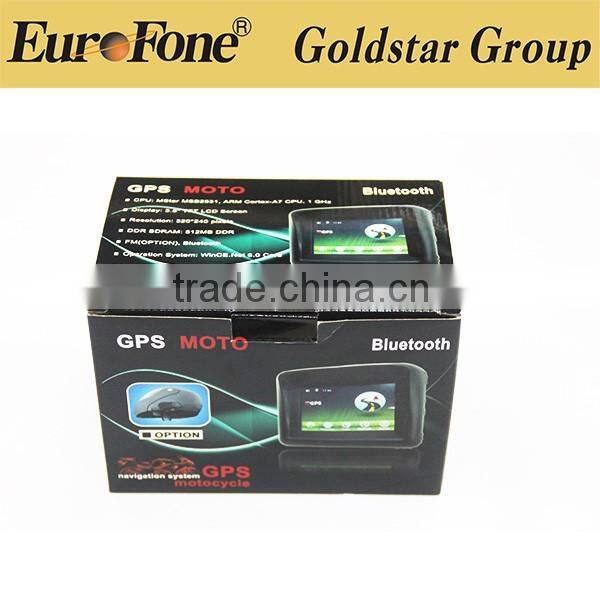

Gift box * 1pc

Giftbox 190x130x152mm

Carton 630x355x305mm (10PCS)

1. OEM, ODM, OPM of Motorcycle GPS navigation

2. CE ROHS standardized production and quality control

3. 1-year Warranty

4. Professional services on pre-sale and after-sale technical and trading support

5. Abundant experience in international trade

6. Ever-updating unique cloud services

Shen Zhen Goldstar Electronic Co.,Limited set up in 2009.It is a professional manufacturer in LED rechargable candles,Motorcycle Helmet Bluetooth Interphone,GPS watch,Robot Vacuum Cleaner,4G UIFI and so on.ALL products passed CE/ROHS/FCC standard.Our factory is located in shen zhen city,China.With the rich exprience and professional service.We have been Alibab Gold supplier for more than 9 years.Our products has exported to Europe, North and South America.South Asia,Middle east,etc.Welcome to join us.We will offer .you with best Product and best price all the time .

1.Do you accept Paypal payment term?

Answer: yes!  We accept many payment term, LC/TT/Western Union also inclede Paypal.

2. Are you factory?

Answer: yes We are professional producer produce all kinds of motor GPS and car GPS  in SHENZHEN, China.

3.Do you have warranty time?

Answer: yes , 1 year
