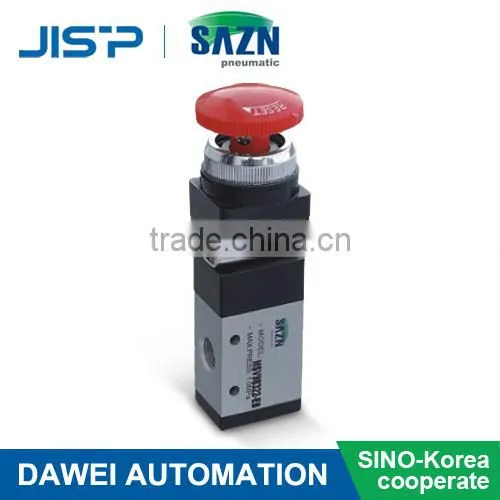

MSV seriesmechanical switch valve MSV86522,R,TB,LB,PB,PP.PPL.EB
Product Features
* It is a Mechanical valve, widely applied to all kinds of pneumatic system;
* With small operation force.
* Many different button for choosing
* 2 ports / 2 Postions Mechanical valve;
* Port size G1/8",
Ningbo J&F Machinery Co., Ltd professionally manufactures and exports the pneumatic component, fluid engineering parts and other industrial parts.
Pneumatic component: Control elements(solenoid valve, pneumatic control valve, mechanical valve), Air Source Treatment Elements(filter, regulator valve, lubricator), pneumatic actuators (cylinder), pneumatic accessory(muffler, buffer, metal connector, etc)
We are striving for supplying our customers with high quality products, competitive price and short delivery lead time.
We look forward to hearing from you soon.
| Model | MSV86321 | MSV86522 | MSV98322 | |||
| Working Medium | Micron Filtered Air | |||||
| The Position Counting | Two-position Three-way | Tow-position Four-way | Two-position Five-way | |||
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | |||
| Operating Temperature | 0~60 degree centigrade | |||||
| Effective Sectional Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.89) | 16mm 2 (CV=0.89) | |||
| Working Pressure | 0~0.8Mpa | |||||
| Model | Joint Pipe Bore |
| MSV86321 | G1/8 |
| MSV86321R(MOV-02) | G1/8 |
| MSV86321LB | G1/8 |
| MSV86321EB(MOV-03) | G1/8 |
| MSV86321TB(MOV-01) | G1/8 |
| MSV86321PB | G1/8 |
| MSV86321PPL(MOV-04) | G1/8 |
| MSV86321PP | G1/8 |
| MSV98322 | G1/4 |
| MSV983221R | G1/4 |
| MSV98322LB | G1/4 |
| MSV98322EB | G1/4 |
| MSV98322TB | G1/4 |
| MSV98322PB | G1/4 |
| MSV98322PPL | G1/4 |
| MSV98322PP | G1/4 |
| MSV86522 | G1/4 |
| MSV86522R | G1/4 |
| MSV86522LB | G1/4 |
| MSV86522EB | G1/4 |
| MSV86522TB | G1/4 |
| MSV86522PB | G1/4 |
| MSV86522PPL | G1/4 |
| MSV86522PP | G1/4 |
