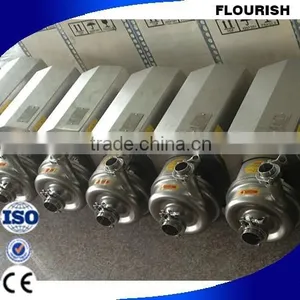

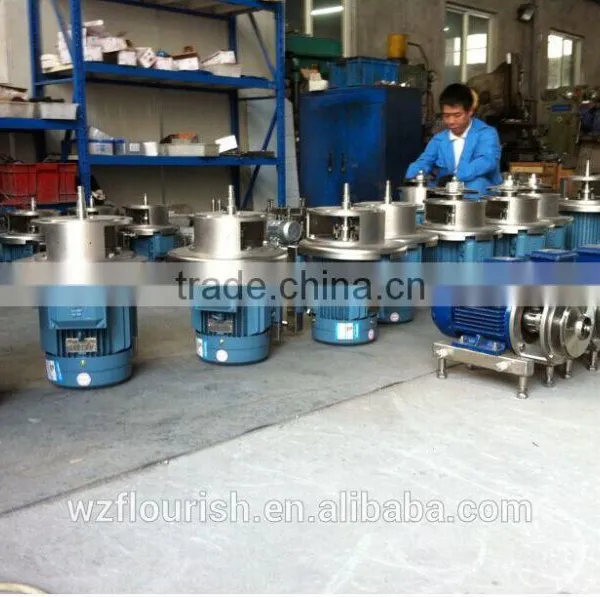

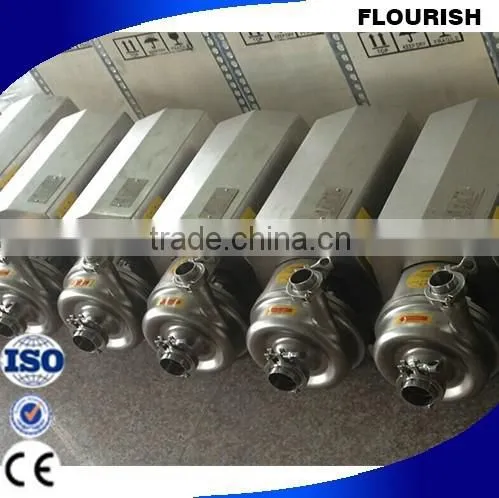

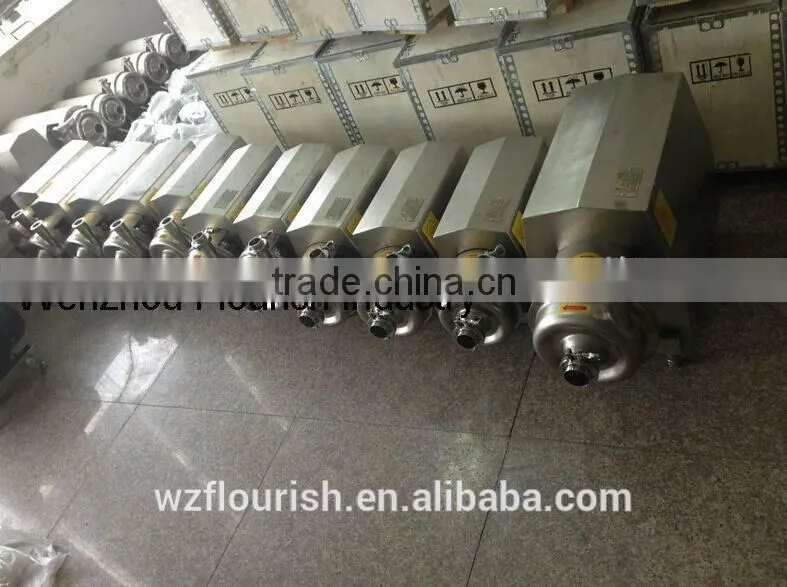

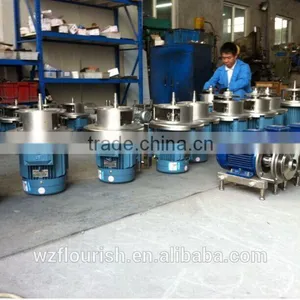

High Quality Stainless Steel Sanitary Pump
Stainless Steel Cow Milk pump
1,Material:SS304/SS316L
2,Connection:clamp/thread/flange
3.high efficient energy saving
Stainless steel Sanitary pump /Centrifugal Pump/milk pump/beverage pump/beer pump/soy bean pump
1.Application
| 1 | milk/juice/soy bean/drinks |
| 2 | aIcohol |
| 3 | foodstuff chemical |
| 4 | beverage to deliver Iiquid in smaII flow |
| 5 | high pressure filtering |
2. Product details
| Working Principle: | Centrifugal |
| Main applications: | Chemical, food, water |
| Driver: | Electric motor |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless Steel/Stainless steel |
| Maximum viscosity: | 5X104C.S.T |
| Maximum drive rating: | 37KW(50HP) |
| Maximum caliber: | 159mm(6 1/4inch) |
| Maximum discharge-side pressure: | 0.6MPa(6bar) |
| Maximum head: | 60m(196.8ft) |
| Flow rate range: | 3-200m3/h(13.2-880US.GPM) |
3.Selection Instructions
* Operating temperature: -20 - 150 º C(maximum sterilization temperature of 180 º C)
* Working environment and the media: To determine whether proof.
* Working conditions: Lobe pump is self-priming type, speed control can be mechanical control or frequency control options.
* Pump Material: 316L and 304 according to requirements of selected medium.
* Sealing materials: Standard rubber ring is silicone rubber. According to media select Viton, EPDM, PTFE, NBR. Standard mechanical seal is silicon carbide - hard alloy, according to media select graphite - silicon carbide, graphite - ceramics, etc.
* Suction connection: Standard quick clamps, upon request, select the pipe thread, flange, DIN standard, welding and so on.
4.Parameters
Model(Model) |
Motor Power (kw)
|
Flow Rate(m³/h) Flow |
Head (m) Pump Head |
Inlet (mm) Imlet Dim |
Outlet (mm) Outlet Dim |
sanitary stainless steel sanitary centrifugal pump transfer milk beer beverage pump |
0.75 |
3 |
15 |
38 |
32 |
RM03-20-1.1 |
1.1 |
3 |
20 |
38 |
32 |
RM05-24-1.5 |
1.5 |
5 |
24 |
51 |
38 |
RM05-32-2.2 |
2.2 |
5 |
32 |
51 |
38 |
RM10-24-2.2 |
2.2 |
10 |
24 |
51 |
38 |
RM10-32-3.0 |
3.0 |
10 |
32 |
51 |
38 |
RM15-24-3.0 |
3.0 |
15 |
24 |
51 |
38 |
RM20-24-4.0 |
4.0 |
20 |
24 |
51 |
51 |
RM20-35-5.5 |
5.5 |
20 |
35 |
63 |
51 |
RM30-24-5.5 |
5.5 |
30 |
24 |
63 |
51 |
RM30-35-7.5 |
7.5 |
30 |
35 |
63 |
51 |
RM40-24-7.5 |
7.5 |
40 |
24 |
76 |
63 |
RM50-24-7.5 |
7.5 |
50 |
24 |
76 |
63 |
RM50-24-11 |
11 |
50 |
24 |
76 |
63 |
5.Warranty:
We provide 1 year warranty for all products.
6.Payment:
We accept payment via TT (Bank transfer),LC .
7.How to contact us
Phone number: +86-13989750032
Tel: +86-577-86819294
We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex, EMS and Air mail.
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal.
2. Q: What's the MOQ?
A: Our MOQ is 1 unit.
3. Q:What's the delivery time?
A: It will take about 25-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, mark, etc. are very welcome.
5. Q: Do you have quality control?
A: Yes, we attach great performance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
