Terminal Connection Box,Connection Terminal Block 4x15
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LEDISEN
Model Number:
MG03 415
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Connection Box,Connection Terminal Block 2x7NegotiableMOQ: 10 Pieces -
Connection Box,Connection Terminal Block 4x15NegotiableMOQ: 10 Pieces
-
Connection Box,Connection Terminal Block 4x15NegotiableMOQ: 10 Pieces
-
U Type Plastic Terminal Blocks,Terminal ConnectorNegotiableMOQ: 100 Pieces
-
H Type Plastic Terminal Block,Terminal ConnectorNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
LEDISEN
Model Number
MG03 415
Type
DIN
Application
Other, Electric
Specifications
Terminal Connection Box,Connection terminal block 4x15Terminal: Brass material
Base materical:PA66
Cover material: PC

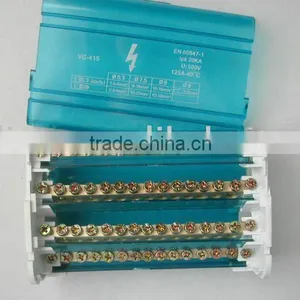

Terminal Connection Box,Connection terminal block 4x15
MG03 connection box is designed for distribution equipment and switchgears;it is usd as bus bar and current terminal in different electrical devices.
Terminal: Brass material
Base materical: PA66
Cover material: PC
Standard:IEC60947-7-1
Frequency: 50 or 60Hz
Rated insulation voltage Ui: 500V
Ipk:20KA, Ie: 125A
Dielectric test voltage at ind.Freq.
For 1min.:2.5kv
Pollution degree:2
| Type | Terminal Rows | Terminals/row | Demensions(mm) |
| MG03-207 | 2 | 7 | 65*45.5*51 |
| MG03-215 | 2 | 15 | 132*45.5*51 |
| MG03-407 | 4 | 7 | 65*89.5*50 |
| MG03-411 | 4 | 11 | 100*89.5*50 |
| MG03-415 | 4 | 15 | 132*89.5*50 |
