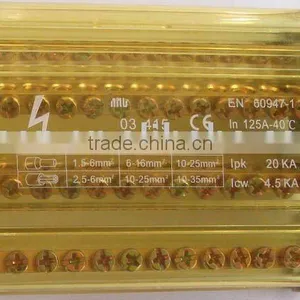

Connection Box,Connection terminal block 4x15
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | LEDISEN | Model Number: | MG03 415 |
Type: | DIN | Application: | Other, Electric |
Product Description
Specifications
Connection Box,Connection terminal block 4X15Terminal: Brass material
Base materical:PA66
Cover material: PC

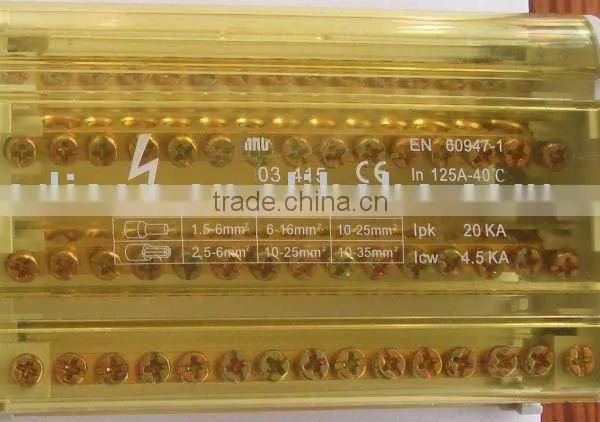

Connection Box,Connection terminal block 4x15
MG03 connection box is designed for distribution equipment and switchgears;it is usd as bus bar and current terminal in different electrical devices.
Terminal: Brass material
Base materical: PA66
Cover material: PC
Standard:IEC60947-7-1
Frequency: 50 or 60Hz
Rated insulation voltage Ui: 500V
Ipk:20KA, Ie: 125A
Dielectric test voltage at ind.Freq.
For 1min.:2.5kv
Pollution degree:2
Type | Terminal Rows | Terminals/row | Demensions(mm) |
MG03-207 | 2 | 7 | 65*45.5*51 |
MG03-215 | 2 | 15 | 132*45.5*51 |
MG03-407 | 4 | 7 | 65*89.5*50 |
MG03-411 | 4 | 11 | 100*89.5*50 |
MG03-415 | 4 | 15 | 132*89.5*50 |
