TEA 2000 Differential Pressure Gauge(hydraulic pressure gauge)

Specifications

TEA 2000 Differential Pressure Gauge(hydraulic pressure gauge)Dimension: 4-3/4" dia.X2-3/16" deep.
Weight: 1 1b. 2 oz.(510g)

TEA 2000 Differential Pressure Gauge(hydraulic pressure gauge)

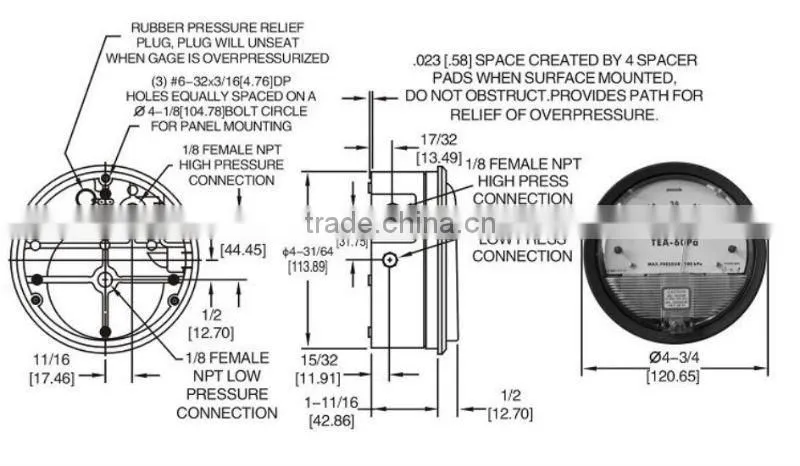

Dimension: 4-3/4" dia.X2-3/16" deep.
Weight: 1 1b. 2 oz.(510g)
Finished: Baked dark grey enamel

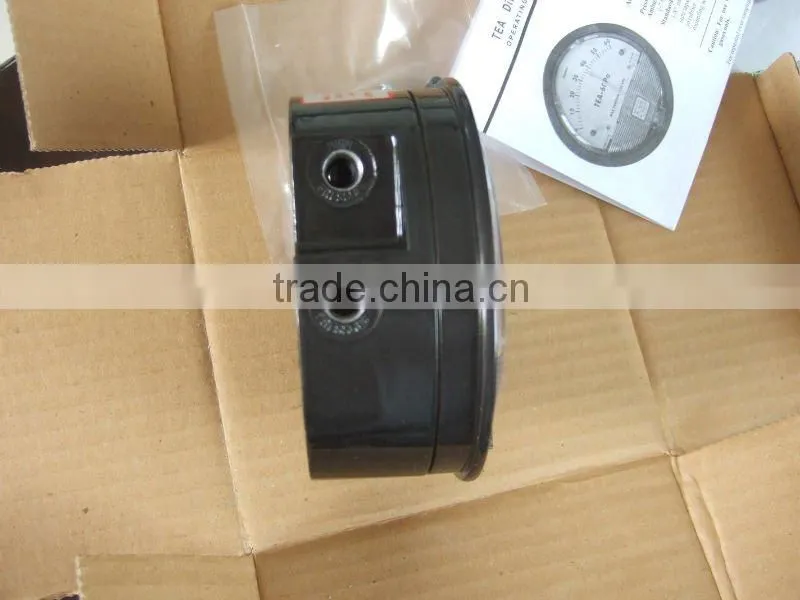

Connection: 1/8" female NPT high and low pressure taps, duplicated, one pair side and one pair back.

Accuracy: Plus or minus 2% of full scale, at 70 F(21.1C)

Pressure Rating:15 PSI (1.03 bar)

Ambient Termperature Range: 20 to 140 F(-7 to 60 degree)

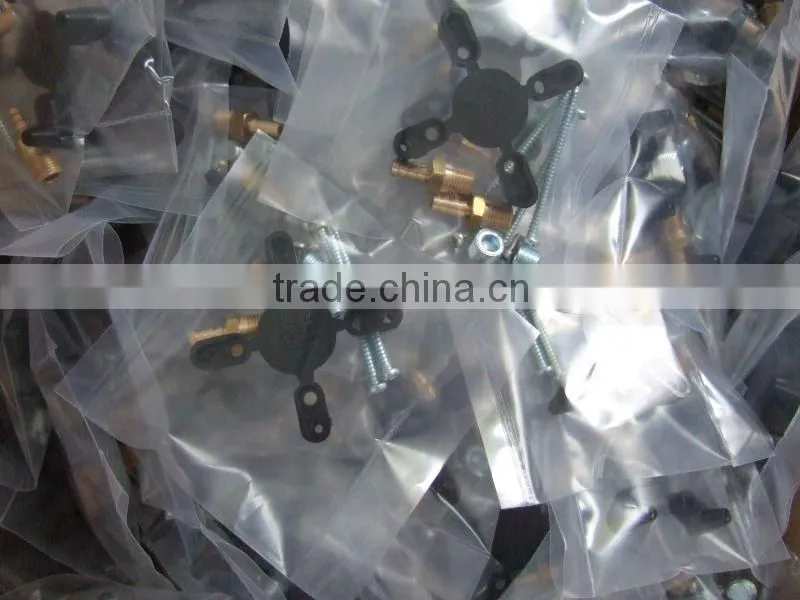

Standard gage accesories include tow 1/8" male NPT plugs for duplicate pressure tapes, two 1/8" male NPT pipe thread to rubber tubing adapters, and three flush mounting adapters with screws.



Caution: For use with air or compatible gases only.

For repeated over-ranging or high cycle rates, contact factory.

Not for use with Hydrogen gas.Dangerous reactions will occur.
