Specifications
NTSM-12ways Distribution Box(Electrical Distribution Box,Plastic Enclosure)1.Cover:ABS,Iron or plastic bottom
2.Flush Type
NTSM-12ways Distribution Box(Electrical Distribution Box,Plastic Enclosure)
Specification:

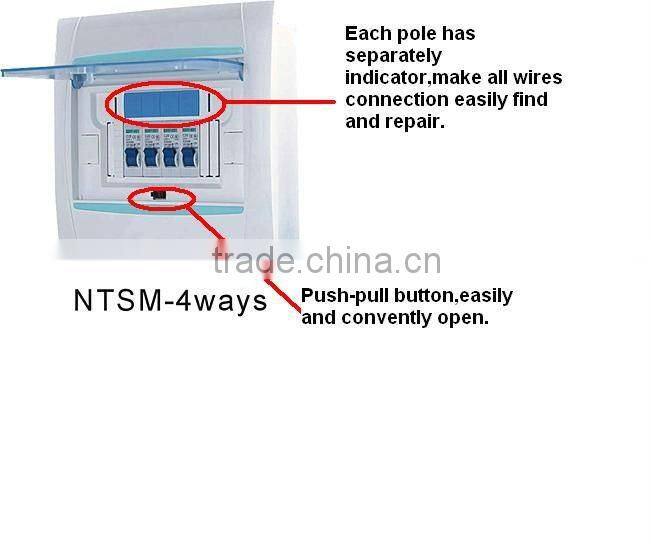

1. Easy to identify: Fashionable design, unique blue panel can be insert at will, indicating the switches direction,
2. Easy to open: Just by gentle push, can easily open the cover
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
4. Easy to see: there are two pieces of night-light lines, easily to see in the dark.
5. Body: Iron and plastic all available
6. Different ways 4-39 are available for choice.
Both the metal bottom and plastic bottom distribution box available.
More product details:

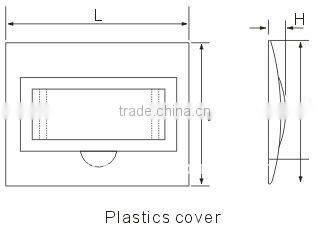

Plastics Cover Dimension
| L | W | H | |
| NTSM-4ways | 150 | 225 | 20 |
| NTSM-6ways | 195 | 225 | 20 |
| NTSM-8ways | 230 | 225 | 20 |
| NTSM-12ways | 300 | 225 | 20 |
| NTSM-18ways | 425 | 225 | 20 |
| NTSM-24ways | 300 | 345 | 20 |
Plastics Base Dimension
| L | W | H | |
| NTSM-4ways | 112 | 200 | 66 |
| NTSM-6ways | 150 | 200 | 66 |
| NTSM-8ways | 184 | 200 | 66 |
| NTSM-12ways | 256 | 200 | 66 |
| NTSM-18ways | 365 | 220 | 76 |
| NTSM-24ways | 257 | 310 | 76 |
