TSM-45ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LEDISEN
Model Number:
TSM-45ways
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TSM-36ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)NegotiableMOQ: 100 Pieces -
TSM-24ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)NegotiableMOQ: 100 Pieces
-
TSM-18ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)NegotiableMOQ: 100 Pieces
-
TSM-15ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)NegotiableMOQ: 100 Pieces
-
TSM-12ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)NegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
LEDISEN
Model Number
TSM-45ways
Protection Level
Other, IP44
Type
Distribution Box
Specifications
TSM-45ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)1.easy installation
2.Plastic bottom
TSM-45ways Flush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
TSM flush mount plastic distribution box, brown cover, surface mount and flush mount avaliable
Specification:
1. Fashionable design
2. Easy to open:can easily open the cover and easy installation.
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
4. surface mounting type
6. Different ways 4-36 are available for choice.

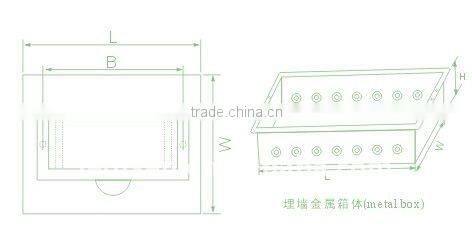

Metal base size
Iron Base Dimension
| L | W | H | |
| 2ways | 99 | 140 | 60 |
| 4ways | 107 | 190 | 85 |
| 6ways | 143 | 190 | 85 |
| 8ways | 179 | 190 | 85 |
| 10ways | 222 | 200 | 85 |
| 12ways | 250 | 190 | 85 |
| 15ways | 306 | 190 | 85 |
| 18ways | 361 | 217 | 85 |
| 24ways | 252 | 310 | 85 |
| 36ways | 290 | 475 | 85 |
| 45ways | 473 | 326 | 76 |

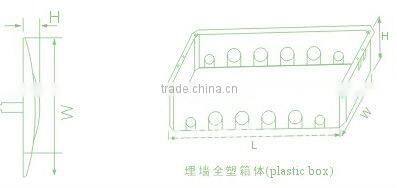

Dark plastic crates against the wall-size
Plastics Base Dimension
| L | W | H | |
| 2ways | 90 | 140 | 60 |
| 4ways | 112 | 200 | 66 |
| 6ways | 150 | 200 | 66 |
| 8ways | 184 | 200 | 66 |
| 10ways | 222 | 200 | 66 |
| 12ways | 256 | 200 | 66 |
| 15ways | 310 | 200 | 66 |
| 18ways | 365 | 220 | 76 |
| 24ways | 257 | 310 | 76 |
| 36ways | 293 | 455 | 76 |
| 45ways | 473 | 326 | 76 |

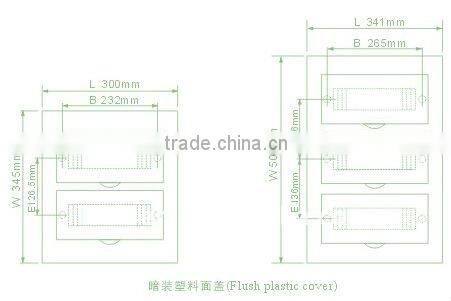

Dark plastic cover surface size
Iron Base Dimension
| L | W | H | B | |
| 2ways | 95 | 150 | 27 | 75 |
| 4ways | 136 | 222 | 27 | 86 |
| 6ways | 172 | 222 | 27 | 122 |
| 8ways | 208 | 222 | 27 | 158 |
| 12ways | 280 | 222 | 27 | 230 |
| 15ways | 334 | 222 | 27 | 283 |
| 18ways | 398 | 252 | 27 | 338 |
| 24ways | 300 | 345 | 27 | 232 |
| 36ways | 341 | 503 | 27 | 265 |
| 45ways | 365 | 505 | 27 | 285 |
