automatic clothes rack hanger making machine

Specifications

automatic clothes rack hanger making machine
1. Wire : 1.8-2.8mm ;
2. Power : 380V,
3. Motor watt:1.5KW;
4. .Weight :750kgs

automatic clothes rack hanger making machine

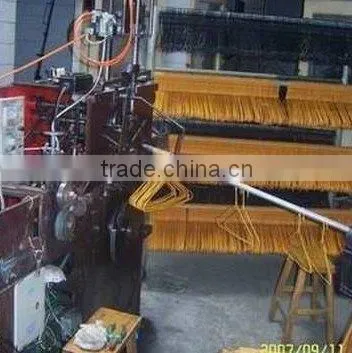

This machine is automatic hanger machine,can produce various shapes and size hangers.it can output 28hangers min. the diameter of the steel can be from1.6mm to 2.7mm.. the Zinc galvanized hangers size have:13”,14”,15”,16”,18”.20”(including 16”-18”gentlemen hangers).the voltage can be both 380v three phase and 220v two phase.380v that’s 1.5kw and 3kw for 220v. the weight of this machine is 750kg including the steel carrier and the hangers carrier.

Main Technical Parameter:



Model:  CYWH002

Dia. of wire:   1.6-2.8mm

Sizes of hanger:43-66mm

Voltage:380/220V

Weight:750kg

Dimensions:1800mm*800mm*1650mm
