Help CenterXFY18/4-L Water Mist Fire Fighting With Chinese Lifan Engine
Related Products
-
Fifi Pump BJ-9B With Diesel EngineNegotiableMOQ: 1 Set -
Portable Fire Fighting Water Pump With Diesel Engine BJ-20BUS$ 1 - 3,000MOQ: 1 Piece
-
14 HP Portable Fire Pump With Kolher EngineNegotiableMOQ: 1 Set
-
Centrifugal Pump BJ-15A Protable Fire Fighting PumpNegotiableMOQ: 1 Set
-
Housing Fire Fighting Pump With Kohler Engine BJ-20A-KUS$ 1 - 5,000MOQ: 1 Set
1. Descriptions
XFY 18/4-L Water mist fire fighting pump is powered by LIFAN engine and BROOWE pumps. It has feature of compact structure,start convenient,fast water,low weight and reliable,so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade,forest fire brigade,towns,rural areas, the mining industry and obligation fire brigade.
2. Water mist fire fighting technical parameters:
Model |
XFY18/4-L |
Size |
670*640*480mm |
Engine Model |
LF170 |
Power |
7HP/3600rpm/Min |
Starting way |
Recoil/Electric start |
Pump set |
BROOWE |
Pump set model |
FM430 |
Max flow |
40L/Min |
Rated pressure |
40Bar |
Speed |
650 rpm |
Transmission way |
Gear box |
Transmission ratio |
6:1 |
Straight flow state range |
15-20m |
Water mist state range |
12m |
Hose length |
30-40m |
Inside dia of the hose |
Φ13 |
Outside dia of the hose |
Φ20.5 |
Length of nozzle |
350mm |
Liquid |
water/foam |
Foam tank |
15L |
Net weight |
88kgs (include the steel coil) |

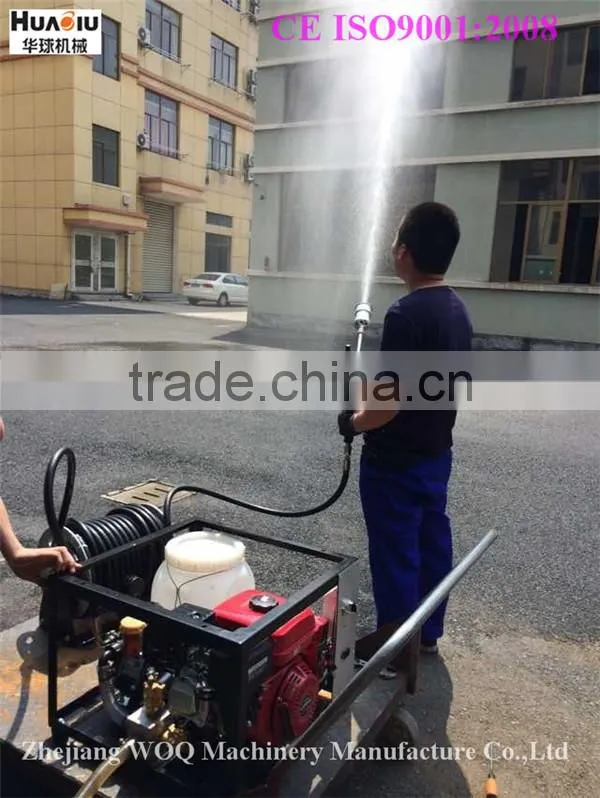

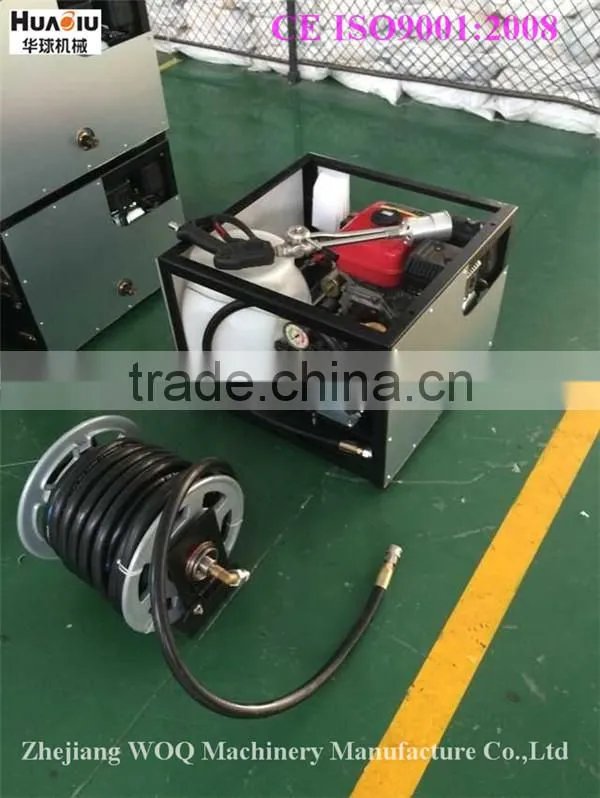

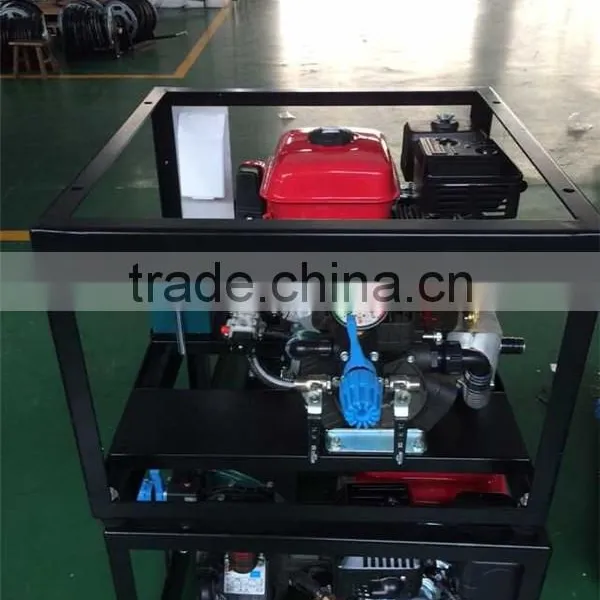

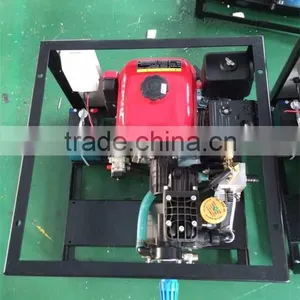

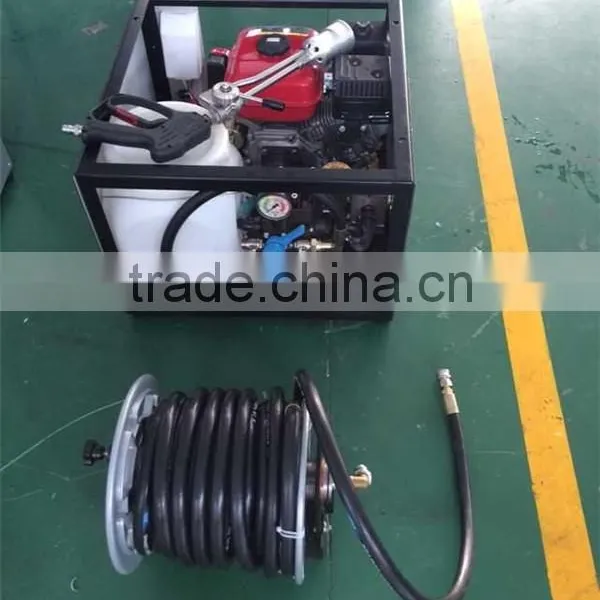

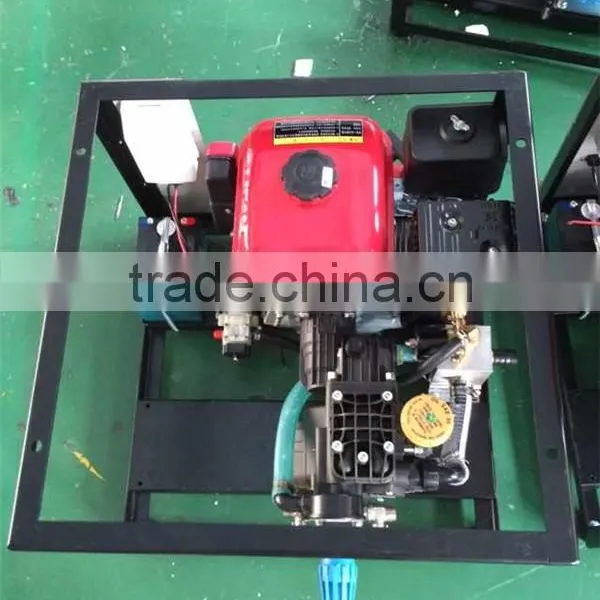

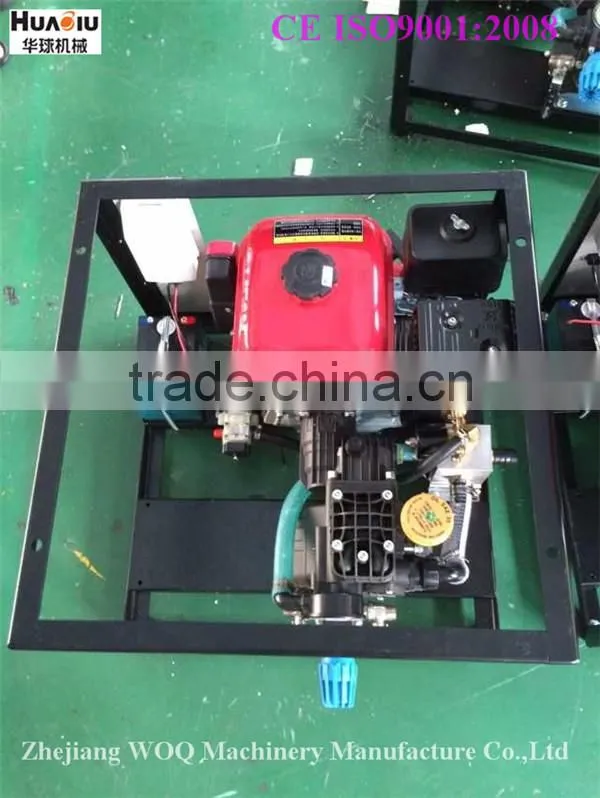

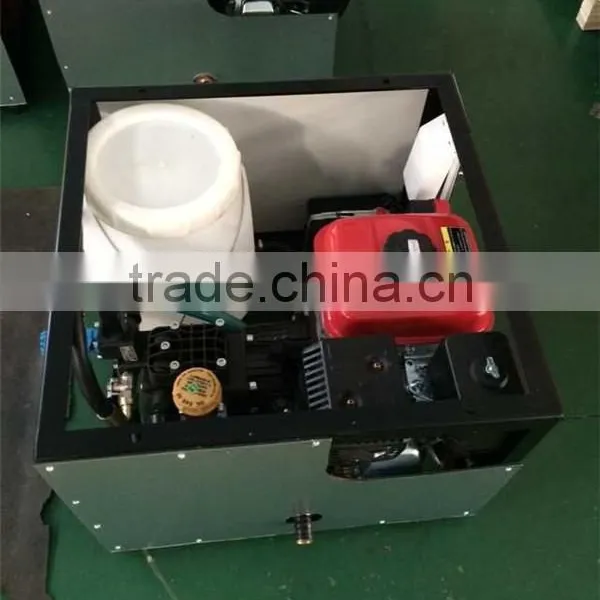

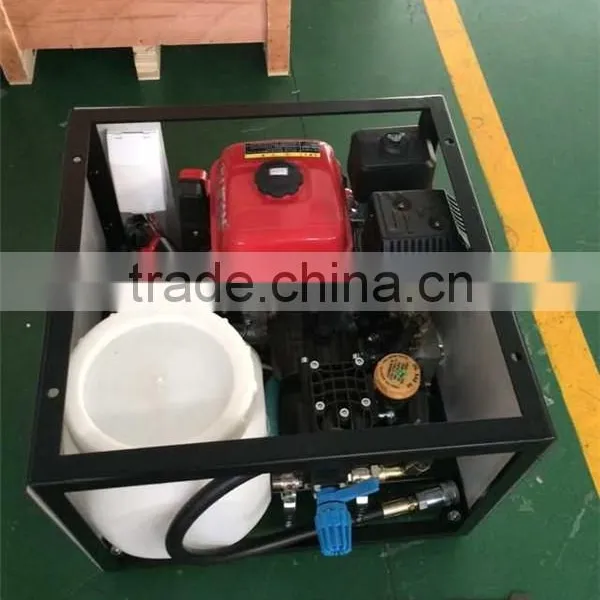

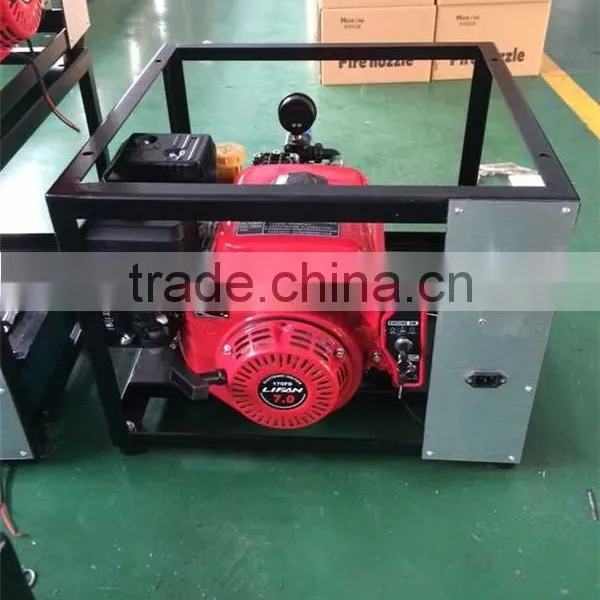

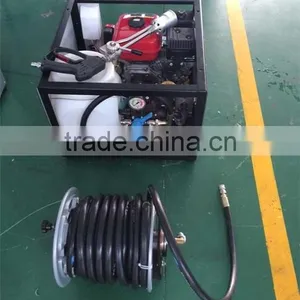

3. Water mist fire fighting pump pictures
4.Water mist fire fighting pump packing and delivery:
Packing details: Pumps will be packed in plywood case with dust-proof
Delivery: within 4 weeks after the deposit.
5.Water mist fire fighting pump workshop pictures
6.Certificates
