Help CenterJBQ6.5/23 BJ-20B Diesel Engine Driven Fire Pump
Related Products
-
BJ-20A Gasoline Engine Portable Fire Fighting PumpUS$ 1 - 5,000MOQ: 1 Set -
Diesel Pumps BJ-9BUS$ 1 - 1,000MOQ: 1 Set
-
JBQ7.0/25 Gasoline Water Pump With 2-outletsUS$ 1 - 4,000MOQ: 1 Set
-
XFY18/4-L Water Mist Fire Fighting With Chinese Lifan EngineNegotiableMOQ: 1 Set
-
Fifi Pump BJ-9B With Diesel EngineNegotiableMOQ: 1 Set
1. JBQ6.5/23 BJ-20B diesel engine driven fire pump is powered by R2V840 diesel engine and the single-level centrifugal pumps of Zhejiang WOQ Machinery Manufacture. The hand carrying mobile fire pump can be divided into electric start styles. It can be self-charge during work. It has feature of compact structure,start convenient,fast water,low weight and reliable,so that is more suitable for using in the narrow roads. It is the equipment for fire extinguishing used in fire brigade, professional fire brigade,forest fire brigade,towns,rural areas, the mining industry and obligation fire brigade.
2. JBQ6.5/23 BJ-20B diesel engine driven fire pump technical parameters:
Appearance dimension: 680×580×650mm;
Pump intake : Φ65mm;
Device weight: ≤102kg
Maximum output power:22Hp/3600r/min
Starting way :electric starter;
Rated flow pump : 1400L/min/0.7Mpa;
Pump priming time: ≤20s;
Maximum suction depth: 7m;
Pump lift: 72m

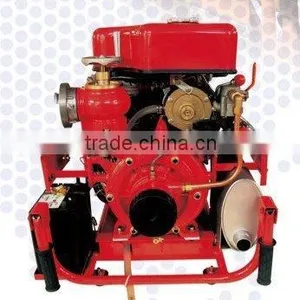

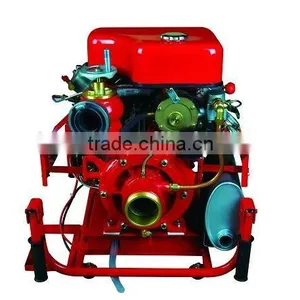

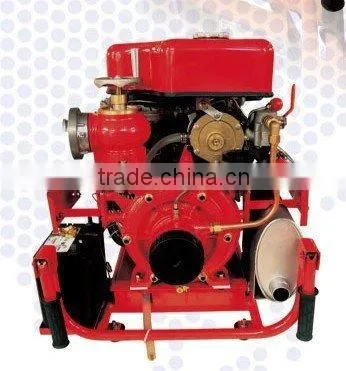

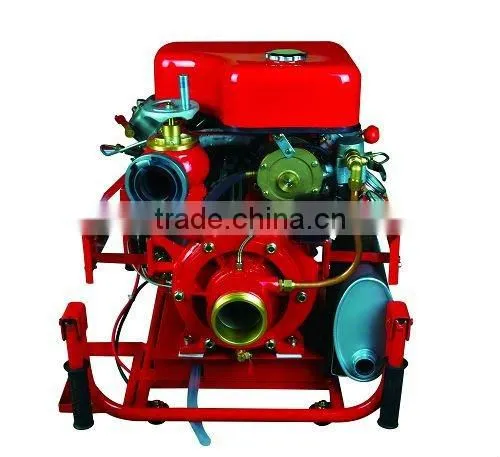

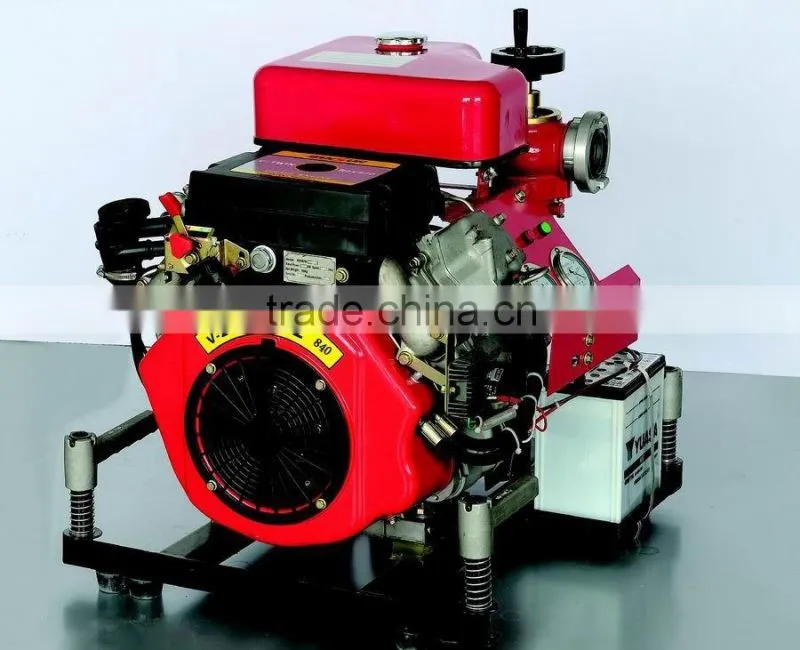

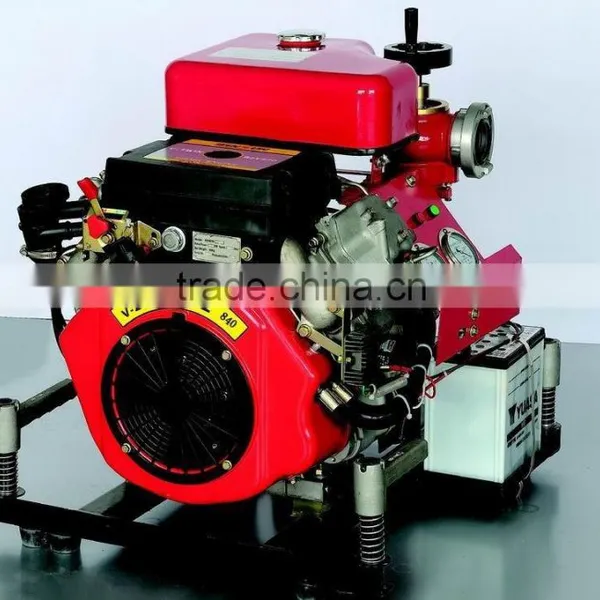

3. JBQ6.5/23 BJ-20B diesel engine driven fire pump pictures

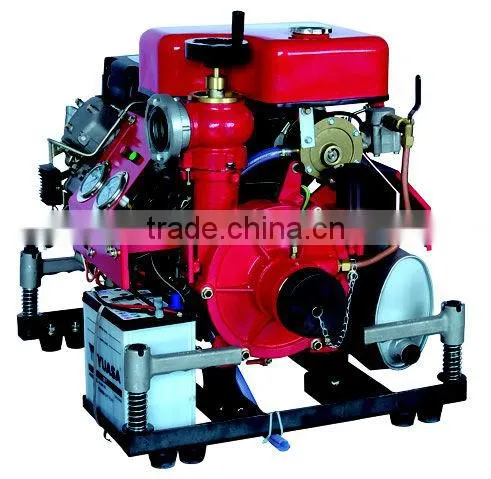

4. JBQ6.5/23 BJ-22B diesel engine driven fire pump pictures
5. JBQ6.5/23 BJ-20B diesel engine driven fire pump CE, ISO,etc
