1.5m/s Passenger Elevator

1.5m/s Passenger Elevator thumbnail-1
1.5m/s Passenger Elevator thumbnail-2
1.5m/s Passenger Elevator thumbnail-3
1.5m/s Passenger Elevator thumbnail-4
1.5m/s Passenger Elevator thumbnail-5
1.5m/s Passenger Elevator thumbnail-6
1.5m/s Passenger Elevator photo-1
1.5m/s Passenger Elevator photo-2
1.5m/s Passenger Elevator photo-3
1.5m/s Passenger Elevator photo-4
1.5m/s Passenger Elevator photo-5
1.5m/s Passenger Elevator photo-6
US$ 10,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
composed
Model Number:
KC-KJ-630 VVVF/1.0-PM-86
Contact Supplier Request Quote Chat Now
Shanghai Kangchi Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name composed
Model Number KC-KJ-630 VVVF/1.0-PM-86
Usage Residential Elevators
Drive Type AC, DC, Hydraulic, Other, Screw, AC, DC, Hydraulic, Rack & Pinion, Screw
Elevator Type Passenger Elevators
Passenger elevator

Composed Small machine room passenger elevator

small machine room passenger elevator applies the rational construction layout.  Machine room is about the same as the well size.  It effectively saves the occupation rate of machine room space.  Small machine room design grants the elevator to more easily merge with the building.  It greatly reduces the restrictions of the building outline design It reduces the building space cost.  What is more, it inspires infinite creativity of the building designers.


1.Design easily and freely enters into numerous buildings
2. Environment protection type traction system with fierce motives
3.Compact control cabinet with abundant strength

Elevator Parameter

 Passenger Elevator Parameter:

Load

(KG)

Speed

(m/s)

Cabin Size: W*D*H(mm)

Door Opening: W*H

Shaft Size: W*D

Pit Depth

OH Height

320

1.0

1200*850*2400

700*2100

1630*1450

1400

4050

1.5

1450

4150

1.75

1500

4200

450

1.0

1400*850*2400

800*2100

1830*1450

1400

4050

1.5

1450

4150

1.75

1500

4200

630

1.0

1400*1100*2400

800*2100

1830*1700

1400

4050

1.5

1450

4150

1.75

1500

4200

800

1.0

1400*1350*2400

800*2100

1830*1950

1400

4100

1.5

1450

4200

1.75

1500

4250

1000

1.0

1600*1400*2400

900*2100

2050*2000

1400

4100

1.5

1450

4200

1.75

1500

4250

1250

1.0

1800*1600*2400

1000*2100

2250*2200

1400

4100

1.5

1450

4200

1.75

1500

4250

1600

1.0

1900*1800*2400

1100*2100

2400*2400

1400

4100

1.5

1450

4200

1.75

1500

4250

6 person elevator,6 person passenger elevator,8 person passenger elevator,auto lift,brand of passenger elevator,cheap elevator,china elevator,china residential elevator,clean elevator

,composed brand elevator,customized elevator,electric elevator,elevator 630kg,elevator brand name,elevator brands





Standard Elevator

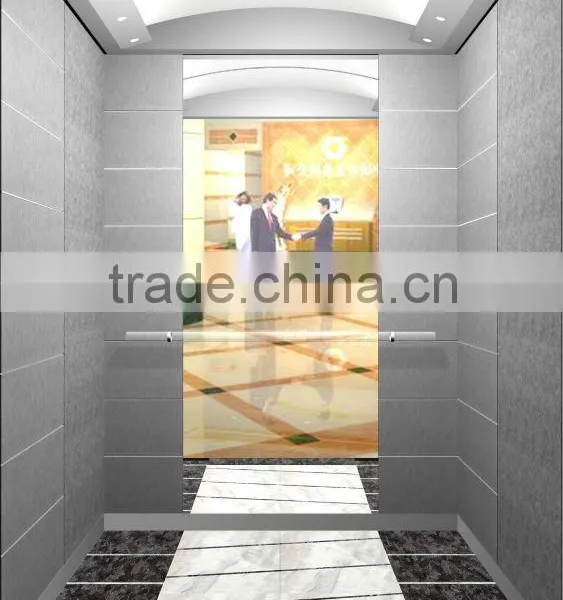

Elevator Cabin:

1.5m/s passenger elevator1.5m/s passenger elevator1.5m/s passenger elevator

1.5m/s passenger elevator

1.5m/s passenger elevator

1.5m/s passenger elevator

1.5m/s passenger elevator

1.5m/s passenger elevator

1.5m/s passenger elevator
