Home > Products > New Products > Double Acting Bush End Type 2.5" * 20" Standard and Non-standard Welded Hydraulic Cylinder

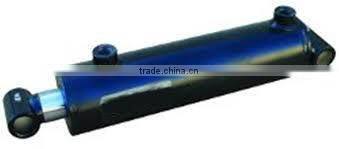

Double Acting Bush End Type 2.5" * 20" Standard and Non-standard Welded Hydraulic Cylinder
- qingdao
- T/T Money Gram Credit Card
You May Like
-
New Product Double Acting Used Hydraulic Cylinder Telescopic Hydraulic Cylinder for Tipper Truck
-
Bi-direction Adjustable Hydraulic Cylinder Y70S-600
-
Comprassion Adjustable Hydraulic Cylinder Y70S-465
-
Bi-direction Adjustable Hydraulic Cylinder Y70S-465
-
Fitness Used Adjustable Hydraulic Cylinder 440K
-
Hydraulic Cylinder for 37 Ton Log Splitter
Product Details
| Standard or Nonstandard | Nonstandard | Structure | General Cylinder | |
| Power | Hydraulic | Body Material | Steel | |
| Maximum Stroke | 20 | Shaft Diameter | 2.5" | |
| Place of Origin | Shandong, China | Model Number | HMW2520 | |
| Brand Name | Salid |
Product Description
double acting bush end type 2.5" * 20" standard and non-standard welded hydraulic cylinder
| 1.Rod End Cross Tube | High tensile steel | ||||||
| 2.Gland | Ductile iron ASTM A536 65-45-12 | ||||||
| 3.Rod | High tensile SAE C1045, ground & polished hard chrome plated rod | ||||||
| 4.Tube Weldment | High tensile cold drawn tube, precision honed for extended seal life | ||||||
| 5.Port Plug | Plastic | ||||||
| 6.Grease Fitting | M6 (standard included) | ||||||
| 7.Base End | High tensile cast steel | ||||||
| 8.Piston nut | Jam nut, grade 8, high tensile zinc-plated | ||||||
| 9.Piston | Ductile iron ASTM A536 65-45-12, type A & type B piston available | ||||||
| A. Piston ID seal(B type piston) | O-ring(1)+back up ring(2) | ||||||
| A. Piston ID seal(A type piston) | O-ring(1)+back up ring(2) | ||||||
| B. Piston OD seal(B type piston) | Bronze impregnated PTFE piston ring w/rectangular CS nitrile expander | ||||||
| B. Piston OD seal(A type piston) | Polyurethane U-cap | ||||||
| C. Tube seal | O-ring(1)+back up ring(1) | ||||||
| D. Rod seal | Polyurethane U-cap | ||||||
| E. Wiper | Metal canned wiper | ||||||
Custom Hydraulic Cylinder
We can supply customized hydraulic cylinders with drawings or samples, or if you could provide following specification:
•diameter of bore & rod
•stroke
•mounting style
•mounting distance
•working pressure
•ports
•seals
•special modifications.
Widespread Application
We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:
•Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.
•Metallurgical Machinery cylinders for: decelerator, tile press etc.
•Mining Machinery cylinders for: crasher, coal cutter etc.
•Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.
Qingdao Salid Machinery CO.,LTD. | |
Product | |
tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting, | |
Material | Tube — Cold Drawn Precision seamless Tubing Mounts — Trunnion with angular Swivels |
Application | Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue, Forestry & Logging,Mining & Rock Crushing,Oil & Gas, Snow & Ice Control,Waste Management and Material Recycling Industry , Engineering Equipment, Special Vehicle |
Feature | 1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted |
Payment | T/T;L/C,WESTERN UNION. |
Port | Qingdao ,China |
Quotation | According to the specific request |
MOQ | According to the product |
Packaging | metal case;plywood case;carton or as requirement |
Delivery time | 30days upon receipt of 30% deposit; or upon receipt of relevant L/C; |
CONTACT:
Amy Wang
Qingdao Salid Machinery Co., Ltd.
Tel:+86-532-87659877
FAX:+86-532-81157731
MOBILE:+86-15854247176
SKYPE: 182
email: hwang at
Please feel free to contact me at any time.
