1000KG-5000KG Hydraulic Freight Lift Goods Elevator

   Hydraulic freight lift goods elevator

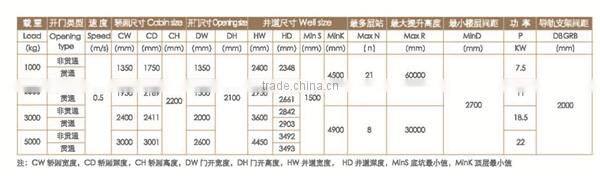

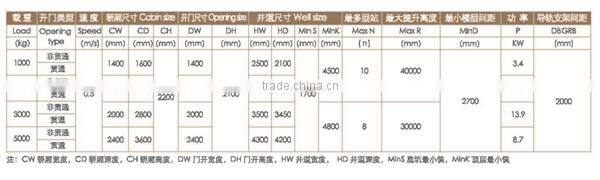

Specifications

Freight Elevator
1.capacity:1000kg~5000kg
2.speed:0.25-0.5m/s
3.CE&ISO9001:2008 Certification

Composed brand freight elevator introduce:

• It highly improved the function and quality in using advanced micro-computer control technology and combining the technology.
• It lowered the faults rate.
• Since it used VVVF, the operating comfortable sensation can also be the same perfect with passenger elevator.

The advantage:

1.The solution of Freight elevator combines the high reliability of gearless synchronized

2.  magnetic traction machine, which has strong functions and excellent performances.

3.Its very easy for big elevators to lift the cargo of 5000kg.

4.The users offer the telephone line interface nearby the controller, which can make the long-

5. distance monitoring center realize its long-distance guidance for elevator maintenance.

5.The maximum capacity can reach 5000kg.

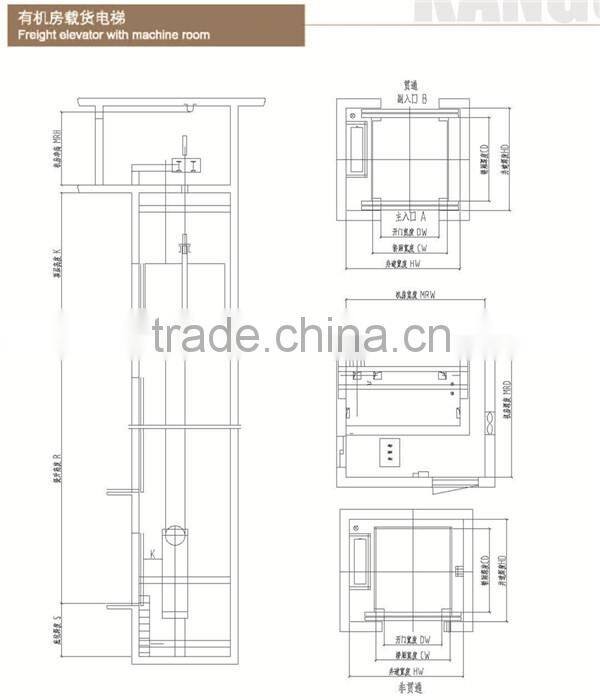

Composed brand freight elevator drawing with machine room:

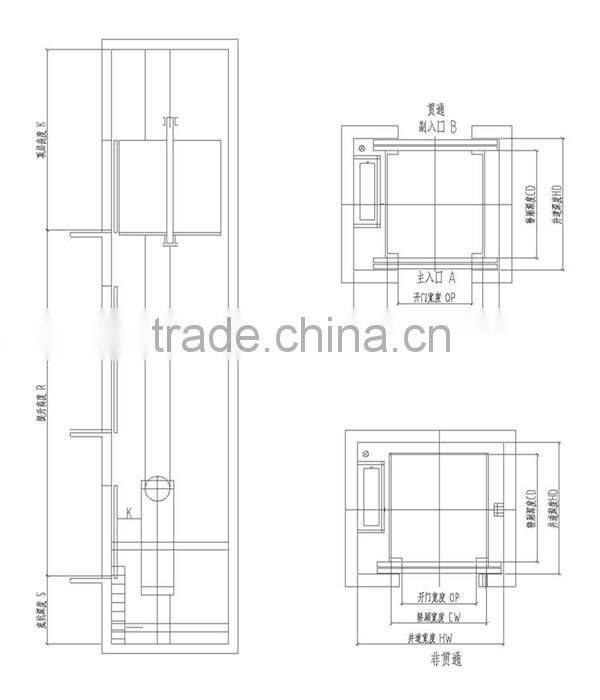

Composed brand freight elevator drawing machine room less:

Manufacture: Shanghai Kangchi is a special elevator manufacture with more than 15 years experience and hundreds technology. We are produce the elevator as your requirement and make sure the elevator is match with the around environment. Of course, Shanghai Kangchi supply the OEM for many famous elevator enterprise.

Sales: Shanghai Kangchi has its own sales teams .  Domestic companies in major cities to establish a system of marketing sales network. Currently, the products not only successfully sold 23 provinces , 5 municipalities, 2 Special Administrative Regions and 4 Direct-controlled municipalities, but also exported to Russia, Malaysia, Pakistan, Indonesia,  Australia, Myanmar, Laos, Iran, Chile, Colombia  and other countries and regions.

Installation: Shanghai Kangchi has their own installation team and establish installation team at the main cities. They have more than ten years of experience in installation in average.

Service:    All-weather 24 hours service

Training of professional service team solve your trouble.

Multi channels monitor elevator to eliminate the operation fault.

Regular maintenance or Remote detection bring your happiness life.

And actively absorb the international advanced technology, and strive to create outstanding national brand. Kangchi Elevator are full of confidence with you to create a more brilliant future.

GENERAL BUSINESS FAQ

1, Regarding any inquiry from Alibaba, Kangchi Elevator will provide you the prompt feedback and professional solution/quotation within 24 hours.

2, All above specifications are based on Kangchi Elevator . standard configuration and only for equipment price which does not include adjustment, assembling after goods arrived at the destination/customer's jobsite.

3, Terms of payment: 30% down payment by TT within 3 days after order released to Kangchi Elevator , balanced by T/T within 7 days before shipment.

4, Lead time: 25 days from the date in receipt of down payment, confirmation of Specification & Layout Drawings.

5, Guarantee:  The quality guarantee is 12 months after the delivery.

6, Quotation validity: One month since the date of release.
