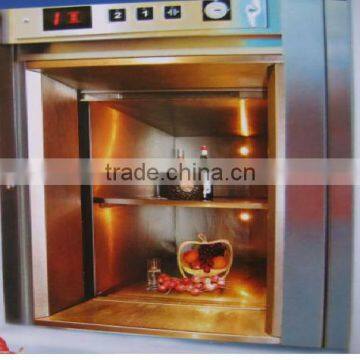

Help Center200 KG Restaurant Dumbwaiter Food Elevator
Related Products
-
Clean Restaurant Elevator, Cheap Dumbwaiter,US$ 1,000 - 25,000MOQ: 1 Unit -
Home Use Food Elevater DumbwaiterUS$ 1,000 - 25,000MOQ: 1 Unit
-
Home Use Food Elevater DumbwaiterUS$ 1,000 - 25,000MOQ: 1 Unit
-
200KG Food Elevator DumbwaiterUS$ 10,000 - 25,000MOQ: 1 Unit
-
Dumbwaiter Elevator, Kitchen Elevator,US$ 10,000 - 25,000MOQ: 1 Unit
It adopts PLC or Mico-computer control. The types and size are all , the structure is novel and manufacture is superior. It is safe, reliable, operate steadily and convenient. The cabin and hall door are made in imported hairline stainless steel , it is luxury and beautiful, used in hospital, restaurant and some other departments. It is welcome in lots of users.
Advantage feature
The indicator function of door situation: when the door arrived at the station and opens the door, the digital display shows the elevator is in this station and also the door is opening.
· Electric lock: the electric lock in the main floor calling board is used to start and turn off the control circuit of the elevator.
· The function of protecting operation fault: when it is over 10 seconds than normal operation period, the elevator stops operate to prevent from burning out the motor.
· The fault self-display function: it shows the diagnosed faults in code
· The fault self-diagnosed function: this function can diagnose the faults and the cause.
· The function of self-recovery fuse wire: it used to control signal circuit. If there is short circuit, the fuse wire will connect automatically.
· The function of preventing the adhesion of contactor: if the power of the contactor is cut but the connection point is not cut, this function can prevent from re-operating, to ensure safety.
· the function of responding to calling: when you pres the button of the calling board, the indicator light is on, after arriving at the station, the indicator lift is off.
· The buzzing prompt function: it has the function of buzzing.
· The direction showing function: the direction of being is showed in light arrow.
· Storey displaying function: the storey of which the elevator arriving is showed in digital.
Dumbwaiter construction drawing and parameter.
load(kg) | lift size(mm) | well size | door opening | overhead height | windowsill height | |
wid*dep | wid*dep | |||||
100 | 600*600*800 | 1100*800 | 950*650 | 700*960 | 3200 | 700 |
100 | 700*700*800 | 1200*900 | 1050*1050 | 800*960 | 3200 | 700 |
100 | 800*800*800 | 1300*1000 | 1150*1150 | 900*960 | 3200 | 700 |
200 | 900*900*800 | 1400*1100 | 1250*1250 | 1000*960 | 3200 | 700 |
200 | 1000*1000*800 | 1500*1200 | 1350*1350 | 1100*960 | 3200 | 700 |
200 | 800*800*1000 | 1300*1000 | 1200*1200 | 900*960 | 2800/3600 | |
200 | 900*900*1000 | 1400*1100 | 1300*1300 | 1000*1160 | 2800/3600 | |
200 | 1000*1000*1000 | 1500*1200 | 1400*1400 | 1100*1160 | 2800/3600 | |
250 | 1000*1000*1200 | 1500*1200 | 1400*1400 | 1100*1360 | 3000/4000 | |
300 | 1000*1000*1200 | 1700*1200 | 1400*1400 | 1100*1361 | 3000/4000 | |
300 | 1000*1000*1200 | 1500*1200 | 1400*1500 | 1100*1362 | 3000/4000 | |
Shanghai Kangchi Mechanical & Electrical Equipment Co., Ltd was established in 2002, is a set design , manufacture, sales, installation and service in one of the modern lift production enterprises, products various type of elevators, is the China Elevator Association Member. Kangchi is located in the center of Yangtze River Delta, 30 minutes distance to Pudong Airport, 1 hour reach Yangshan Deep-Water Port. Shanghai.
Service
As one of the leader of manufacturer for customized elevator, Shanghai Kangchi Elevator focus on stringent safety criterion in international elevator industry. In order to provide professional services for the modernization market, Shanghai Kangchi Elevator has built a professional modernization team with experienced and skilled engineers. According to the various special requirements from the clients, Shanghai Kangchi Elevator will provide more reliable, more maturity and more economy solutions.
Installation
The final assembly of elevators are conducted on site, which is the most important chain in assembly. We can send professional project manager to be responsible for internal planning, coordination, distribution of labor, project quality management and safety management of the installation project. Prior to the launch of each project, the project manager shall hold internal inaugural meeting to develop construction scheme and exchange technical documentations, and develop emergency scheme according to actual situations, so as to guarantee the project is completed in line with quality requirements and without delay. We constantly develop the latest elevator installation workmanships in order to remain at the world-leading level. Compared with traditional elevator installation workmanships, installation without scaffold saves a lot of trouble in erecting and dismantling scaffolds, standardizes installation procedures, shorten the installation period and improve its quality. Shanghai Kangchi Elevator will provide you with best product quality, best project quality and best service quality.
Maintenance
We have always attached great importance to the development of maintenance technologies. And, in the light of properties and application environment of different elevators, we has developed unique maintenance procedures as well as special computer and tools. In addition to routine maintenance, we will inspect your elevator periodically with special presumptive diagnostic technology and develop personalized maintenance scheme according to your elevator’s operation conditions, to protect against possible troubles and maximize its operation time.
Renewal and Alteration
We will appropriately apply new technology, feature and material to in-service elevator to expand its functions, improve operation reliability and traveling comfort, and further satisfy special demands of customers.
And actively absorb the international advanced technology, and strive to create outstanding national brand. Kangchi Elevator are full of confidence with you to create a more brilliant future.
GENERAL BUSINESS FAQ
1, Regarding any inquiry from Alibaba, Kangchi Elevator will provide you the prompt feedback and professional solution/quotation within 24 hours.
2, All above specifications are based on Kangchi Elevator . standard configuration and only for equipment price which does not include adjustment, assembling after goods arrived at the destination/customer's jobsite.
3, Terms of payment: 30% down payment by TT within 3 days after order released to Kangchi Elevator , balanced by T/T within 7 days before shipment.
4, Lead time: 25 days from the date in receipt of down payment, confirmation of Specification & Layout Drawings.
5, Guarantee: The quality guarantee is 12 months after the delivery.
6, Quotation validity: One month since the date of release.
