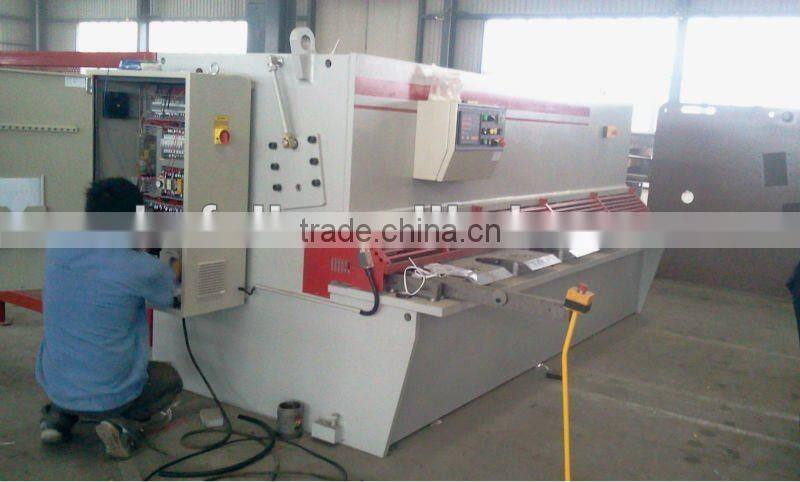

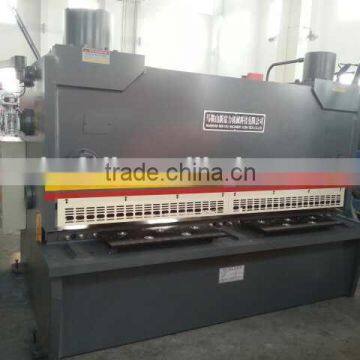

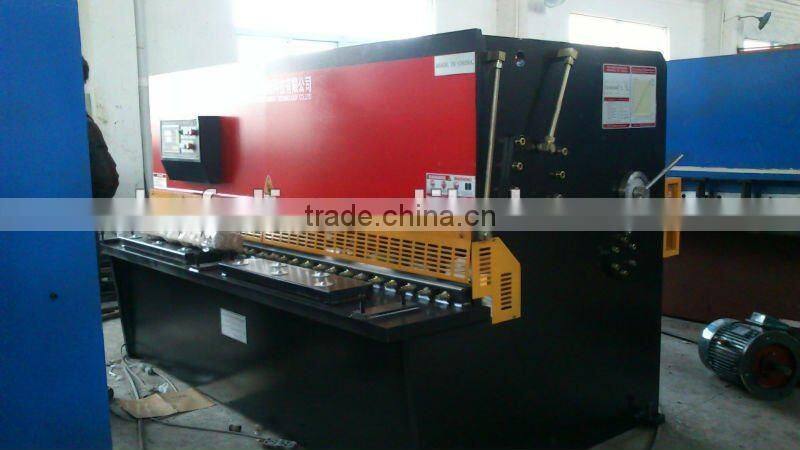

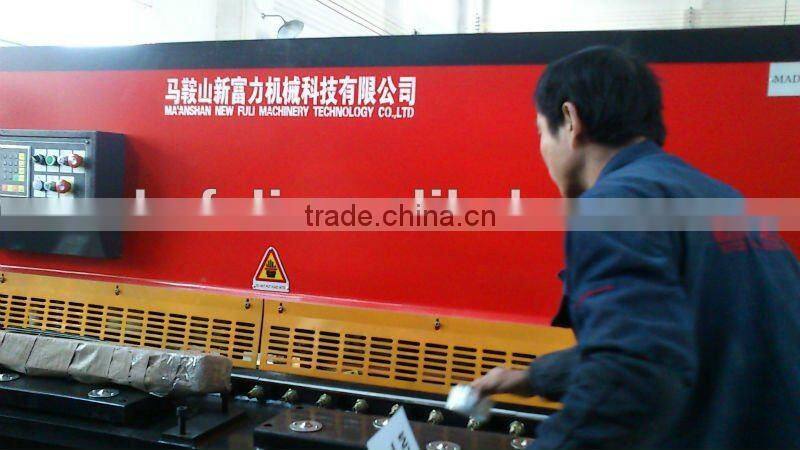

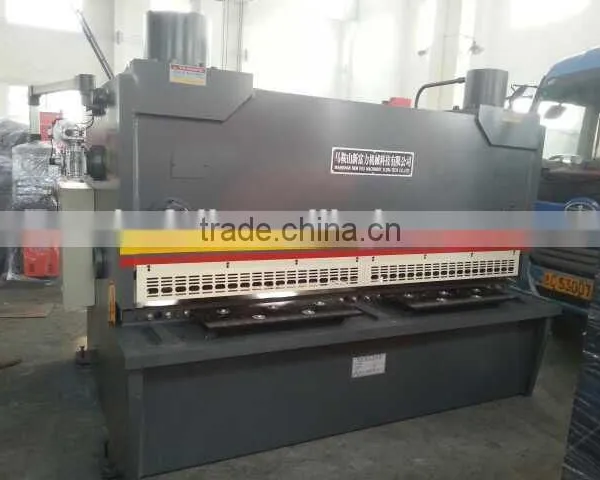

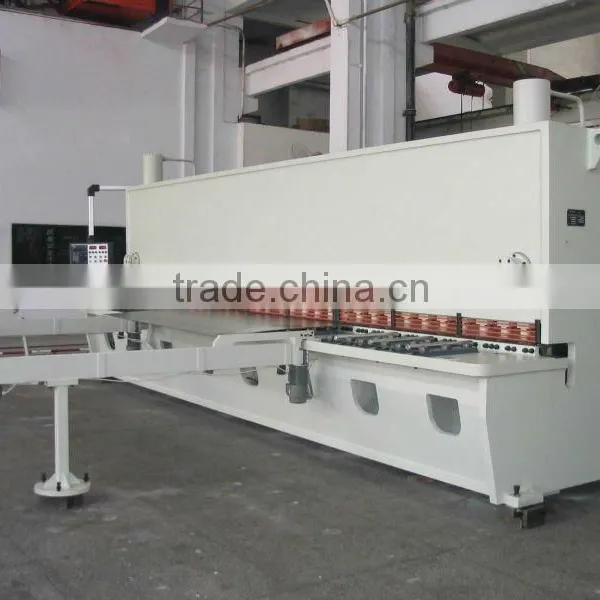

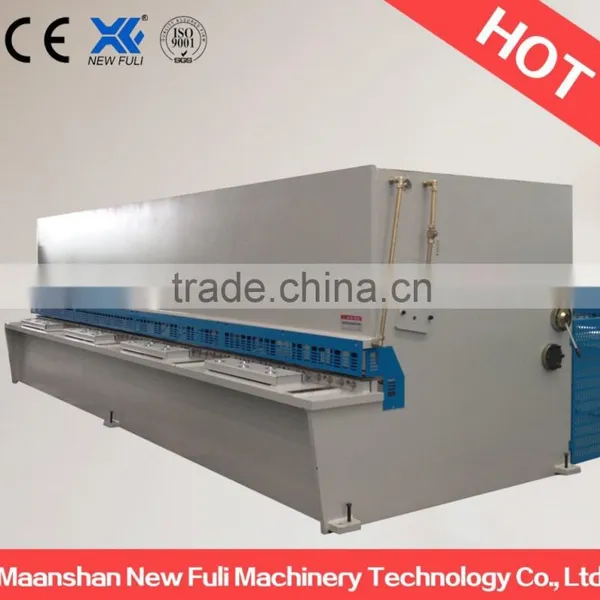

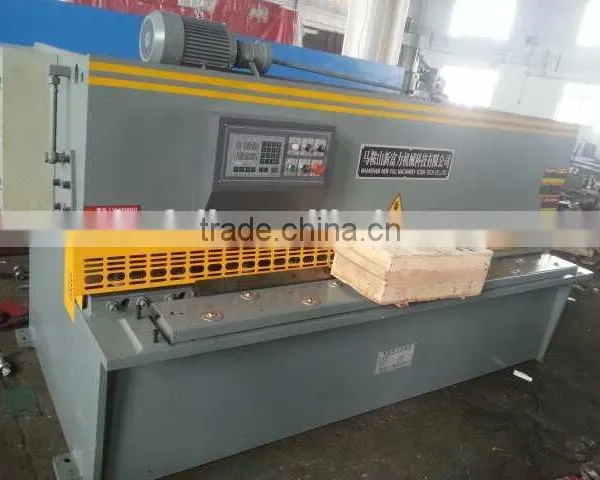

shearing machine, matel guillotine cutter
The machine body adopts integral welded construction which is tempered in furnace;
Hydralic transmission and nitrogen gas cylinder return stroke;
Equipped with light alignment device which can steplessly adjust the stroke of upper rest;
Equipped with fence type protective device for safety;
Length of backgauge and shearing times can be read by digital display device.
|
Model |
Maximum shearing thickness mm |
Maximum shearing width mm |
Shearing angle mm |
Sheet strength n/mm2 |
Backgauge station mm |
Motor Power kw |
Overall dimensions £¨L¡ÁW¡ÁH£© mm |
Weight kg |
| QC12Y-4x2500 | 4 | 2500 | 130 | 450 | 600 | 4 | 3100x1405x1500 | 4300 |
| QC12Y-4x3200 | 4 | 3200 | 130 | 450 | 600 | 5.5 | 3800x1600x1620 | 5800 |
| QC12Y-4x4000 | 4 | 4000 | 130 | 450 | 600 | 5.5 | 4600x1700x1850 | 7500 |
| QC12Y-6x2500 | 6 | 2500 | 130 | 450 | 600 | 7.5 | 3100x1580x1550 | 5800 |
| QC12Y-6x3200 | 6 | 3200 | 130 | 450 | 600 | 7.5 | 3800x1600x1620 | 6800 |
| QC12Y-6x4000 | 6 | 4000 | 130 | 450 | 600 | 7.5 | 4600x1700x1850 | 8500 |
| QC12Y-6x6000 | 6 | 6000 | 130 | 450 | 600 | 7.5 | 6650x2500x1980 | 18000 |
| QC12Y-8x2500 | 8 | 2500 | 130 | 450 | 600 | 11 | 3140x1590x1570 | 5800 |
| QC12Y-8x3200 | 8 | 3200 | 130 | 450 | 600 | 11 | 3800x1750x1700 | 7500 |
| QC12Y-8x4000 | 8 | 4000 | 130 | 450 | 600 | 11 | 4600x1900x1780 | 9600 |
| QC12Y-8x6000 | 8 | 6000 | 130 | 450 | 600 | 11 | 6680x2550x1990 | 19800 |
| QC12Y-12x2500 | 12 | 2500 | 140 | 450 | 800 | 18.5 | 3150x1980x1850 | 9500 |
| QC12Y-12x3200 | 12 | 3200 | 140 | 450 | 800 | 18.5 | 3850x2040x1900 | 11500 |
| QC12Y-12x4000 | 12 | 4000 | 140 | 450 | 800 | 18.5 | 4650x2380x1980 | 14600 |
| QC12Y-12x6000 | 12 | 6000 | 140 | 450 | 800 | 18.5 | 6680x2470x2850 | 26000 |
| QC12Y-16x2500 | 16 | 2500 | 220 | 450 | 800 | 18.5 | 3180x2150x1880 | 11500 |
| QC12Y-16x3200 | 16 | 3200 | 220 | 450 | 800 | 18.5 | 3880x2450x2030 | 14700 |
| QC12Y-16x4000 | 16 | 4000 | 230 | 450 | 800 | 18.5 | 4680x2650x2100 | 19000 |
| QC12Y-20x2500 | 20 | 2500 | 230 | 450 | 1000 | 30 | 3180x2420x2020 | 14800 |
| QC12Y-20x3200 | 20 | 3200 | 230 | 450 | 1000 | 30 | 3880x2680x2150 | 19500 |
| QC12Y-20x4000 | 20 | 4000 | 230 | 450 | 1000 | 30 | 4680x3100x2250 | 25000 |
| QC12Y-20x6000 | 20 | 6000 | 230 | 450 | 1000 | 30 | 6750x2350x3600 | 56000 |
| QC12Y-25x2500 | 25 | 2500 | 3 | 450 | 1000 | 30 | 3280x2650x2300 | 19000 |
| QC12Y-32x2500 | 32 | 2500 | 330 | 450 | 1000 | 37 | 3300x2850x2450 | 25000 |
| 1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you. |
| 2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer. |
| 3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding. |
| 4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed. |
| 5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere |
|
1. How about your machine quality?We are worry about the quality. RE: New Fuli is a nature brand in CHINA,through our 30 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction. |
|
2. Whether the machine price can be more discount RE:1.New Fuli always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction. |
|
3. How about your manufactory in CHINA RE:New Fuli located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service. We welcome your visit to us any time. |
