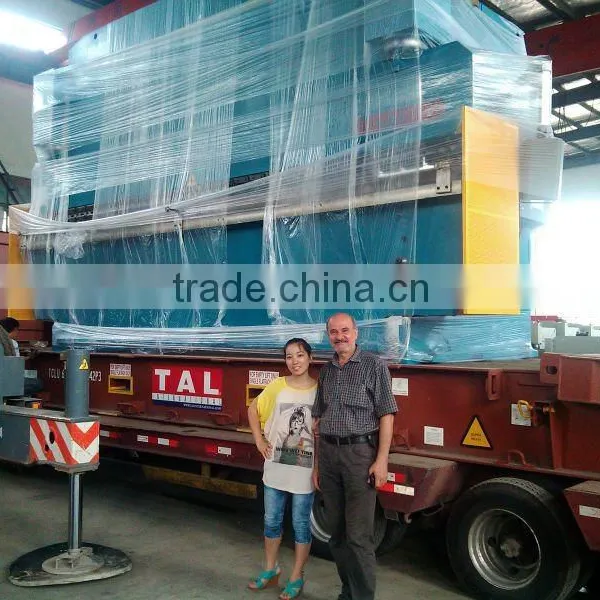

WC67K-400Tx6000 Hydraulic press brake, hydraulic bender,press brake

FOB Price

USD $3,000 - $9,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Anhui, China	Brand Name:	NFL
Model Number:	WC67Y	Machine Type:	Press Brake	Raw Material:	Sheet / Plate Rolling
Material / Metal Processed:	Stainless Steel	Power:	Hydraulic	Automation:	Manual
Extra Services:	Machining	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Press brake

The whole structure of the hydraulic press brake:

- Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.

- Frame: consist of right and left wall boards, working table, oil box, slot steel and etc., with high strength

Hydraulic system:

- Adopt integrated hydraulic control system, more reliable

- Consist of motor, oil pump and valve groups

-Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed

- Complete working cycle can be realized through the control of hydraulic valve.

- The working pressure at the right side of the wall board can be adjusted by the remote adjustment valve

Advance technology and procedures:

- This metal machining tool is a kind of steel torsion bar synchro press brake.

-Electronic control of back gauges and ram stroke, data displayed and manual setting

Hydraulic press brake is main use to bend the plate

* Torsion Arm-to maintain parallelism of press beam.
* Motorised mechanical depth stops inside the cylinder with handwheel fine adjustment with read out.
* Electrical panel with manual and auto operation.
* Remote adjustable working pressure.
* Foot pedal.
* Easy operation.
* Hydraulic Press Brake / Bending Machine / Sheairng Machine / Cutting Machine / Guillotine Shear

		WC67K-200/6000	WC67K-250/3200	WC67K-250/4200	WC67K-250/5000	WC67K-250/6000	WC67K-300/4000
Nominal force	kN	2000	2500	2500	2500	2500	3000
Length of table	mm	6000	3200	4200	5000	6000	4000
Distance between uprights	mm	4800	2540	3140	4000	5000	2900
Throat depth	mm	350	400	400	400	400	400
Ram stroke	mm	200	250	250	250	250	250
Stroke adjustment	mm	150	180	180	180	180	180
Max.opening height	mm	450	500	500	500	500	535
Stokes	Min-1	≥3	≥3	≥3	≥3	≥3	≥3
Main motor capacity	kW	15	18.5	18.5	18.5	18.5	22
Net weight	kg	23100	13900	16300	19900	25100	24400
Outline dimensions(L×W×H	mm	6420 2180 2900	3840 2250 2980	4840 2250 2980	5640 2250 2980	6420 2250 2980	4400 2250 3115

		WC67K-40/2000	WC67K-40/2500	WC67K-63/2500	WC67K-80/2500	WC67K-80/3200	WC67K-80/4000	WC67K-100/2500	WC67K-100/3200	WC67K-100/4000
Nominal force	kN	400	400	630	800	800	800	1000	1000	1000
Length of table	mm	2000	2500	2500	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	1650	2000	2000	1990	2600	3350	1650	2550	3350
Throat depth	mm	200	200	250	280	280	280	320	320	320
Ram stroke	mm	100	100	100	100	100	100	130	130	130
Stroke adjustment	mm	80	80	80	80	80	80	100	100	100
Max.opening height	mm	330	330	340	360	360	360	390	390	390
Stokes	Min-1	≥11	≥11	≥10	≥10	≥10	≥10	≥10	≥10	≥10
Main motor capacity	kW	4	4	5.5	7.5	7.5	7.5	7.5	7.5	7.5
Net weight	kg	3000	3600	4600	5300	6400	8300	7300	8200	9400
Outline dimensions(L×W×H	mm	2500 1900 2240	3000 1950 2240	3100 1900 2380	3150 1950 2350	3820 1950 2350	4650 1950 2350	3200 1960 2450	3790 1980 2450	4600 1980 2450
