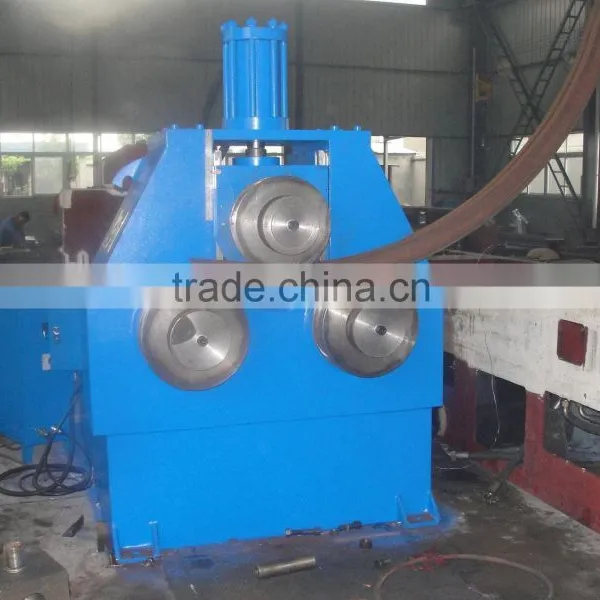

W24Y-140 Hydraulic Bending Machine,profile bending machine
- 1 Set / Sets per Month
- Shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
Product Details
Place of Origin: | Anhui, China | Brand Name: | New Fuli | Model Number: | W24 |
Product Description
Specifications
Profile bending machine.1.High precision,Wide application
2.EU CE Certification
3.CQC,ISO9001:2008
4.High performance,
Performance Overview:
The machine is the head part of machine and machine body stiffener design , and be annealed to reduce internal stress, overall there is enough strength and rigidity to prevent permanent deformation
the use of advanced and reliable arc down structure, rotating around the center of the two lower rollers (upper roller) to do an arc down movement; three work rolls are active rolled by three independent hydraulic drive; a feeding finished, Various profiles (angle, channel, H section steel, round steel, etc.) end pre-bending and roll forming bend can be bent into a variety of profiles which needed to be round, curved, spiral, elliptical and other artifacts (Is the only manufacturer using this structure.)
No hydraulic supporting roller on both sides of machine can provent non-symmetrical profiles distorted in the process of rolling, enabling non-symmetrical cross-section profiles to ensure the quality of volume curve (finished in the natural fall under gravity, unloading tube is convenient.)
Fully hydraulic drive: right lower pre-bending roller, three-roll (both active roller) motor rotation bending, left pre-roll bending, back bending check round, discharge.
Microcomputer controller dynamic intuitive color touch screen and generous, you can set the movement of two lower rollers displacement vector and can store 10 kinds of data.
A foot switch can be used to complete pre-bending, bending, thick part of the material pre-bending, back bending, discharge, reset, the whole process
Motor pump (China famous brand, the quality of Gold) plug connected, concentric high, little vibration, low noise (noise level 65 db.)
New Fuli is efficient and reliable, and 48 hours of continuous operation, in order that no problem to delivery.
New Fuli CNC machine can provide special accessories (such as the four-roller supporting institutions, etc.).
