Home > Products > two lobes roots blower > blower WL102LD jacuzzi

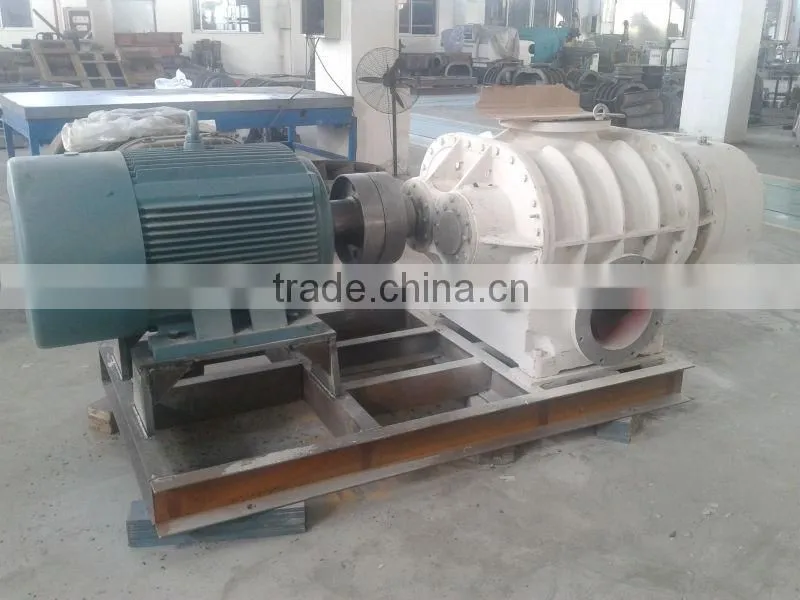

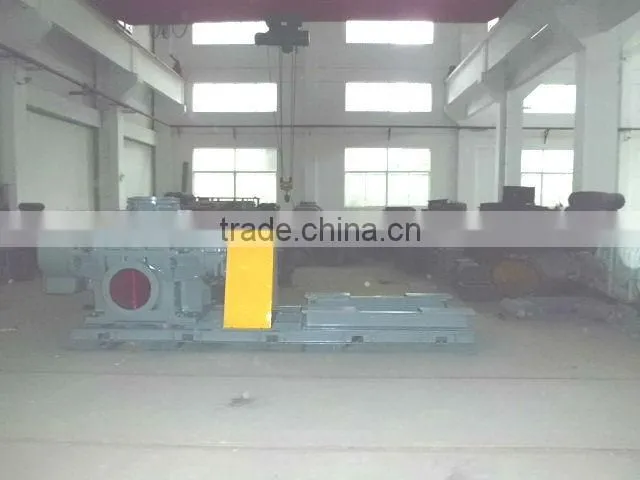

blower WL102LD jacuzzi
- 100 Set / Sets per Month
- shanghai
- T/T
Product Details
Electric Current Type: | AC | Blade Material: | Cast Iron | Place of Origin: | Jiangsu, China |
Brand Name: | beirun | Model Number: | WL102LD | Power: | 90kw-500kw |
Voltage: | 220v-380v |
Product Description
Specifications
1, Volume rotary fans2, widely applied to many industrial fields
3, easily maintenance
4, safty and reliable
L X Y W/L D – 1
1--- Design SN
D--- Drive Mode: D- Coupling dire; Coupling transmission;C- Pulley-Drive
W/L--- Construction: W- horizontal type; L- vertical type
X--- Length of Impellers (cm)
Y--- Diameter of Impellers (cm)
L--- Blowers Code Name
Impeller-diameter: 990mm
Impeller-length: 1130mm
Operational Principle
Two rotors driven by a pair of synchronizer gear, rotating at a constant speed in reversal direction, with help of insulation between suction chamber and discharge chamber supplied by a proper working gap between both impellers and between impeller and casing, then push the internal gas so as to realize functioning of exhausting.
Configuration
Rotors: compose of shaft, impeller, bearing, synchronizer gear, coupling, shaft collar, etc.
Impeller: involute type; high volume efficiency
Bearing: Double-row angular-contact ball bearings for Model 3000;
And single-row radial short cylindrical roller bearings for Model 32000 can be
adapt to axial shift of rotors caused by thermal expansion.
Synchronizer gear: compose of gear ring and gear hub for easily adjust the working gap.
Casing: compose of cabinet, right and left wall-plate, on which there’re bearing pedestal, sealing parts and etc. They are in common use.
Base: Common bases for middle and small blowers and only bases for large blowers.
Lubrication: immersion for gearwheel and splash lubrication for bearings.
Driving Method: flexible coupling is an important part in it and has the function of impact alleviating and compensation to axial-deviation.
notice:
If you are interested in our roots blower , please advise us your requirement, so that we can select the suitable roots blower model and submit quotation accordingly.
1) Please advise the flow(m3/min)
2) Please advise pressure (kpa)
3) The roots blower application field
If you need to transport a corrosive gas with a slight,please tell us,we will provide you with special processing.
The direction of suction and discharge can be selected according to your need.
Any questions,please feel free to contact us!We will do our best for you!Sincerely hope that we can cooperate with you in the near future!
Contact Us
- Wuxi Beirun Blower Manufacturing Co., Ltd.
- AddressDacheng Industrial Park, Anzhen Street, Xishan District
