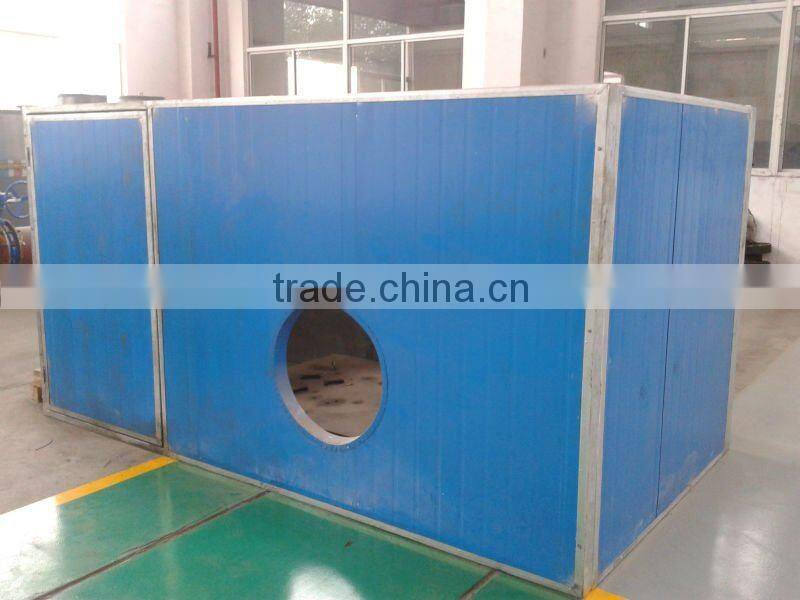

Hot Air Exhaust Fan WL41LD

Specifications

L      X  Y     W/L   D – 1

 1---                          Design SN

 D---                         Drive Mode: D- Coupling dire; Coupling transmission;C- Pulley-Drive

 W/L---                     Construction: W- horizontal type; L- vertical type

 X---                          Length of Impellers (cm)

 Y---                          Diameter of Impellers (cm)

 L---                           Blowers Code Name

Impeller-Diameter : 240mm

Impeller-Length: 200mm

Operational Principle

Two rotors driven by a pair of synchronizer gear, rotating at a constant speed in reversal direction, with help of insulation between suction chamber and discharge chamber supplied by a proper working gap between both impellers and between impeller and casing, then push the internal gas so as to realize functioning of exhausting.

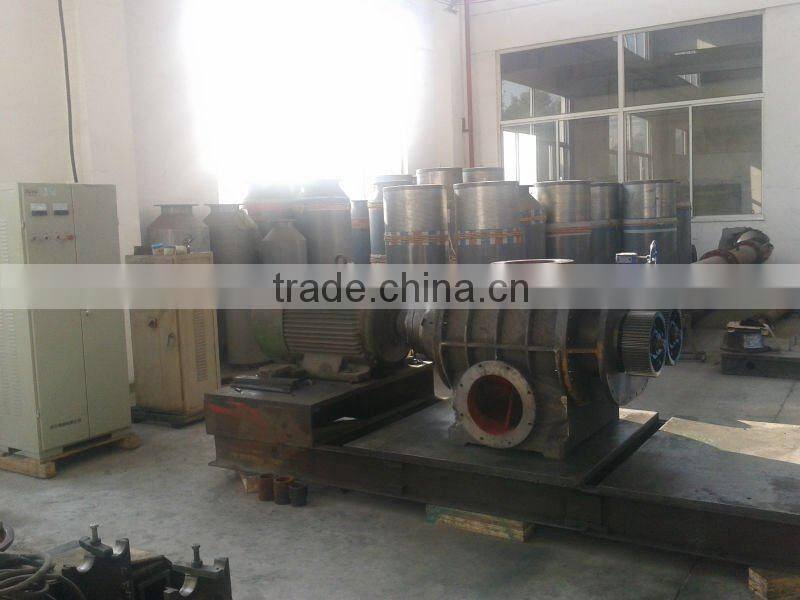

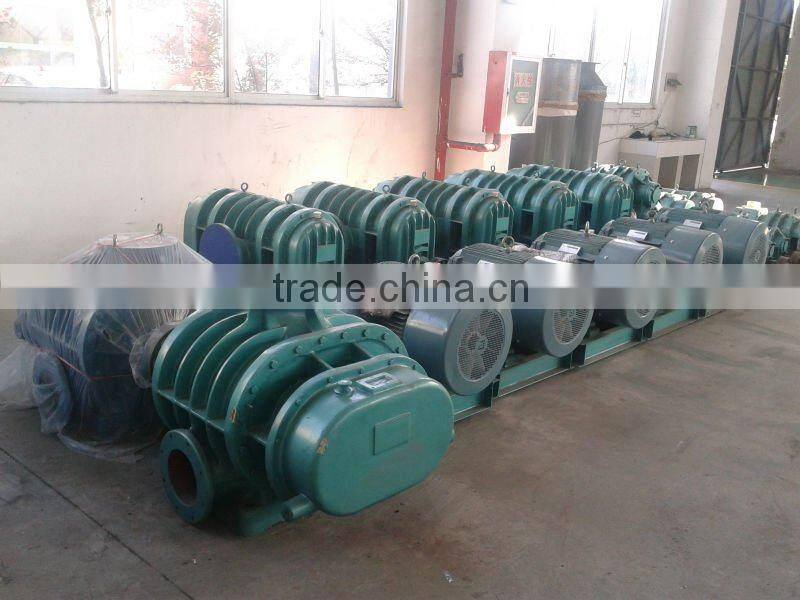

Configuration

Rotors: compose of shaft, impeller, bearing, synchronizer gear, coupling, shaft collar, etc.

Impeller: involute type; high volume efficiency

Bearing: Double-row angular-contact ball bearings for Model 3000;

        And single-row radial short cylindrical roller bearings for Model 32000 can be

        adapt to axial shift of rotors caused by thermal expansion.

Synchronizer gear: compose of gear ring and gear hub for easily adjust the working gap.

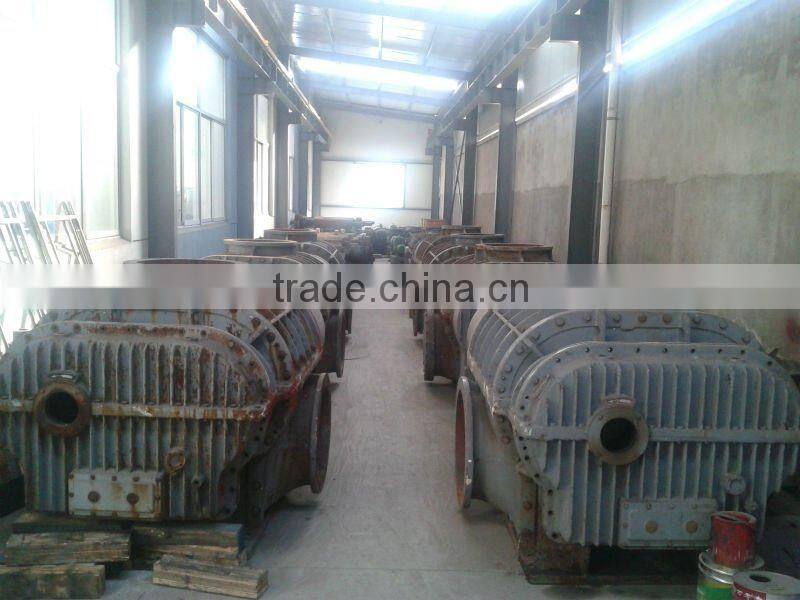

Casing: compose of cabinet, right and left wall-plate, on which there’re bearing pedestal, sealing parts and etc. They are in common use.

Base: Common bases for middle and small blowers and only bases for large blowers.

Lubrication: immersion for gearwheel and splash lubrication for bearings.

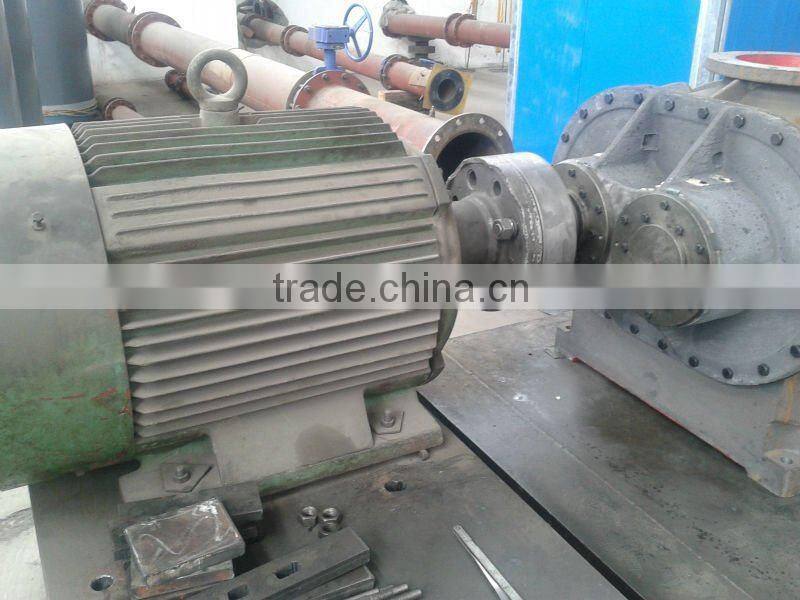

Driving Method: flexible coupling is an important part in it and has the function of impact alleviating and compensation to axial-deviation.

Features

Roots blowers, classified into category of positive displacement rotary one are typically characterized by following features in practical operation:

(1)   Flow fluctuating slightly while pressure is varied within allowable range.

(2)   A wide range for selecting pressure.

(3)   Transmitted air is free from oil.

(4)   Simple configuration.

(5)   Easy maintenance.

(6)   Long service life.

(7)   Slightly vibration.

 Performance

notice:

If you are interested in our roots blower , please advise us your requirement, so that we can select the suitable roots blower model and submit quotation accordingly.

1) Please advise the flow(m3/min)

2) Please advise pressure (kpa)

3) The roots blower application field

If you need to transport a corrosive gas with a slight,please tell us,we will provide you with  special processing.

The direction of suction and discharge can be selected according to your need.

Any questions,please feel free to contact us!We will do our best for you!Sincerely hope that we can cooperate with you in the near future!
