Help Center24port 110 IDC Cat5e Patch Panel
US$ 5 - 13.8
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DRJ, DEM,ODM
Model Number:
P5U-24-004
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale 24 Ports 0.5U Distributing Frame,cat5e Patch Panel UnshieldedNegotiableMOQ: 50 Pieces -
HOT!!! High Quality Rj45 Network Blank Patch PanelUS$ 5.17 - 7.31MOQ: 50 Pieces
-
1U 24 Ports Ethernet Anti-shocking UTP Amp Cat6 Patch PanelUS$ 8 - 13MOQ: 50 Pieces
-
24 Port 110 IDC UTP Cat5e Patch Panel,keystone Patch PanelUS$ 15.5 - 35MOQ: 50 Pieces
-
19" Mountable 24 Ports With 24 Modules Jack 45 Degree Cat6 Patch PanelNegotiableMOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
DRJ, DEM,ODM
Model Number
P5U-24-004
Specifications
1.12/16/18/24/48 ports patch panel2.OEM,ODM available
3.ISO9001,RoHS,CE,FCC,UL,ETL
4,Size:1U,2U 19"
5.110 IDC patch panel

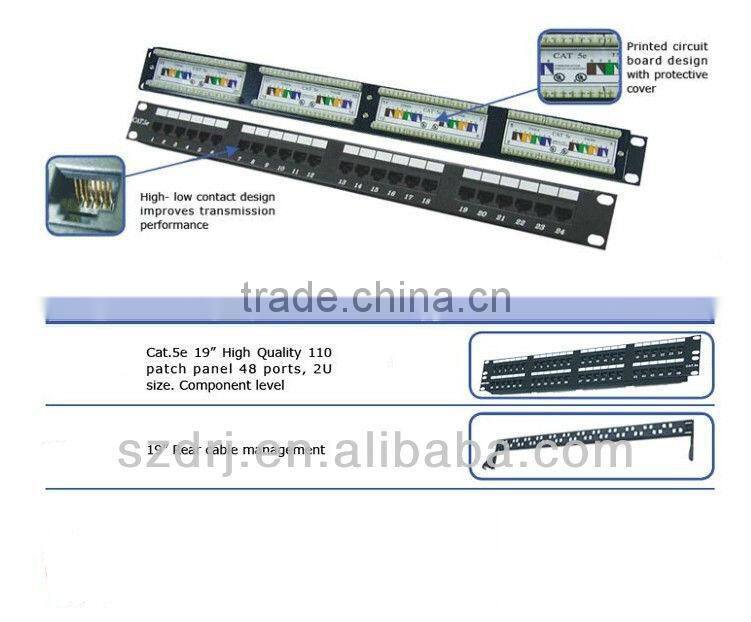

24port 110 IDC Cat5e patch panel
Discription:
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u"-50U" Gold plating on contact area.
| cat5e/cat6 | UTP/FTP | 1U/2U | black |
12/16/18/24/48 ports |
3u"/15u"/30u'/50u' |
print your logo available | metel |

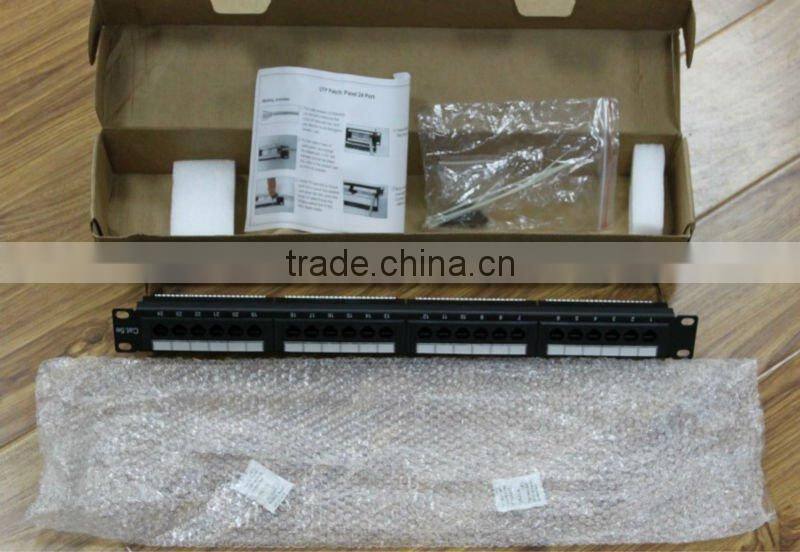

Packaging:

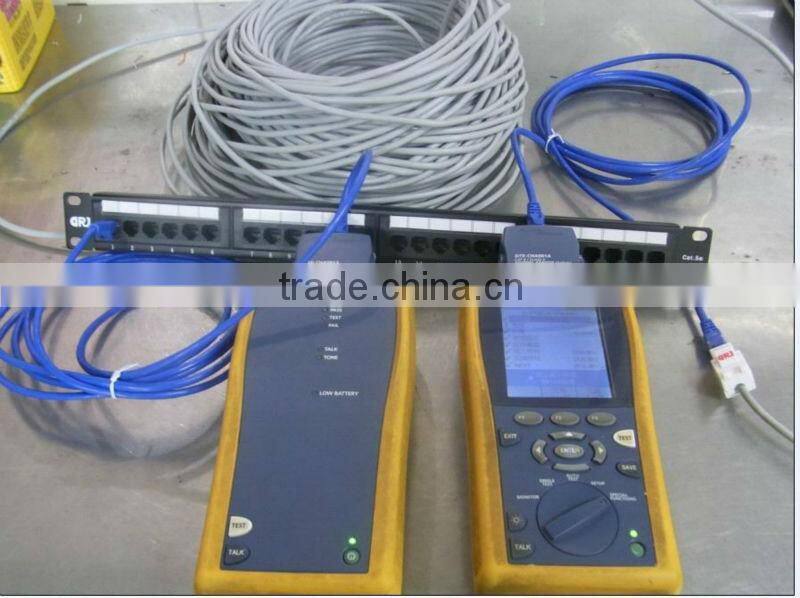

Testing:
