Cat5e UTP RJ45 amp 24 port patch panel
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
- Hanxin High Density Optical Termination Box 12 Port Universal Type Patch Panel 12 Port Odf Distribution Box Splice Box
- High Density Optical Termination Box Optical Termination Box 12 Port Universal Type Patch Panel
- Hanxin 19\" Hot-dip Galvanized Steel Sheet Pc Abc12 Port Odf Patch Panel Distribution Box Metal 12-port St Splice Box
- MT-4024 LED RJ45 19\" UTP 24 port cat6 patch panel
- MT-4024 19 Inch Type 24 port cat6 cat5e LED Patch Panel
- MT-4026 Hot-sale products Detachable 1U 48port 19 Inch Blank Patch Panel With Cable Manger
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DRJ | Model Number: | P5U-24-005 |
Product Description

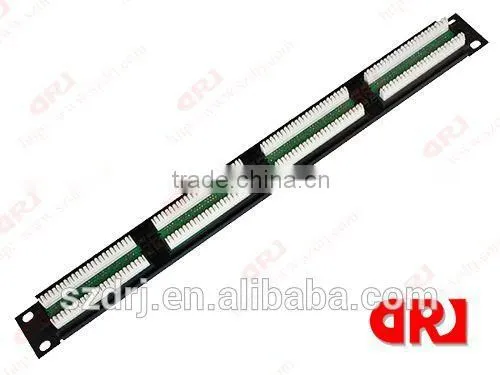

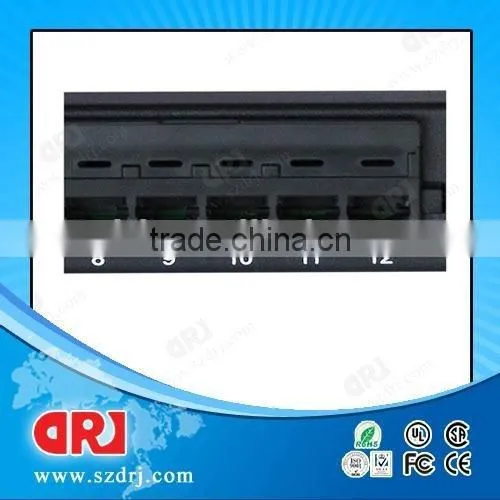

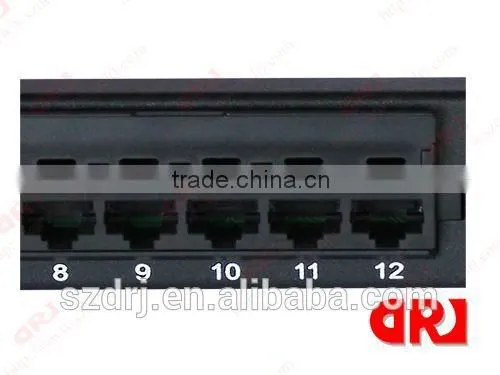

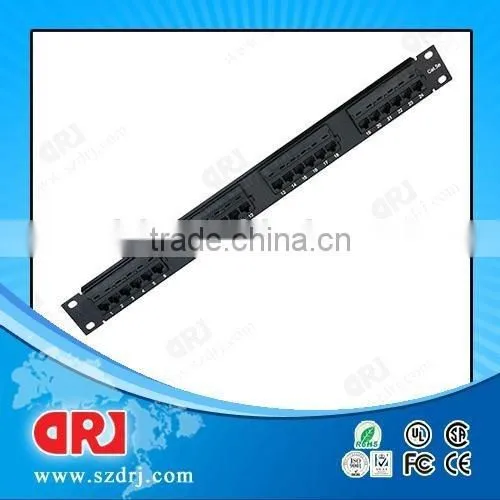

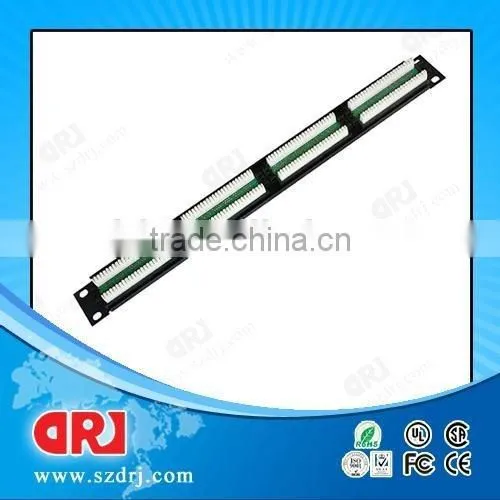

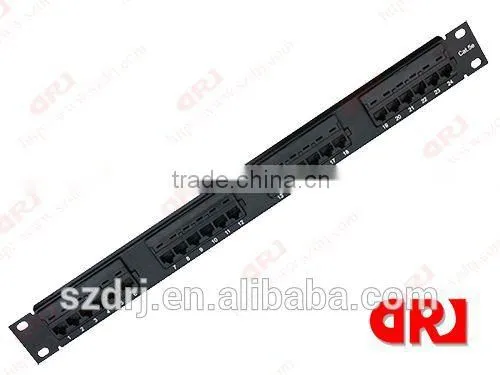

Cat5e UTP RJ45 amp 24 port patch panel
amp 24 port patch panel Discription:
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.
3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" Gold plating on contact area.
.
Shippment, we support By Sea,By air,By Express: DHL ,Fedex, UPS, etc
Dear Customer:
Thank you for using our DRJ network products, if you have the using and services experience problems,
please give us time to reflect, we will quickly reflected properly resolve your problem,
the quality of our products and services level of sustained improvement and upgrading,
DRJ Always provide a little "value-added" service at no charge. This can include one or two phone consultations,
an e-mail follow-up or a "special report" that you mail after the project is completed.
You really will experience good old fashioned efficient customer service, from real people,with honesty and value for money.
That's my Guarantee to you.
Thank you for your support!
Shenzhen DRJ Network Products Co.,Ltd /
1. What kind of Company we are,trading company or factory?
Trading Company,but we have own factory,welcome to visit our factory!
2. Is OEM or private packing available?
YES!!
3. How do you do regarding quality control?
Quality is job 1. Strictly conform to CE,ROHS,UL certificate
