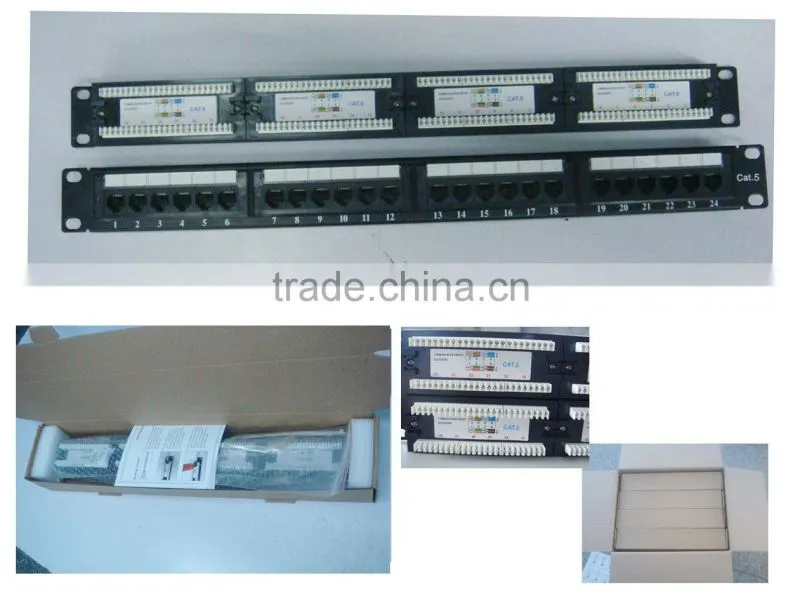

Help CenterUTP 24 Ports IDC Cat5e Patch Panel
US$ 5 - 13.8
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DRJ, DEM,ODM
Model Number:
P5U-24-004
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1U 24 Ports BNC Patch PanelUS$ 5 - 16MOQ: 50 Pieces -
Network Cable Cat5e UTP 16 Port Patch Panel,china Supplier Patch PanelUS$ 15.5 - 30MOQ: 50 Pieces
-
24 Ports Blank Patch Panel With Dust CoverUS$ 3.15 - 6.31MOQ: 50 Pieces
-
24 Ports Blank Panel Box With Dust CoverUS$ 3.15 - 6.31MOQ: 50 Pieces
-
0.65U Angle 24 Port Patch Panel,patch Panel UnloadedUS$ 6 - 13.8MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
DRJ, DEM,ODM
Model Number
P5U-24-004
Patch Panel Discription:
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u"-50U" Gold plating on contact area.
| cat5e/cat6 | UTP/FTP | 1U/2U | black |
12/16/18/24/48 ports |
3u"/15u"/30u'/50u' |
print your logo available | metel |
Packaging:
Testing:
