dry concrete shotcrete machine
- 10 Set / Sets per Month
- QINGDAO
- Credit Card
Product Details
Condition: | New | Max. Conveying Distance: | 200m | Max Aggregate Size: | 20 |
Hose Inner Diameter: | 50 mm | Air Consumption: | 7-9m 3 /min | Place of Origin: | Shandong, China |
Brand Name: | HWGK | Model Number: | PZ-3,6,7,9 | Voltage: | 380V or 660V |
Power(W): | 5.5KW | Dimension(L*W*H): | 1520 * 820 * 1280 mm | Weight: | 60KG |
Certification: | CE CCC ISO | Warranty: | ONE year | After-sales Service Provided: | Overseas service center available |
Product Description
Shotcrete machine/ pulp shooting machine
Sotcrete machine uses:
Used in shotcrete machine is widely used in engineering construction, mines, tunnels, culverts, subway, water and electricity engineering, underground
engineering and coal moors mine laneway shotcrete.
Cnstruction:
various types of industrial furnaces, lining refractory spraying forming or repair: all kinds of slope protection afforestation construction, soil and injection.
Shotcrete machine characteristics and advantages :
Through the rotor type is not binding material cavity, discharging unobstructed, efficient time-saving: elastic compensation compaction at four o 'clock, good sealing effect, by little dust, parts, long service life: using high-speed low pressure vortex air transportation, overcome the bonding in the material conveying, blocking pipe and pulse from the problem such as folding, uniform material flow, continuous stable: new type of nozzle, the discharge elbow device, improve the effect of spray application of, less resilience, spray layer of high quality. Machine chassis can be assembled into tyred, slide rail wheel type and all kinds of gauge.
Technical parameters :
Model | PZ-3 | PZ-5 | PZ-6 | PZ-7 | PZ-9 | |
Production capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h | 9m3/h | |
The maximum transmission distance | 200m | 200m | 200m | 200m | 200m | |
Applicable material proportioning: cement/sand | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | |
Applicable materials water-cement ratio | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | |
The biggest bone size | 10mm | 15mm | 15mm | 20mm | 20mm | |
Transporting pipe inner | 42 | 51 | 51 | 51/64 | 64 | |
Rotor block diameter | 350mm | 438mm | 438mm | 480mm | 480mm | |
Working pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | |
blast consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h | 9-10m3/h | |
motor power | 4KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | |
Level of voltage | 380V,440V,660V,1140, 50Hz/60Hz | |||||
The weight | 400Kg | 700Kg | 700Kg | 800Kg | 900Kg |

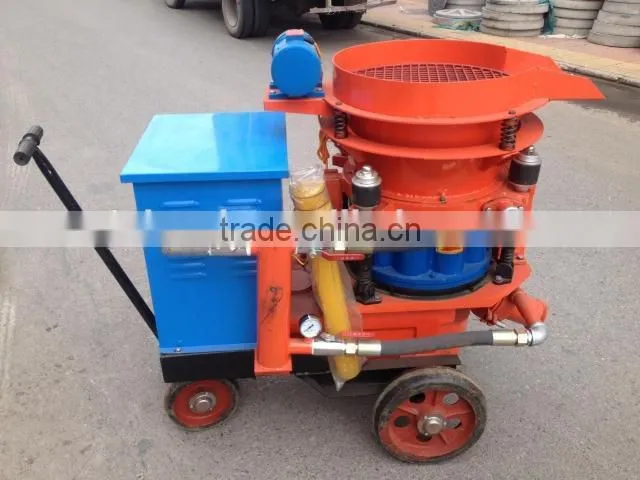

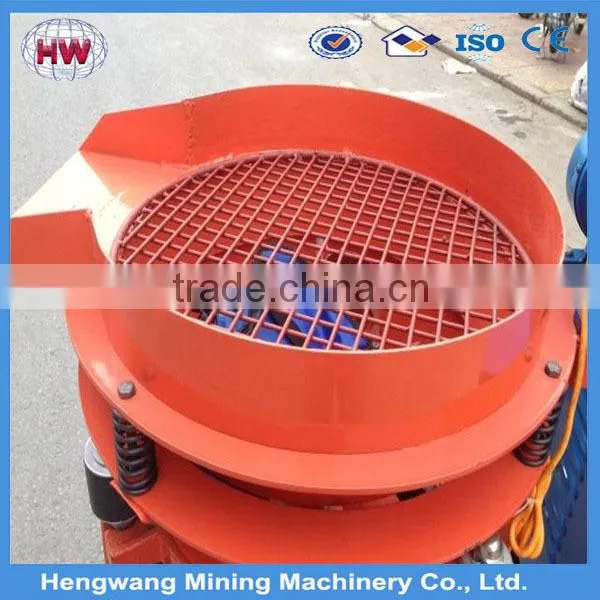

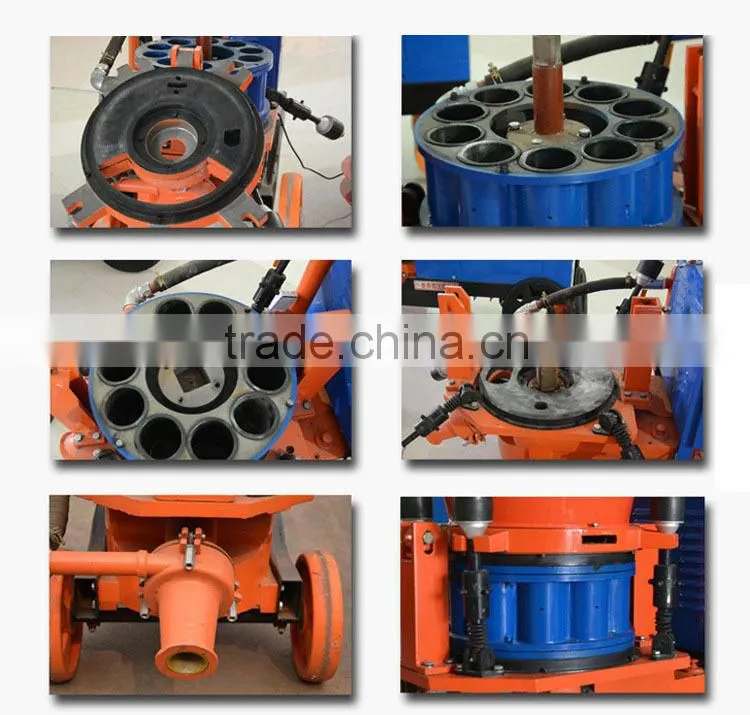

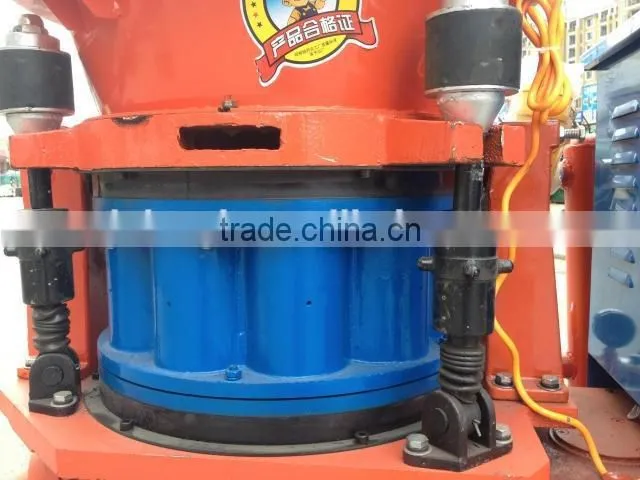

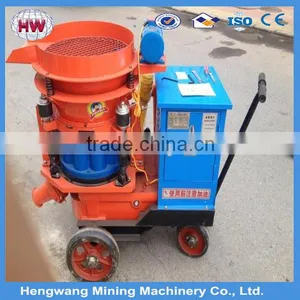

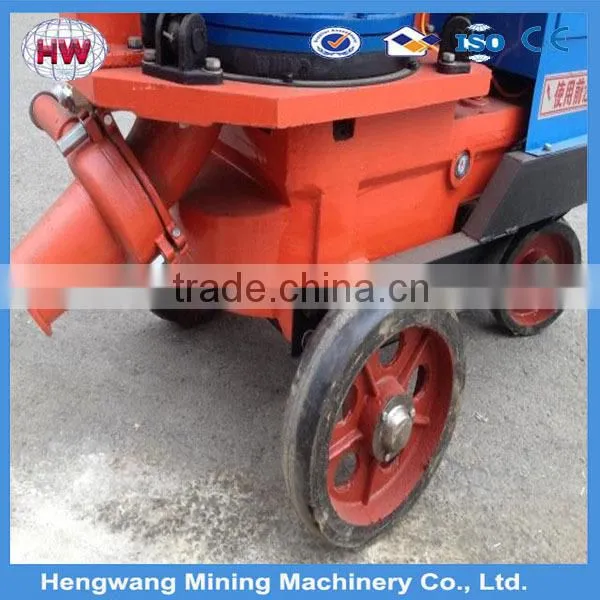

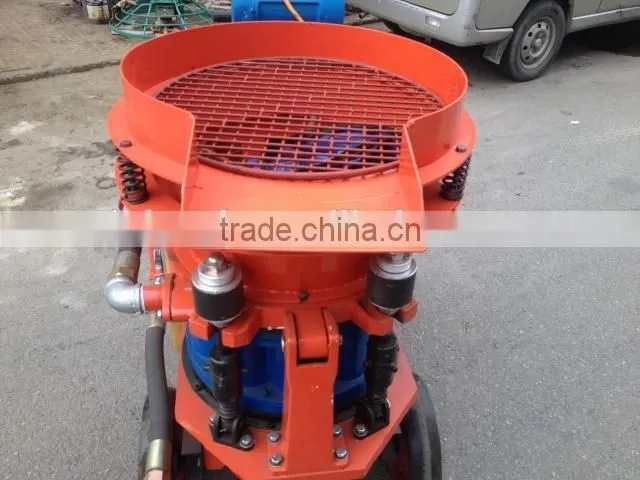

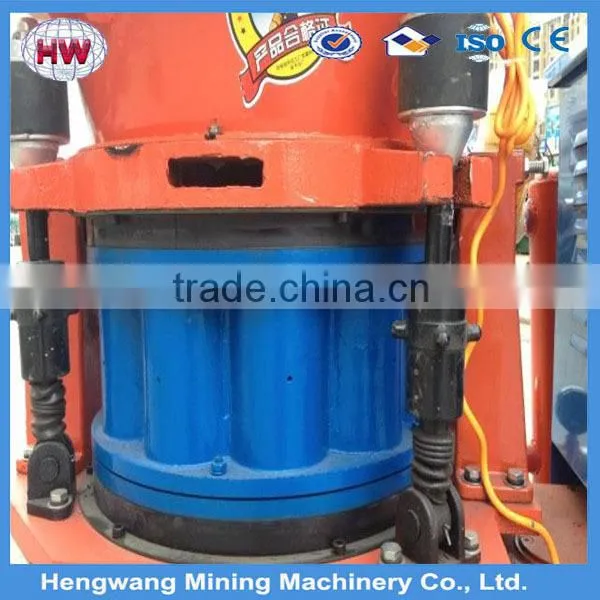

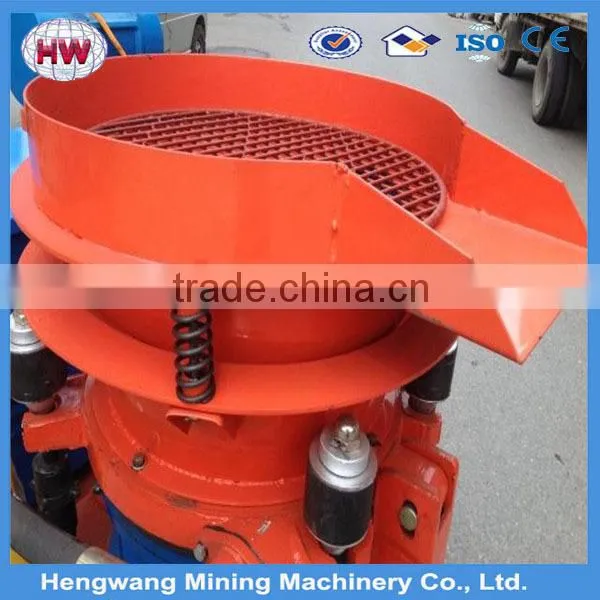

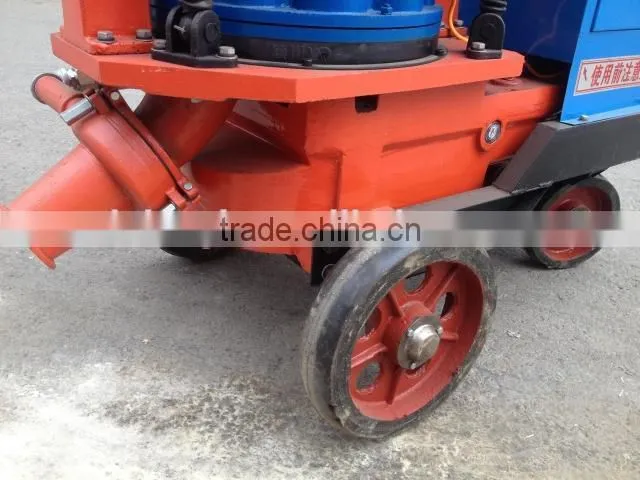

Photo for pulp shooting machine :

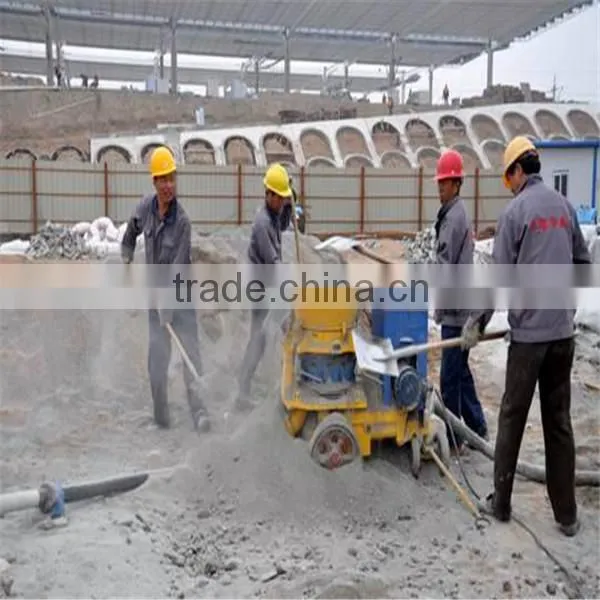

The construction site :
clients inspection factory:
history order:
certificates:
welcome to contact me:
Molly
Skype:vivianhengwang
QQ:2691926052
Tel:0086 13563710733
Mob:0086 537 2580328
We Chat:0086 13563710733
Whats App:0086 13563710733
