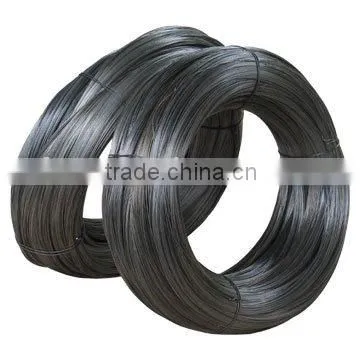

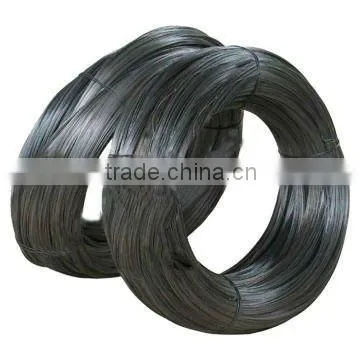

Black annealed wire & black wire, comes in the form of coil wire or cut wire
Quick Details
Place of Origin: Shandong, China Brand Name: Fuyu or according to buyer's request
Model number: manufacturer Surface treatment: electro galvanized or hot dipped galvanized
Type: round wire Function: binding wire
Wire Guage: 0.1-8mm Material: iron or steel
Tensile strength:350-2160N/m² Weight/roll: 0.2-1000kg/roll
ZINC amount: 10-580g/m²
Packaging & Delivery
Packaging details: 25kg/coil, inside wrapped with PVC strips, outside with woven bag or according to buyer's request
Delivery details: within 30 days after receiving the 30% advanced deposit
Specifications
Galvanized Wire
Material: iron wire, steel wire
Diameter: 0.1mm-8mm
Weight/roll: 0.2-1000kg/roll
Zinc amount: 10g-360g/m²
Galvanized Wire
We are a manufacturer specialized in producing all kinds of galvanized wire,
our galvanized wire can be divided into: Electro galvanized iron wire Hot dipped galvanized iron wire
Electro galvanized steel wire Hot dipped galvanized steel wire
Specifications
Deal with the molten iron, calm reaction, uniform, avoid secondary oxidation, inclusion floatation speed
But the composition of molten steel under effective control, alloying elements in stability;
Reduce alloy consumption, alloy recovery greatly enhanced, and reduce the production cost, improve the work ring environment.
1. Electro galvanized iron wire
Material: Q195, Q235
Wire Diameter:0.13mm-6mm
Tensile stength: 300-550N/m²
Elongation: 15% max
We use high quality carbon structural steel wire rod Q195, Q235, 1008, 1018 etc as raw material to manufacture galvanized iron wire, through drawing, annealing, chlorhydric acid washing
, water washing, electro zinc coating, water washing, passivate bright treatment, drying and other procedures.
2. Hot dipped galvanized iron wire
Material: Q195, Q235, 1006, 1008, 1010, 1018
Wire Diameter: 0.2mm-8.5mm
Tensile strength: 300-550N/mm2
Elongation: 15% max
Detailed Description:
We use high quality carbon structural steel wire rod Q195, Q235, 1008, 1018 etc as raw material to manufacture galvanized iron wire, through drawing, annealing, chlorhydric acid washing, water washing, hot dipped zinc coating, drying and other procedures, our product can achieve in ASTM641 standard.
3. Electro galvanized steel wire
Wire Diameter: 0.1-5mm
Zinc coating: 10-15g/m2
Tensile strength: 1270-2160N/mm2
Packing: in coils or spools, 10kg-1000kg/coil.
4. Hot dipped galvanized steel wire
Wire Diameter: 0.1-8mm
Zinc coating: 40-360g/m2
Tensile strength: 1270-2160N/mm2
Packing: in coils or spools, 10kg-1000kg/coil.
Uses: for optical cable,spring,fishery,every kind of protective guard and so on.
We use high quality carbon structural steel wire rod 45#, 50#, 60#, 65#, 70#, 72B, 80A as raw material to manufacture galvanized steel wire, through phosphating treatment, drawing, annealing, chlorhydric acid washing, water washing, hot dipped zinc coating, drying and other procedures, our product can achieve in ASTM641 standard.
We can pack the galvanized wire as follows:
(1) On spools (wooden spool, plastic spool, cardboard spool)
(2) In coils (0.275kg-150kg/coil)
(3) Big coils (400-1000kg/coil)

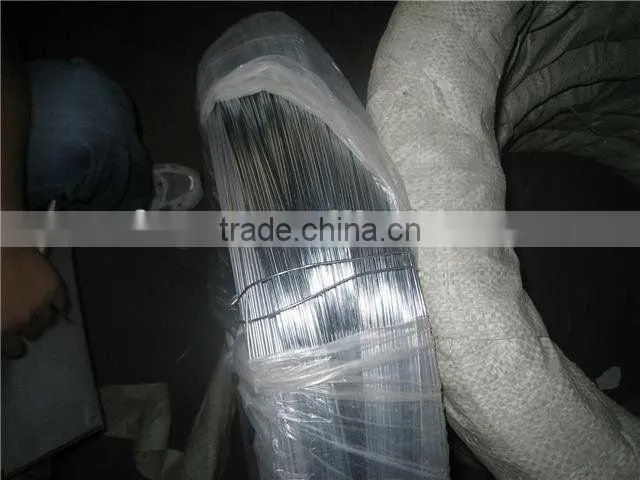

(4) In cartons(specially for galvanized straight cut wire, length 0.3m-6m)
The standard packing forms are inside wrapped plastic film outside woven bag, inside wrapped plastic film outside hessian cloth, wrapped with thick plastic cloth etc.
5. Redrawing galvanized wire
Wire Diameter: 0.3-2.8mm
The redrawing galvanized wire is redrawn from the hot dipped galvanized wire or electro galvanized wire, which is widely used for weaving wire mesh or producing hanger.
Surface treatment for galvanized wire: PVC coated, PE coated etc
As a manufacture, we can supply goods with high quality and competitive price. Any problems, pls contact me freely. I'm looking forwards to establish a long and friendly relationship with you!
onstruction or daily use as binding material.
Spec: Gauge from BWG8 to BWG24
We can pack the products according to customers requirements.
We'd like to cooperate with all sincere and serious costomer and welcome you visit our factory.
