Specifications
wireless intercom pcba service- 8 years DIP experience
- 100% testing & ISO9001
- UL,RoHS

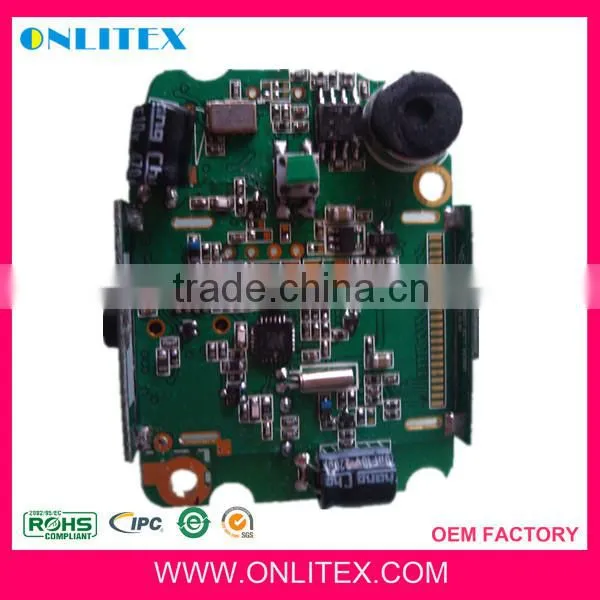

wireless intercom pcba
Product Description
| NO | ITEM | Technical capabilities |
| 1 | SMT | Through Hole assembly |
| 2 | Single/double side SMT | Single/double sides mixture assembly/Rigid PCBA/ aluminum board-LED Lamp light pcba |
| 3 | Accuracy | <±40,under the condition of 3 |
| 4 | CPK | ≥1 |
| 5 | Angle accuracy | <±0.06° |
| 6 | Components Size | SMT 01005 to 100mm×80mm |
| 7 | Minimum width/space of QFP | 0.015mm/0.3mm |
| 8 | Minimum diameter /space of BGA | 0.015mm/0.35mm |
| 9 | Maximum part's highness | 18mm |
| 10 | Maximum part's weight | 30g |
| 11 | PCB Size | 50mm×50mm~457mm×567mm |
| 12 | PCB Thickness | 0.5mm~4.5mm |
| 13 | Placer speed | 60000chips/hour |
| 14 | Turnkey Service | PCB Design, Layout Design |
| PCB manufacturing | ||
| Component procuring | ||
| SMT assembling, THT assembling | ||
| Wire soldering, Enclosure assembling | ||
| AOI inspecting | ||
| Programming | ||
| Function Testing | ||
| Packing&Shipping |
Electronic manufacturing service
With time and cost challenges driving today's manufacturing requiements,Onlitex is equipped with the facilities,technology and commitment to quality to meet the demands of today's leading OEMs.
Our customer base
Packaging & Shipping
wireless intercom pcba Package: Inner packing: Vacuum Package
Outer packing: Standard Carton ( K=K)
Delivery time: 3-4weeks after received deposit
Shipping: by DHL,UPS,TNT,FedEx,or according client need..
Pcba supplier Services
-Electronic Manufacturing Service
-Solder LED pcba
-OEM Assembly
-SMT & DIP Assembly
-Manual solder Assembly
-Engineering & Testing Solution
-One-Stop Services
Process flow diagram
Company Information
Our main product line include EMS,PCB assembly(PCBA), wireless intercom pcba ,in circuit test,function test,flexible printed circuit board( FPC )

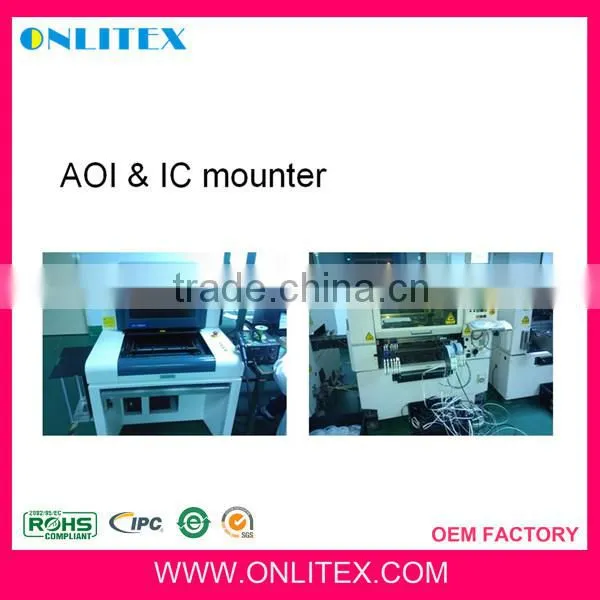

Factory structure process&Machine
Our factory pass ISO 9001 Certificate
Trade Term:
1. Payment: T/T, LC,DA,DP,Paypal, Western Union .
2. Lead time: 10 working days for normal products.
3. Samples can be available within 8~10working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen or HongKong
6. Discount is offered at larg order quantities
