Specifications
Pcba assembly service- 8 years SMT& DIP experience
- 100% testing & ISO9001
- UL,RoHS

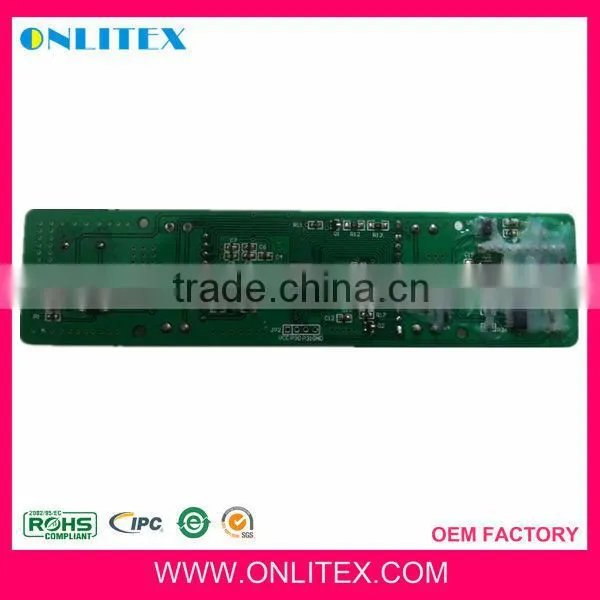

Pcba assembly service,pcba in dongguan
Product Description
| NO | ITEM | Technical capabilities |
| 1 | SMT | Through Hole assembly |
| 2 | Single/double side SMT | Single/double sides mixture assembly/Rigid PCBA |
| 3 | Accuracy | <±40,under the condition of 3 |
| 4 | CPK | ≥1 |
| 5 | Angle accuracy | <±0.06° |
| 6 | Components Size | SMT 01005 to 100mm×80mm |
| 7 | Minimum width/space of QFP | 0.015mm/0.3mm |
| 8 | Minimum diameter /space of BGA | 0.015mm/0.35mm |
| 9 | Maximum part's highness | 18mm |
| 10 | Maximum part's weight | 30g |
| 11 | PCB Size | 50mm×50mm~457mm×567mm |
| 12 | PCB Thickness | 0.5mm~4.5mm |
| 13 | Placer speed | 60000chips/hour |
| 14 | Turnkey Service | PCB Design, Layout Design |
| PCB manufacturing | ||
| Component procuring | ||
| SMT assembling, THT assembling | ||
| Wire soldering, Enclosure assembling | ||
| AOI inspecting | ||
| Programming | ||
| Function Testing | ||
| Packing&Shipping |
Electronic manufacturing service
We undertake both PCBA and Box-Build assembly for customers from various industries including IT,industrial equipment,banking equipment,telecommunications equipement,medical devices and consumer electronics.
With time and cost challenges driving today's manufacturing requiements,Onlitex is equipped with the facilities,technology and commitment to quality to meet the demands of today's leading OEMs.
Our customer base
Packaging & Shipping
pcba assembly service Package: Inner packing: Vacuum Package
Outer packing: Standard Carton ( K=K) 46*46*36MM
Delivery time: 4-6weeks after received deposit
Shipping: by DHL,UPS,TNT,FedEx,or according client need..
Pcb supplier Services
-Electronic Manufacturing Service
-OEM Assembly
-SMT Assembly
-Manual solder Assembly
-Engineering & Testing Solution
-One-Stop Services
Process flow diagram
Company Information
Onlitex Electronic Holding Limited found in 2005,located in Guangdong Province,China,is one of the professinal electronics contract manufacturers in South China.Our focused experience in printed circuit board assembly service and flexible circuit boards has gained Onlitex the reputation as a very cost-effective and reliable source for a wide range of electronic products field.
Factory structure process&Machine
Our factory pass ISO 9001 Certificate
pcba assembly service Trade Term:
1. Payment: T/T, LC,DA,DP,Paypal.
2. Lead time: 10 working days for normal products(components less than 100pcs on pcb board).
3. Samples can be available within 8~10working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen or HongKong
6. Discount is offered at larg order quantities
