Specifications

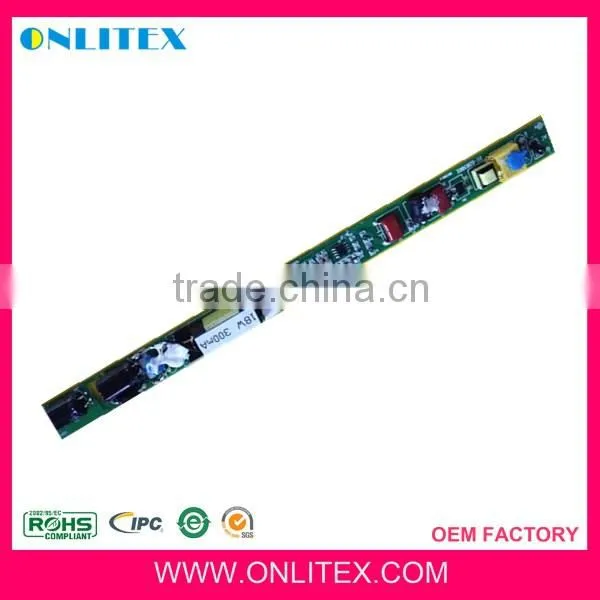

China led driver pcb assembly factoryFR4 PCB &pcb assembly
Small order pcba&pcb assembly
IPC610-A process control
ONLITEX LED driver PCB&PCBA assembly factory provide PCB assembly ,Through-hole assembly . Lead free and high quality
Onlitex Electronic Holding Limited was found in 2005 who is a professinal manufacturer in electronics manufacturing servies (EMS)field in China. We focus our business in subcontract manufacturing, electronic OEM/ODM, PCB Assembly, PCBA SMT and DIP hybrid board production, electronics turnkey project and flexible circuits board (FPC)
-------------------------------------------------------------------------------------------------------------------------------------------
Reasons for choosing ONLITEX ----China PCB&PCBA assembly PCBA pcb assembly ,Through-hole assembly
1.Almost ten years experiences on PCBA pcb assembly
2.Strict pcb assembly processes
3.Every Employees Quality control step by step
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Speciafication For PCB and PCBA assembly | |
| Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers |
| Number of Layer | 1,2,4 or 6,upto 18 layer |
| Board thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper thickness | 1.0oz to 2.0oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Surface Finish | HASL,Immersion Gold,Immersion Tin,Aluminum |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Max Board Dimension | 20 inch*20inch or 500mm*500mm |
| Board thickness Tolerance | ±10% |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| PCB&PCBA assembly capabilities | |
| Type of assembly | SMT assembly ,Through hole assembly |
| Solder Type | Lead free |
| Components | 0201 upto Micro BGA |
| Files | gerber file and BOM |
| Test Provide | Yes |
| Lead time | Same day service to 15 daytime service |
PCB&PCBA assembly PCB Assembly factory SMT line
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

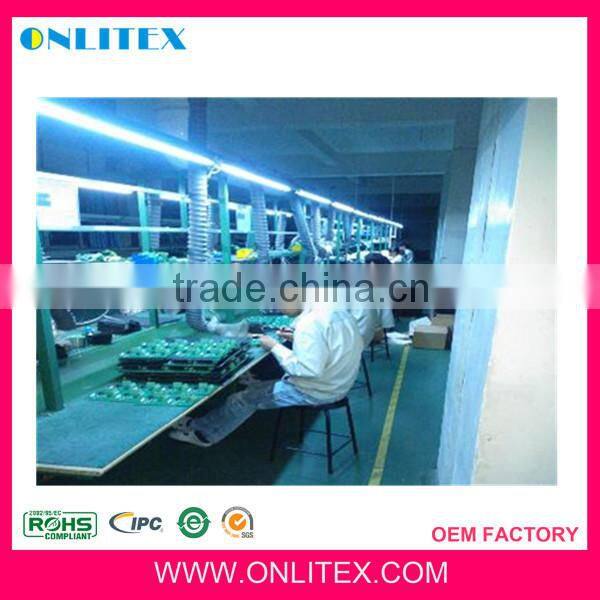

PCB&PCBA assembly PCB assembly factory hand soldering Line
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PCB&PCBA assembly PCBA assembly factory use normal carton box
our pcba assembly factory express
Trade Term @ONLITEX Electronic
1. Payment: T/T, LC,DA,DP,Paypal.
2. Lead time: 10 working days for normal products(components less than 100pcs on pcb board).
3. Sample can be available within 8~10working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen or HongKong
6. Discount is offered at large order quantities
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ONLITEX ---Your PCB& PCBA Assembly solution and aim at PCB assembly zero defect .
