High Quality Control Board PCBA Manufacturer in China
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- OEM power bank pcb made in Shenzhen
- Brand new simulation board 640C0057G01, Kunteng control center circuit board 640D0190H01
- New Kunteng Control Center Digital Board 640C0024G01
- Pcba Professional PCBA Manufacturer Support Customize Wireless Charging Circuit Board
- customized PCBA SMT PCB
- 16 layer HDIPCB+PCBA (SMT+rear welding+plug-in)
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | High Quality control pcba manufacturer |
Base Material: | FR4 | Copper Thickness: | 1.0oz | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.15mm | Min. Line Width: | 0.15mm | Min. Line Spacing: | 0.15mm |
Surface Finishing: | HASL |
Product Description
Specifications
Specifications1.High Quality control pcba manufacturer
2. PCB ems
3. PCB Design
4. UL, SGS, RoHS
PCB Assembly Capability | ||
Items | Capability | |
1 | Min. IC Pitch | 0.30mm(12mil) |
2 | Foot Pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
3 | Min. Chip Placement | 01005 |
4 | Max. PCB Size | 457mm x 567mm |
5 | Min. PCB Thickness | 0.35mm(13.8mil) |
6 | Maximum BGA Size | 37mm x 37mm(8" x 6") |
7 | BGA Ball Pitch | 1mm ~ 3mm(4mil ~ 12mil) |
8 | BGA Ball Diameter | 0.25mm ~ 1mm(16mil ~ 40mil) |
9 | QFP Lead Pitch | 0.38mm ~ 2.54mm(15mil ~ 100mil) |
10 | Package | Anti-static Bubble Bag & Carton |
PCB Capability | ||
Items | Capability | |
1 | Layers | 1 ~ 10 layers |
2 | Base Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium |
3 | Finished Board Thickness | 0.2mm ~ 7.0mm(8mil-276mil) |
4 | Copper Thickness | 1/3oz ~ 7oz |
5 | Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc. |
6 | Reference Standard | IPC-A-600H Class 2, Class 3, TS16949 |
7 | Certificate | UL, ISO9001, ROHS, SGS |
8 | Package | Vacuum & Carton |
FPC Capability | ||
Items | Capability | |
1 | Types | Single-sided, Double-sided, Multi-layers (max 6 layers) and Flex-Rigid PCB |
2 | Surface Finishing | HASL(LF), Gold plating, Electroless nickel immersion gold,Immersion Tin, OSP(Entek) |
3 | Base Material | Polyimide(Kapton), Polyester(PET), FR4 |
4 | Soldering Thermal Resistance | 300°C/10 seconds |
5 | Performance Test | 100% electrical and electricity performance test
|

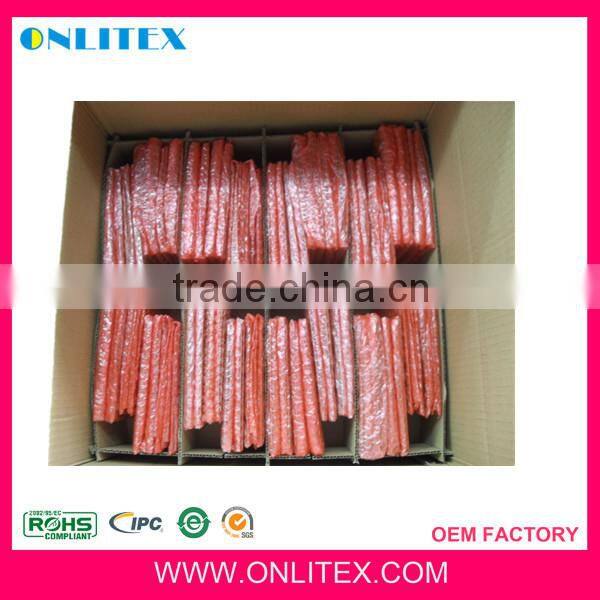

High Quality control pcba manufacturer Package: Inner packing: Vacuum Package
Outer packing: Standard Carton ( K=K) 46*46*26MM
Delivery time: 3-4weeks after received deposit
Our service |
1. Your inquiry related to our products or prices will be responded within 24 hours. |
2. Well-trained and experienced staffs to answer all your enquiries professional. |
3. OEM & ODM are welcomed, ODM brand is available. |
ONLITEX privides high quality service for the OEMs to develop and implement electronics assembly program,our services are targeted globally OEMs who wish to improve profitability,flexibility,quality and return on investment by our manufacturing operations.we ensure that clients secure maximum benefit from ONLITEX service,while minimizing and overcoming unforeseen rish and issue.
Quality Policy
- Zero defect is our goal
-Satisfying customer is our responsibility
Business Policy
-Reasonable price
-Guaranteed quality
-On time delivery
-Flexible service

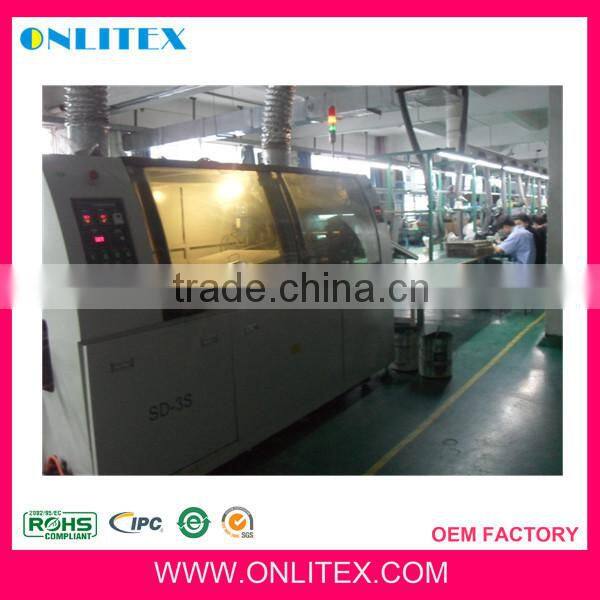

SMT& DIP Lines
Contact Us
- Dongguan Onlitex Electronic Co., Ltd.
- Contact nameAllen Shieh
- Phone86-769-86900600
- Address2-3F,Fuzhu 2ST.,Zhangyang,Zhangmutou Town Dongguan,Guangdong
