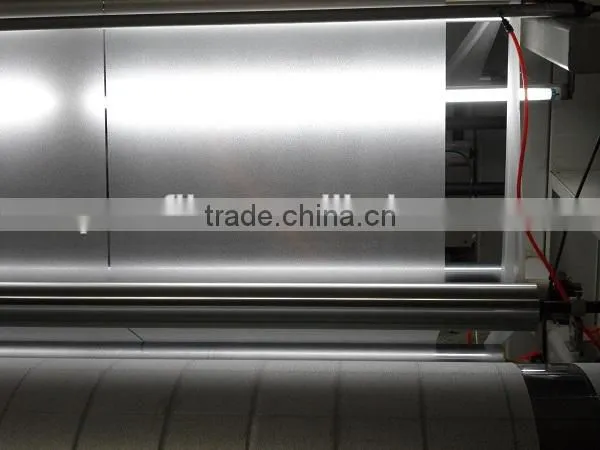

Eva Material Sheet
- qingdao
- T/T Money Gram
You May Like
Product Description
Specifications

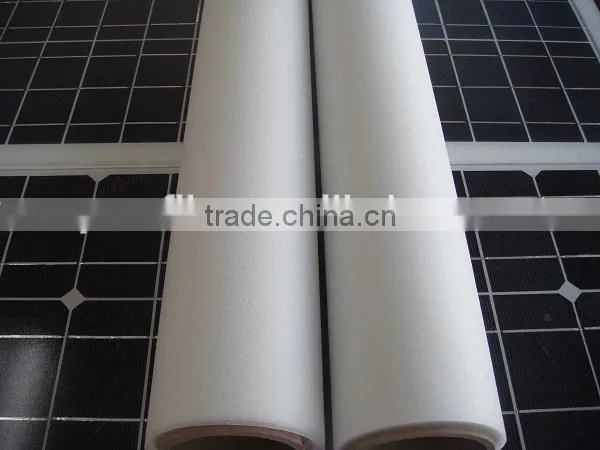

eva material sheet is a barrier, which not only stop outside harmful elements, but provide mechanical property to cell
Quick details
Appearance : embossed ,flat , translucent. Type :fast cure EVA film
VA content:31—33% Gel content:80 peel strength: ≥105N/cm
Shrinkage ratio: ≤1.2% light transmittance: ≥91.5%
Breakdown voltage:35.3KV/mm thickness:0.38mm—0.80mm
Width: ≤2.1m
Features
(1),low shrinkage ensure less crack during lamination, more quality products.
(2),high light transmittance let you have high photoelectric conversion efficiency.
(3),functional design, ideal cross linking degree ensure strength and dimension.
(4),anti—aging formulation , insulation ,UV-resistance, high and low temp resistance.

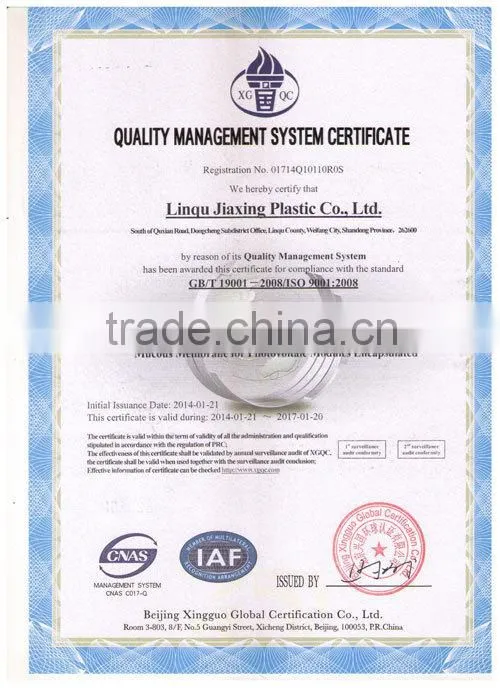

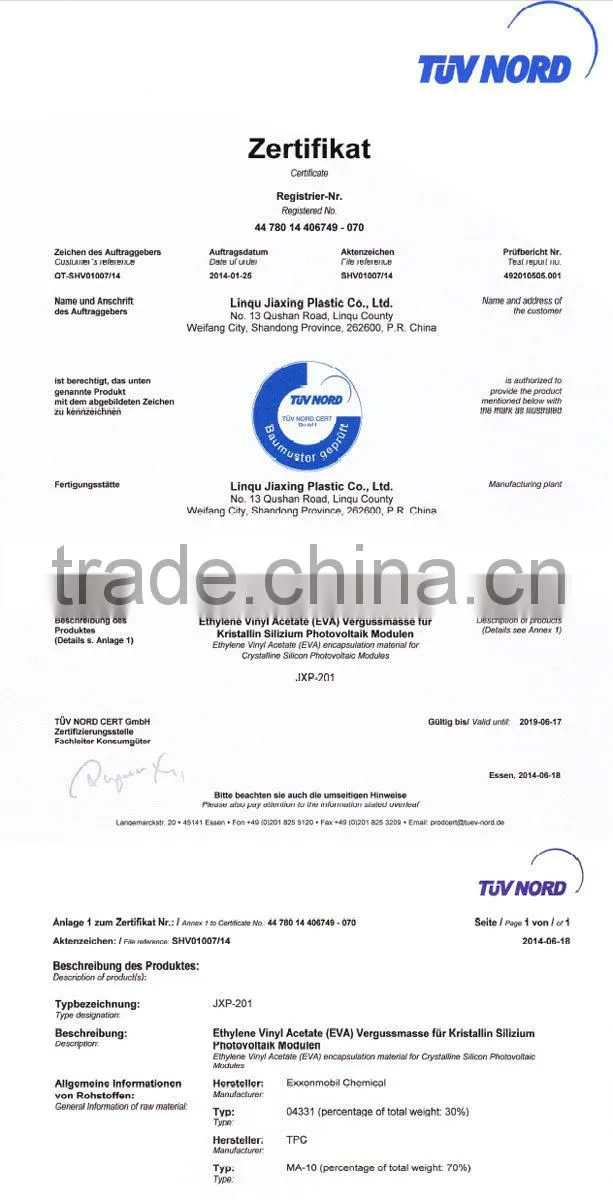

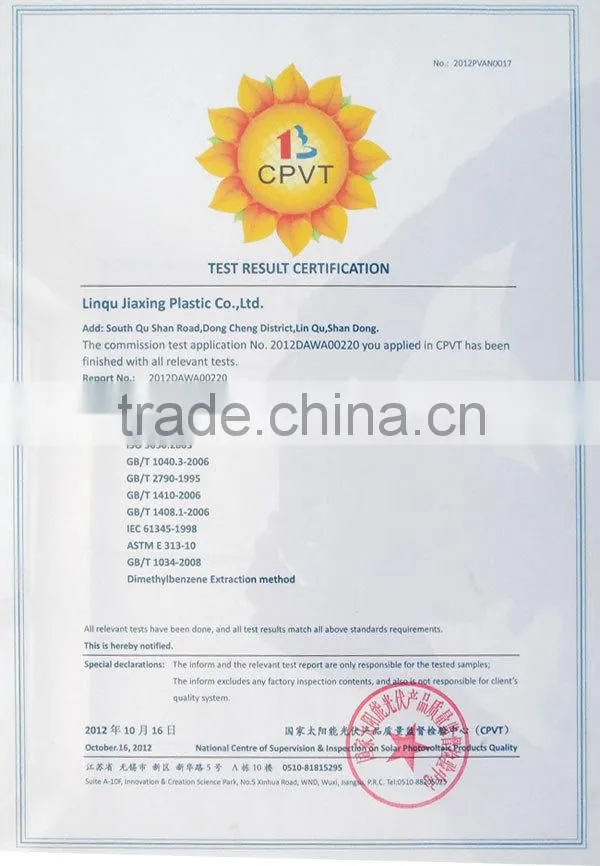

(5),passed TUV,CPVT,ISO:9001 certificate .
(6),good weatherability:25 years performance time
Technical data
NO | Testing item | unit | Test results |
1 | appearance | --- | Embossed,Surface flat,translucent,no stains,no bubbles,pattern clear. |
2 | Transmittance from 380nm to 1100nm | % | 90.7 |
3 | Total degree of cross linking | % | 79 |
4 | Tensile strength | Mpa | 20 |
5 | Elongation at a break | % | 529.5 |
6 | Shrinkage rate | % | MD:1.77 TD:0.3 |
7 | Volume resistivity | Ω.cm | 2.0*10^24 |
8 | Peel strength to glass | N/cm | 79 |
9 | Peel strength to TPT(Tedlar) | N/cn | 69 |
10 | Electrical breakdown strength | KV/mm | 35.3 |
11 | Water absorption rate | % | 0.01 |
12 | UV aging resistance test | ---- | YID:1.08 |
13 | Yellowness index Difference YID |
| <2.0 |
14 | Damp heat test | ----- | YID:1.04 |

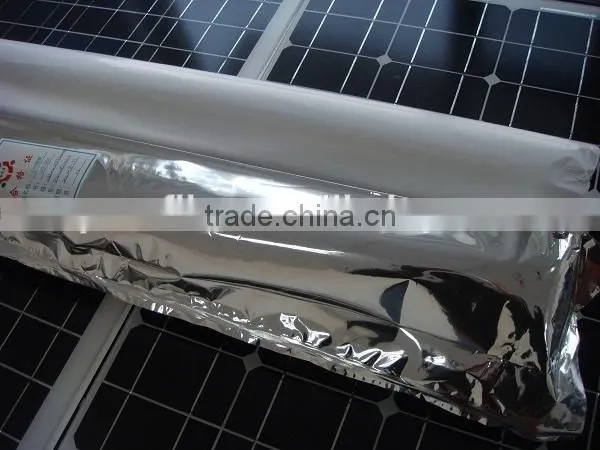

Firstly, wraped by enameled white paper and three—layer aluminized film,then into one carton and onto pallet.
5-25 days according to your quantity.
Enterprise style
what I can do for you :
(a)Reply you inquiry timely,24 hours.
(b)Technical questions consultation in English.
(c)The most competitive price performance.
(d)Professional design for free.
(e)Huge production capacity, prompt delivery.
FAQ
(1)Q:Are you a trading company or manufacturer.
A:we are a factory
(2),Q:how can I know that your product is good enough to meet our requirements.
A:(a)5 years experiences in this line, we are a supplier for export--oriented PV module maker in china.
(b)passed TUV,CPVT,ISO:9001,
(c)Free sample for testing
(d)trained and professional technician team ,after--sale service offered.
(3)Q:do you accept OEM?
A:Yes,we do
Company information

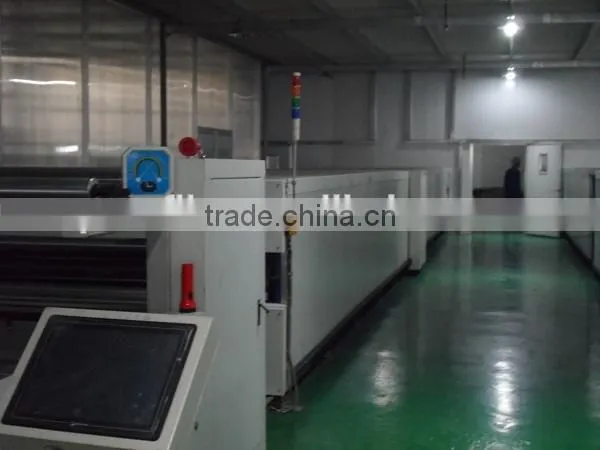

Linqu Jiaxing Plastic Co.,Ltd is one of earliest professional manufacturers of EVA film and PE protective film in northern china—Shandong province. As a supplier for many famous brand in china, we passed TUV,CPVT,ISO:9001 certificates. currently our production capacity exceeds 20000000 square meters and growing at a significant rate.
our company’s name--Jiaxing--mean prosperous,which express the wish to build win-win business relations with you.
Welcome to china, welcome to visit our factory.

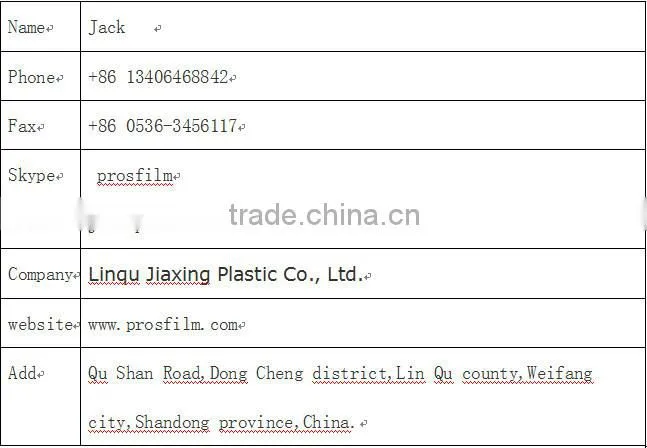

Contact us
