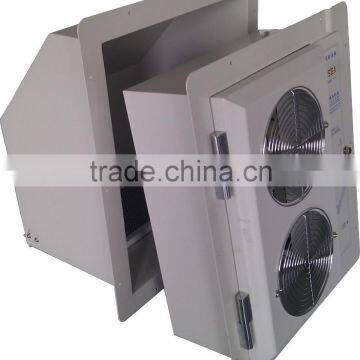

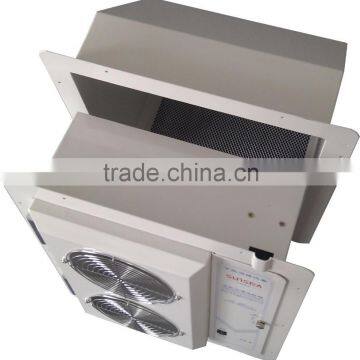

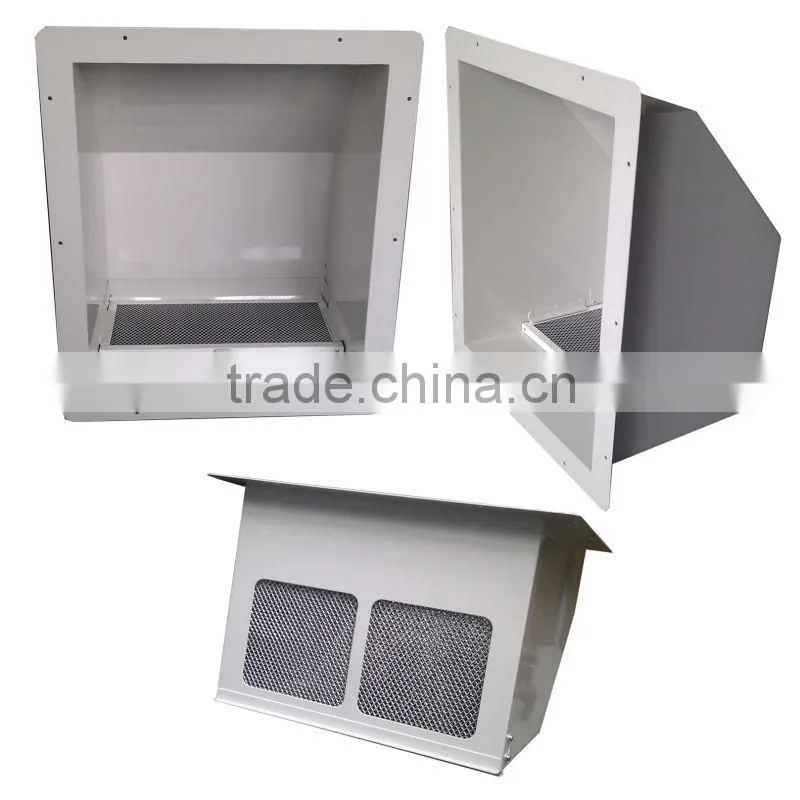

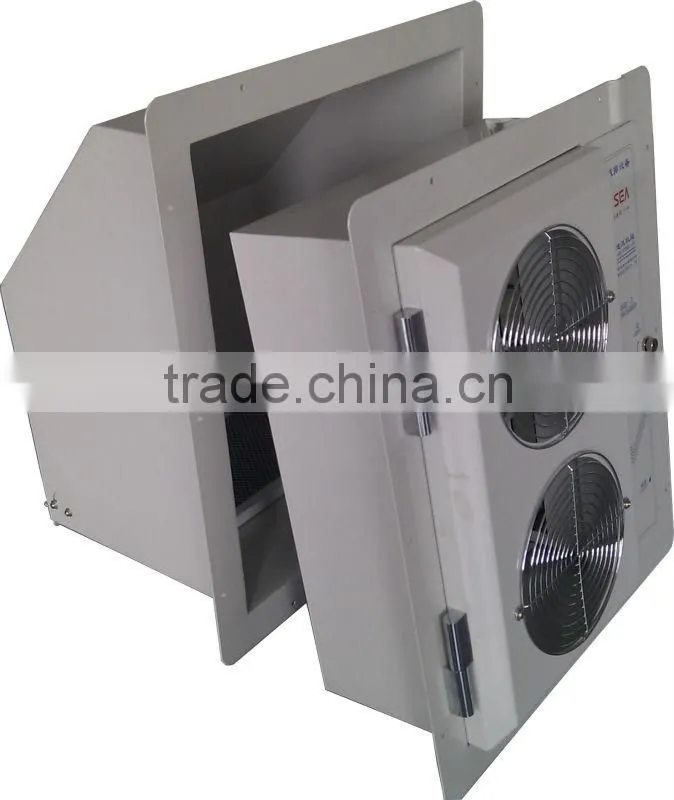

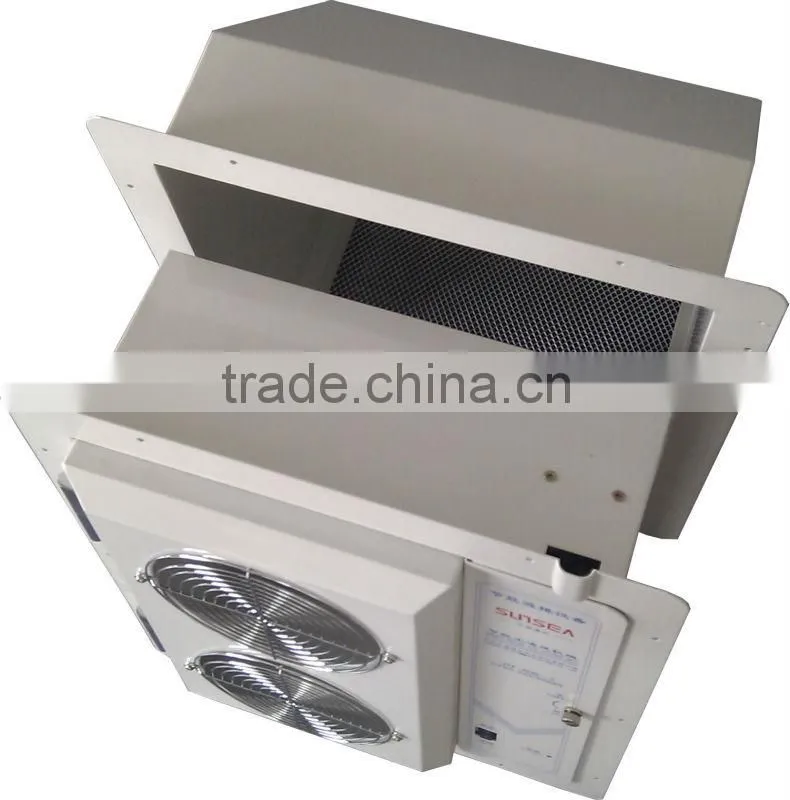

FTF2 2/2 BTS auto ventilation system

Specifications

auto air ventilation system for BTS/ communication shelter.
DC48V, axial fan, rain cover, safe-guard.
suit brick wall



 Air ventilation system can import clean and cold air to BTS or shelter to cool , and exhaust hot air. And it can work with A/C, instead of A/C for cooling in most time of year. This not only can save energy, but also can longer A/C life time.



l Use DC axial fan, can choose another type of fan with same size based on requirements.

l Suit for sandwich wall, width is between 70mm and 100m, can customize split type to suit other type of wall.

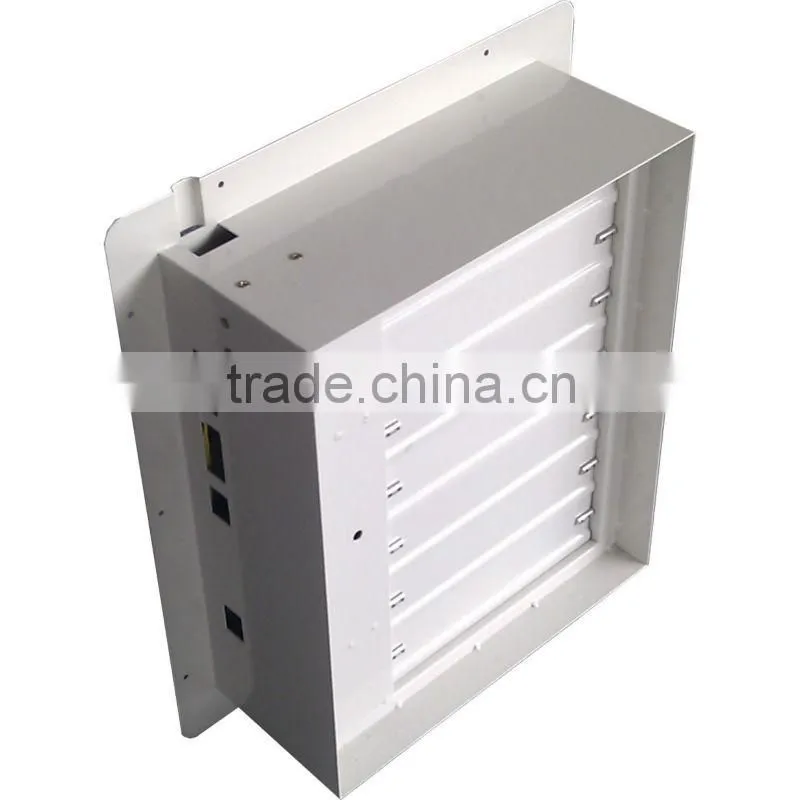

l Contains air-intake unit and air-outtake unit.

l Choose the number of fan based on size and heat release of BTS/ shelter, 2 pcs or 3 pcs or 4 pcs or 6 pcs. Ventilation of air-outtake unit shall smaller than air-intake unit to avoid negative pressure.

l Air-outtake unit can use nature exhaust method, without DC axial fan. Choose the number of exhaust hole based on requirements, 2 or 4 or 6.





Parameter	Unit	Value
Rating voltage	V	DC 48
Theory ventilation capability per fan	m3/h	400
Speed of fan	RPM	3200
Current per fan	Amp	0.4
Power per fan	W	19.2
Use life per fan @ 40°C	Hours	50000
Size per fan	mm	172x150x51
Work time of damper	number	≥100,000
Ventilation efficiency	%	≥65
Switch time for two groups of fan	Hours	3
Fan work together temp.	°C	43 or 48 (programmable)

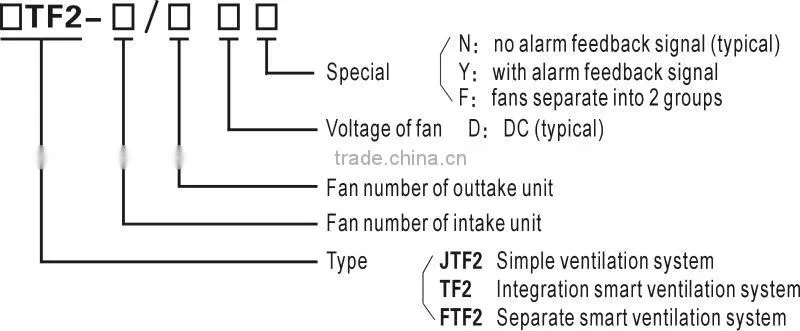

Type:

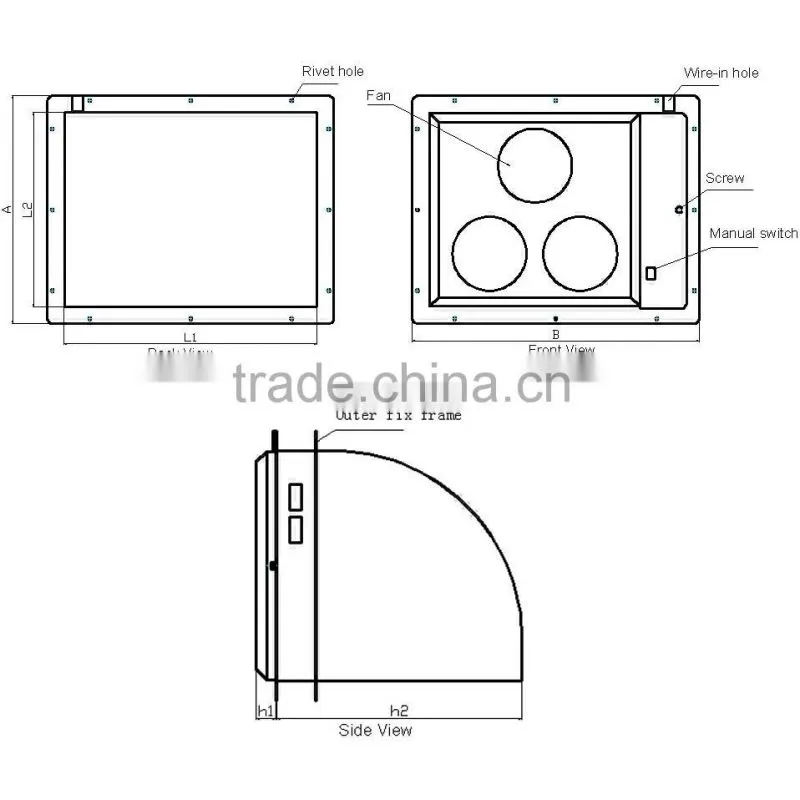

Dimension:



Number of fan	Dimension (unit:mm)
	L1	L2	A	B	h1	h2
2	320	385	452	388	34	410
3	500	385	452	568	34	410
4	500	385	452	568	34	410
6	670	385	452	738	34	410





Nature exhaust fan unit has the same size as above table.









BTS/ COMMUNICATION SHELTER
