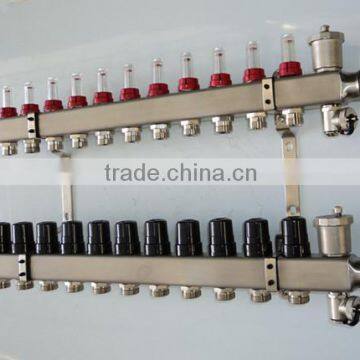

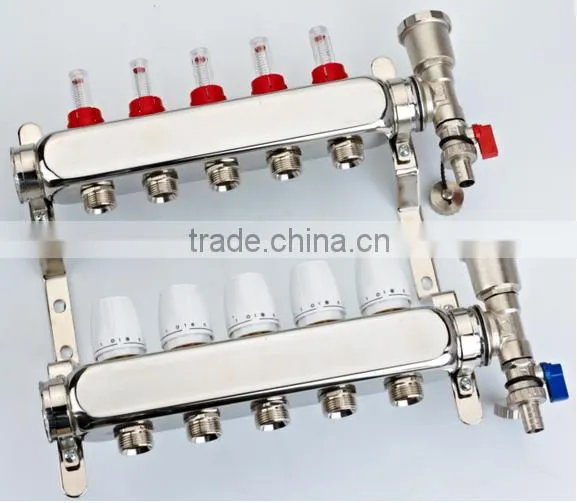

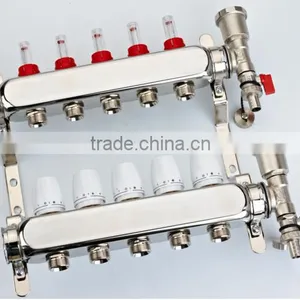

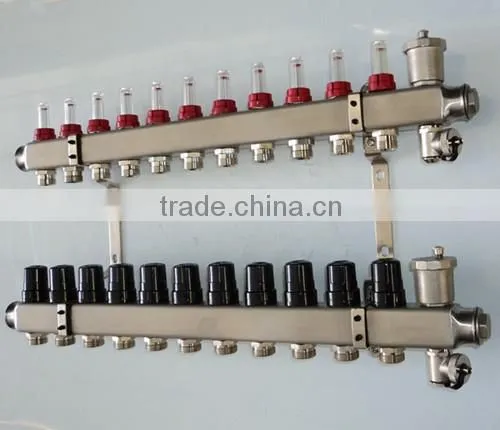

304 stainless steel intelligent manifolds for under floor heating
- Manifold is made up of the precision matched components with flat-seal connections.
- center distance is 50mm.
- Distance between supply- and return bars 200mm or 210mm according to customers' request.
- Every set of products are 100% tested for press before they leave the factory, and ensure use of
performance, big flow, small water resistance of every product.
- Good quality, competitive price.
- Specialized in Manufacturing and Supplying a wide range of Manifold.
- Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Technical data
| Technical parameters | |
| Sub tube amount | ’2--13 |
| Max working temperature | 95°C |
| Max working pressure | 1.25MPa |
| Sub branch distance | 50mm/55mm |
| Square main rod height | 40mm*40mm |
| Wall thickness of main tube | 1.6mm |
| Diameter of sub branch | G-3/8" G-1/2"(20X1.5) |
Applications:
Radiant floor heating systems for individual or commercial usage.
Snow melting systems for driveways, walkways; Roof deicing
applications.
Our Competitive Advantages:
1. Our company has the best engineer in the world, so we have the best tecnology..
Full of specification, satisfies the customer’s request.
2. All products are approved by ISO9001 and CE approved .
Rigorous design, precise manufacture, 100% quality safeguard.
3. We can produce the floor heating system products according to our customer’s requirement,
and if the order is large , we don’t charge any mould/tool fee .
1/2" PE-RT/PEX adapters are included by default. For other size
adapters (free upgrade).
6-branch Radiant Heat Manifold Set with1/2" PE-RT/PEX adapters (Supply
and Return pair).
Including 1/2" PE-RT/PEX manifold adapters.
This set is typical for radiant floor heating applications in area with
a total of 125- 155 sq. Meters of space, when used together with 1/2''
PE-RT/PEX tubing.

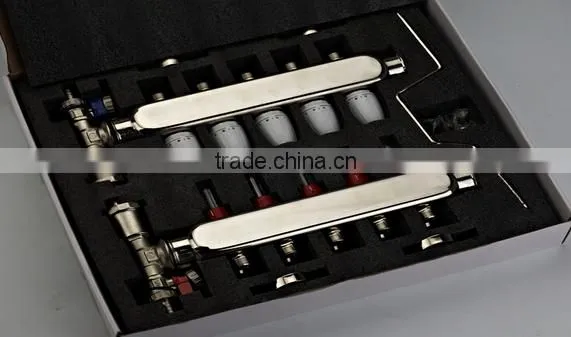

Comes pre-assembled and the following components are optional:

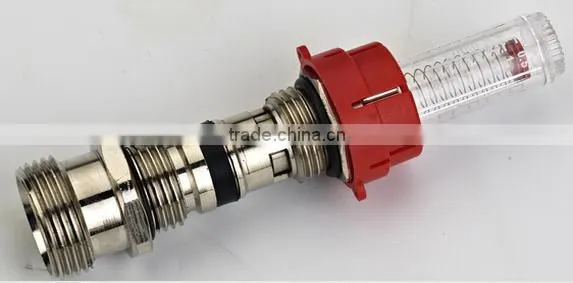

(1)Supply side stainless steel PE-RT/PEX manifold w/ (6) adjustable
flow meters
(indicators) and (6) PE-RT/PEX tubing outlets.
Flow meters allow to monitor the flow of water through every manifold's
branch.
(1) Return side stainless steel PE-RT/PEX manifold w/ (6) balancing
valves and (6)
Outlets for PE-RT/PEX tubing.
Balancing valves allow to balance the radiant heating system and are
used to regulate the flow of water through manifold's branches.
(2)Shut-off ball valves (1/4-turn) color coded handles and built-in
replaceable
Thermometers. - one for supply manifold and one for return.
Allow to service the system and monitor supply (incoming) and return
(outgoing) water temperatures.
(2) Temperature gauges on both manifolds to monitor supply and return
water temperatures.

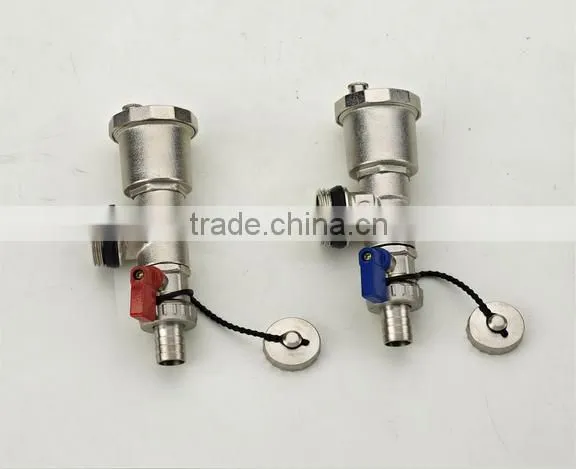

(1)/(2) Air vents to eliminate air from the system.
Air vent are used to eliminate the air from the radiant heating system,
prevent air traps and enhance overall performance.
(2) Drain/fill valves, used to purge/fill the radiant heating system.
(12) Compression-style adapters for 1/2" PE-RT/PEX tubing are included
- no purchase necessary. Other size adapters can be purchased
separately.
(2) Manifold mounting brackets with bolts.
Superior bracket design offsets the radiant heat manifolds from the
wall and allows for easy access and fast installation.
Applications:
Radiant floor heating systems:
Reinforced Concrete Slabs - garages, warehouse, storage and
manufacturing facilities);
Non-Reinforced Gypsym or Thermal Mass Slabs / Thin Slabs - radiant
heating floors in residential construction;
Staple-up Systems: Stapled to the bottom of the subfloor between joists
- with or without heat tranfer plates;
"Sandwich" Systems: Installed between the subfloor and finished floor -
with or without heat transfer plates.
Snow and ice melting systems:
Snow melting systems for driveways, walkways; Roof deicing
applications.
Technical specifications & compatibility:
Total number of PE-RT/PEX outlets: 12;
Compatible with all types and brands of PE-RT/PEX tubing
Our new Stainless Steel manifolds offer several
great features:
* Flexible, modular and singular design system
* Easy-to-assemble construction
* Precise flow control and balancing
* Fittings for both PEX and Onix radiant tubing
* Control for hydronic floor heating, fan coil
heating, or baseboard heating
* No sealant, no teflon
Stainless Steel manifolds are sold in 1 to 12-branch pairs for
easy assembly in the field. They are 1" AISI 304 Stainless
Steel and can handle up to 12 gpm. Manifold sections are
easily connected together, if more circuits are required.
Simply thread two sections together with the use of
1" manifold coupling and tighten. Make sure the gasket is
installed prior to assembly.
Features:
1-1" and 1 1?4" manifold offering
2-Competitively priced metal alternative
3-Corrosion-resistant, stainless-steel barrel
4-NPT-threaded ball valve for easy, cost-effective transition
5-Balancing and isolation valves for complete loop isolation
6-Compatible with all glycols used in radiant heating and
cooling systems
7-Integrated, full-port ball valves with temperature gauges
8- Integrated flow meters for simple system balancing
9-1" manifold features 1.5 gpm flow meters
10- 1 1?4" manifold features 2 gpm flow meters
11-Temperature/Pressure ratings:
12- 68°F (20°C) at 145 psi
13- 158°F (70°C) at 87.4 psi
14- 194°F (90°C) at 43.8 psi
15-Pre-assembled and ready to install right out of the box
