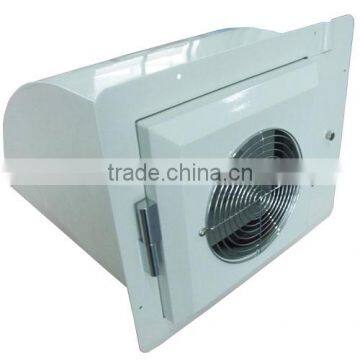

DC48 Auto Ventilation System

JTF2 1/1 DC48 auto ventilation system is our new product, with many features.

import clean and cold air to BTS or shelter to cool the equipments in BTS or shelter, and exhaust hot air. And it can work with A/C, instead of A/C for cooling in most time of year. This not only can save energy, but also can longer A/C life time.

1.small size

2.auto work based on temp.

3.high efficiency

4.gravity type louver

5.insect prevention net (air outtake unit)

6.washable filter (air intake unit)

7.suit for sandwich wall (width between 7-10cm)

1.theoretically air flow: 260 CFM

2.ventilation efficiency: 80 ~ 90%

3.install hole size: 300×240mm

4.rating voltage: DC42V ~ DC57V

5.rating current: 0.8A

6.power consumption: 40W

7.noise: less than 65dB within 1.5 meters

8.install width of wall: 70 ~ 100mm

weight: 16Kg

10.suggest use area: less than 8m3

Install step:

(1) make a hole on the wall, (302x242mm)

(2) push the fan unit into the wall indoor.

(3) fix inside frame of fan unit using self-tapping screw or rivet (Φ4).

(4) use waterproof glue to fill the gap to avoid dust or water enters.

(5) push outer fix frame to the wall, and fix it with self-tapping screw or rivet.

(6) check the installation.
