Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > TF2 3/2 48V DC Telecom Shelter Cooler

TF2 3/2 48V DC Telecom Shelter Cooler

Name: TF2 3/2 48V DC Telecom Shelter Cooler
Brand: Xinjian
SKU: 103100481
Availability: InStock

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-1

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-2

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-3

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-4

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-5

TF2 3/2 48V DC Telecom Shelter Cooler thumbnail-6

TF2 3/2 48V DC Telecom Shelter Cooler photo-1

TF2 3/2 48V DC Telecom Shelter Cooler photo-2

TF2 3/2 48V DC Telecom Shelter Cooler photo-3

TF2 3/2 48V DC Telecom Shelter Cooler photo-4

TF2 3/2 48V DC Telecom Shelter Cooler photo-5

TF2 3/2 48V DC Telecom Shelter Cooler photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Xinjian

Model Number:

TF2 3/2

Contact Supplier Request Quote Chat Now

Hangzhou Xinjian Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Xinjian

Model Number TF2 3/2

Specifications

Use integration case, theftproof, mothproof, rainproof, low noise, high efficiency.

One ventilation system includes 2 unit, air intake unit and air outtake unit, each unit has a control board fixed inside. Ventilation system can be turned on by manual or automatic. If want to control the work of ventilation system automatically based on temperature, a HW11A or other model controller is needed.

User can choose model based on different requirement.

Performance Indices:
Type	FTF2
Type	800	1200	1600	2400
Number of DC direct fans	2	3	4	6
Theory ventilation	800 m³/h	1200 m³/h	1600 m³/h	2400 m³/h
Install hole size	320mm*385mm	500mm*385mm	500mm*385 mm	670mm*385mm
Shutter control mode	Use DC24V motor to drive eccentric wheel and make the pole move back and forth alternately.
Rating voltage	DC42V ~ DC57V
Current of one DC direct fan	0.4A
Lifetime of shutter	More than 1 million

Dimension of fan unit

Model	Dimension (unit:mm)
Model	L1	L2	A	B	h1	h2
TF2-800	320	385	452	388	34	410
TF2-1200	500	385	452	568	34	410
TF2-1600	500	385	452	568	34	410
TF2-2400	670	385	452	738	34	410

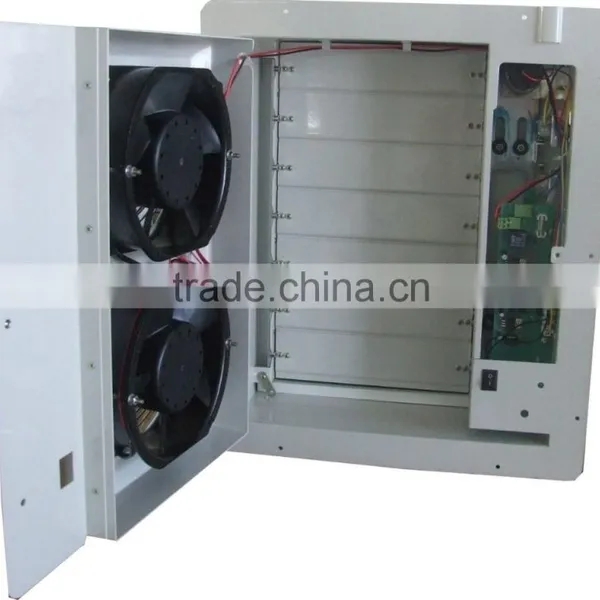

Inner side of the ventilation system

Backside of the ventilation system

Filter screen of the air-intake unit

Side face of the ventilation system

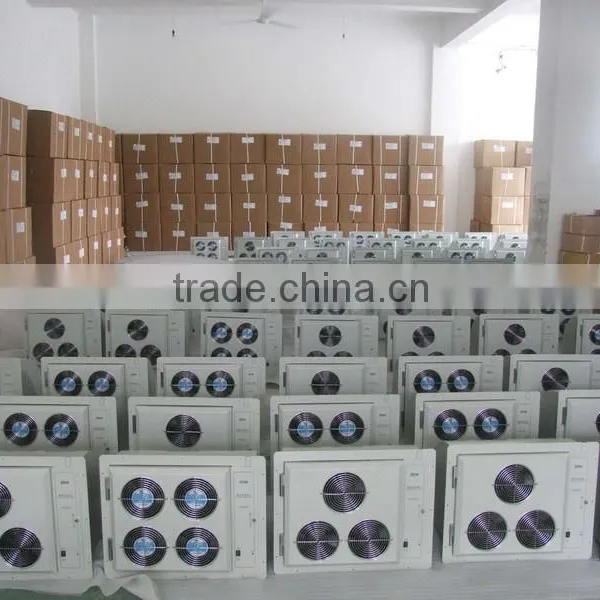

Finished products

Finished products 2

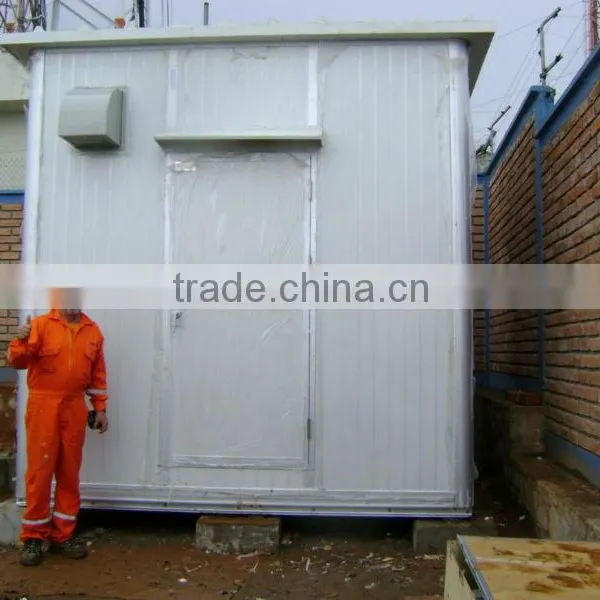

Ventilation system used on BTS

Ventalation system used on BTS 2

About us:

Hangzhou Xinjian Electronic Co., LTD. is an ISO9001 certified manufacturer, and also is a hi-tech company. It has been specialized in designing and producing industrial control solution since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We have been highly recognized not only for its good quality but also excellent after-sales services both in domestic and international market.
