One ventilation system includes 2 unit, air intake unit and air outtake unit, each unit has a control board fixed inside. Ventilation system can be turned on by manual or automatic. If want to control the work of ventilation system automatically based on temperature, a HW11A or other model controller is needed.
User can choose model based on different requirement.
Performance Indices: | ||||
Type | FTF2 | |||
800 | 1200 | 1600 | 2400 | |
Number of DC direct fans | 2 | 3 | 4 | 6 |
Theory ventilation | 800 m3/h | 1200 m3/h | 1600 m3/h | 2400 m3/h |
Install hole size | 320mm*385mm | 500mm*385mm | 500mm*385 mm | 670mm*385mm |
Shutter control mode | Use DC24V motor to drive eccentric wheel and make the pole move back and forth alternately. | |||
Rating voltage | DC42V ~ DC57V | |||
Current of one DC direct fan | 0.4A | |||
Lifetime of shutter | More than 1 million | |||
Dimension of fan unit
Model | Dimension (unit:mm) | |||||
L1 | L2 | A | B | h1 | h2 | |
TF2-800 | 320 | 385 | 452 | 388 | 34 | 410 |
TF2-1200 | 500 | 385 | 452 | 568 | 34 | 410 |
TF2-1600 | 500 | 385 | 452 | 568 | 34 | 410 |
TF2-2400 | 670 | 385 | 452 | 738 | 34 | 410 |

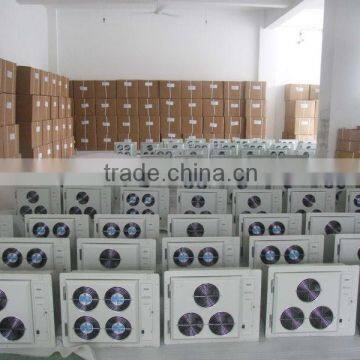

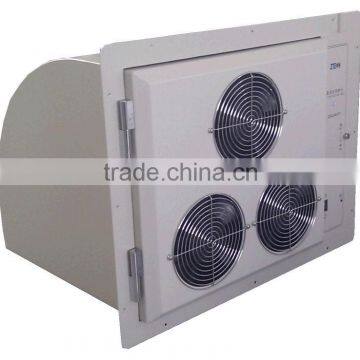

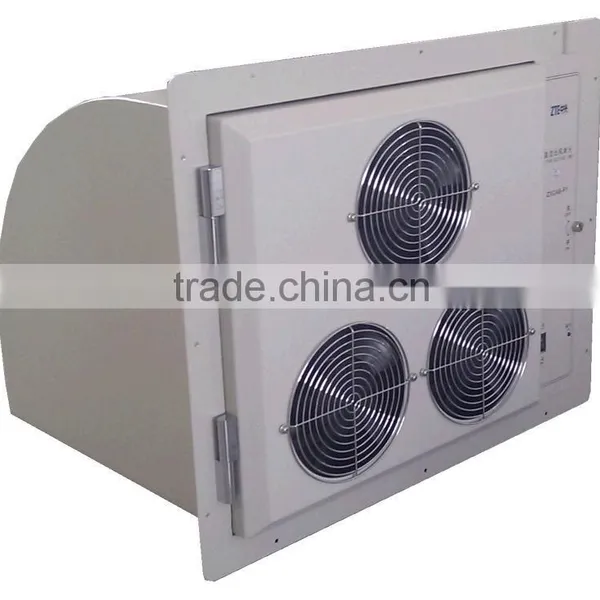

Product pictures:
