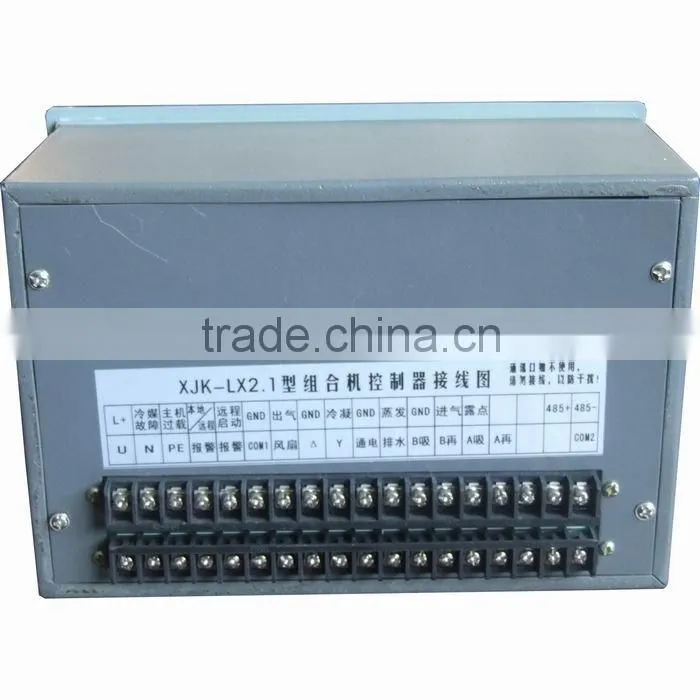

Help CenterXJK-LX2.1 Heatless Compressor Air Dryer & Refrigerated Air Dryer Controller
Related Products
-
XJK-LX2 Heated Compressor Air Dryer & Refrigerated Air Dryer ControllerNegotiableMOQ: 1 Set -
XJK-LG133 Simple Controller for Refrigerated Air DryerUS$ 30 - 35MOQ: 10 Sets
-
Blue LCD Display Refrigerated Air Dryer ControllerUS$ 300 - 400MOQ: 1 Set
-
XJK-LG10B Refrigerant Air Dryer Control PanelUS$ 25 - 30MOQ: 10 Sets
-
Simple Controller for Small Size Refrigerated Air DryerUS$ 30 - 35MOQ: 10 Sets
Specifications
Auto control the work of heatless desiccant dryer and refrigerated air dryer to get lower dew point gas.
Model XJK-LX2.1 combined compressed air dryer controller is a special controller for heatless desiccant air dryer & refrigerated air dryer, which adopts Microchip technology. It can control the drying and regeneration work of Tower A and Tower B, and the work of compressor, according to the preset parameter. It is characterized with complete functions, reliable performance, and simple operation.
We sell 600 sets at least every year, and the market share is about 60% in mainland of China. We have rich experience in design professional industrial controller.
Function: | |
Set |
Contains 4 buttons to set. |
Display |
128*64 LED (2.76'' (70mm) wide by 1.54'' (39mm) tall) and 16 pcs of LED lights to show work procedure, alarm information. |
Control |
Control the work of heatless desiccant dryer and refrigerated air dryer. |
Remote /local |
Can choose different control mode, remote control or local control |
Detect and display |
4 channel of temperature (103AT: inlet gas, outlet gas, condensation, evaporation) |
Dew point |
1 channel of dew point, 4-20 mA Dew point can take part in control to save energy |
Communication |
RS485 interface, supply monitor software free |
Alarm output |
Supply a alarm signal |
Mode set |
3 modes can be chosen: link ( control the work of heatless desiccant dryer and refrigerated air dryer together), desiccant (only control the work of heatless desiccant dryer), refrigerated (only control the work of refrigerated air dryer) |
Performance Indices: | |
Type |
XJK-LX2.1 |
Rating voltage |
AC 220V |
Installation |
Panel-mounted, the recommended panel cutout for the controller is 8.27'' wide (210mm) by 5.51'' tall (140mm). |
Time precision |
<1% in every 3 minutes |
Dew point measure range |
-80°C-20°C |
103AT measure range |
0-90°C |
|
|
Output |
10 channels of Dry contact (N.O.), contains control signal for 4 valves, 1 signal for alarm, 1 for fan, 3 for compressor energize, 1 for drain, |
Shell size |
215*145*105 |
About out company
Hangzhou xinjian electronic co., ltd is a ISO9001 certified manufacture, and also is a hi-tech company. It has been specialized in designing and producing industrial control system since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We have been highly recognized not only for its good quality but also excellent after-dales services both in domestic and international market.
